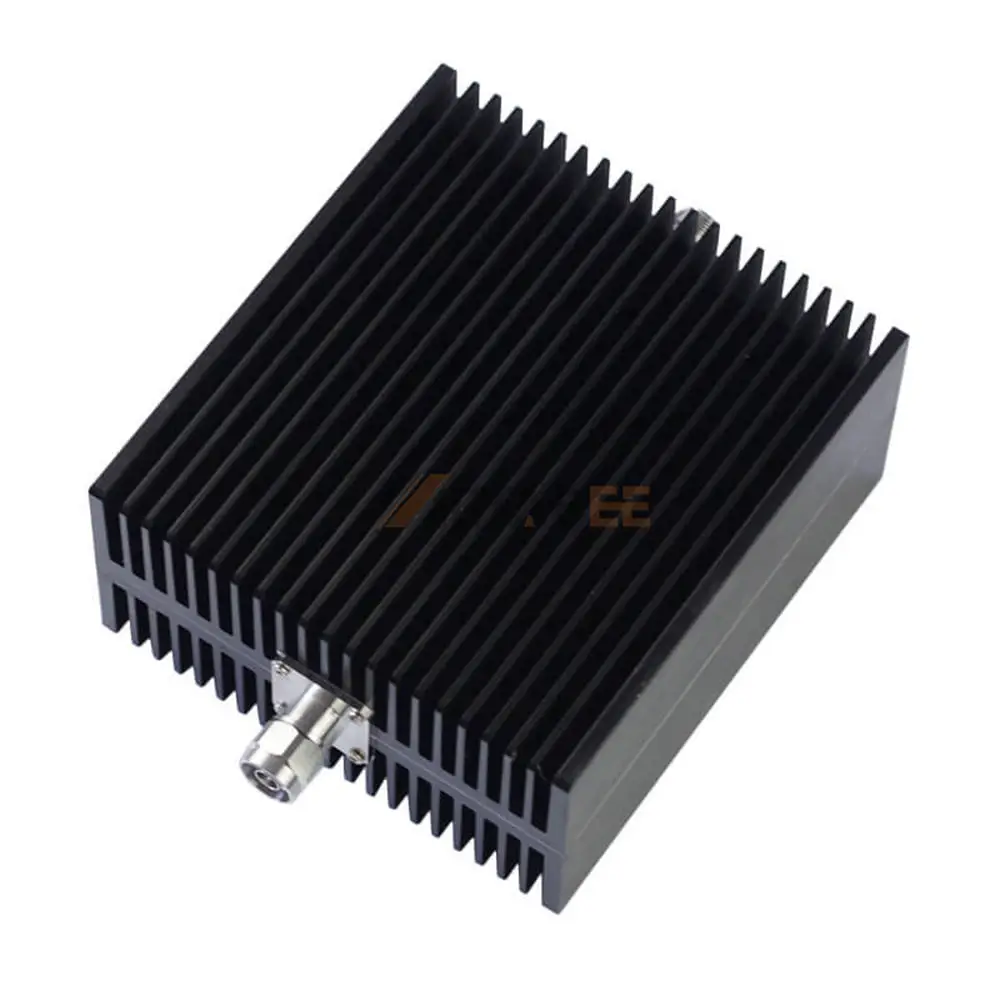

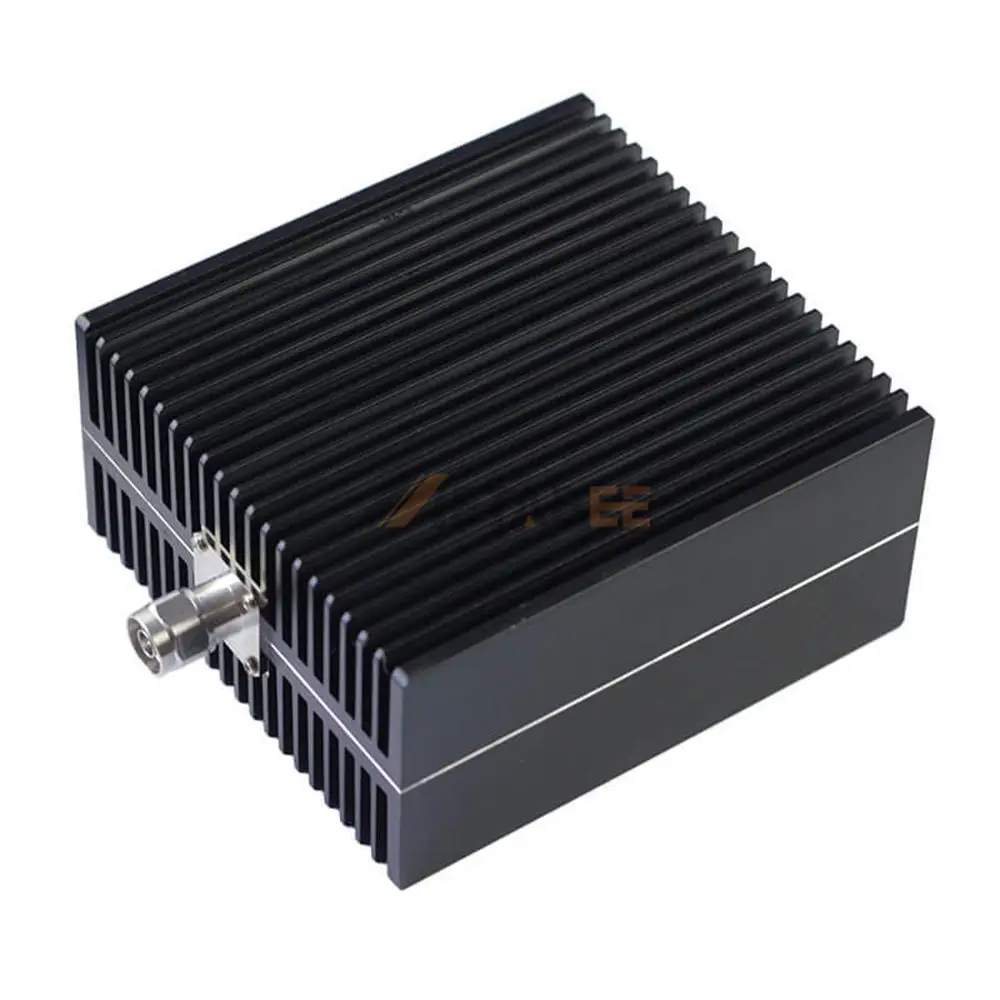

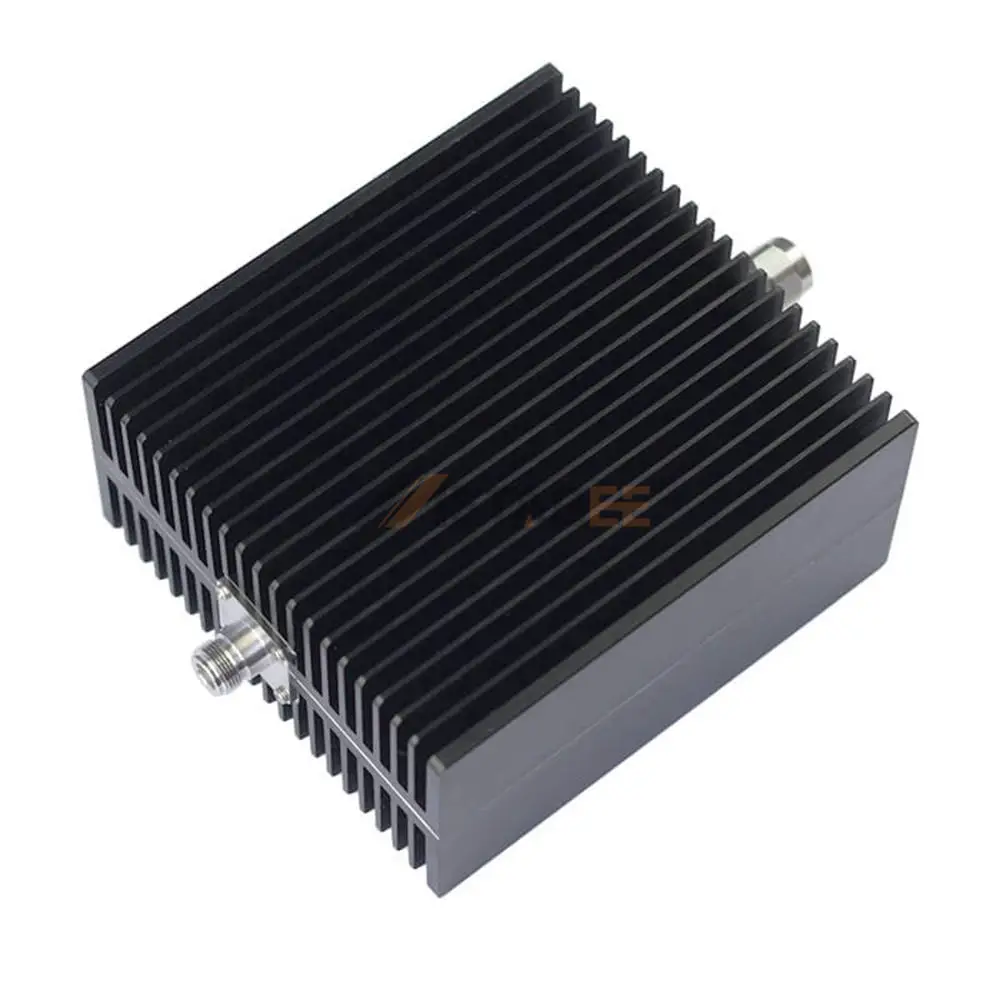

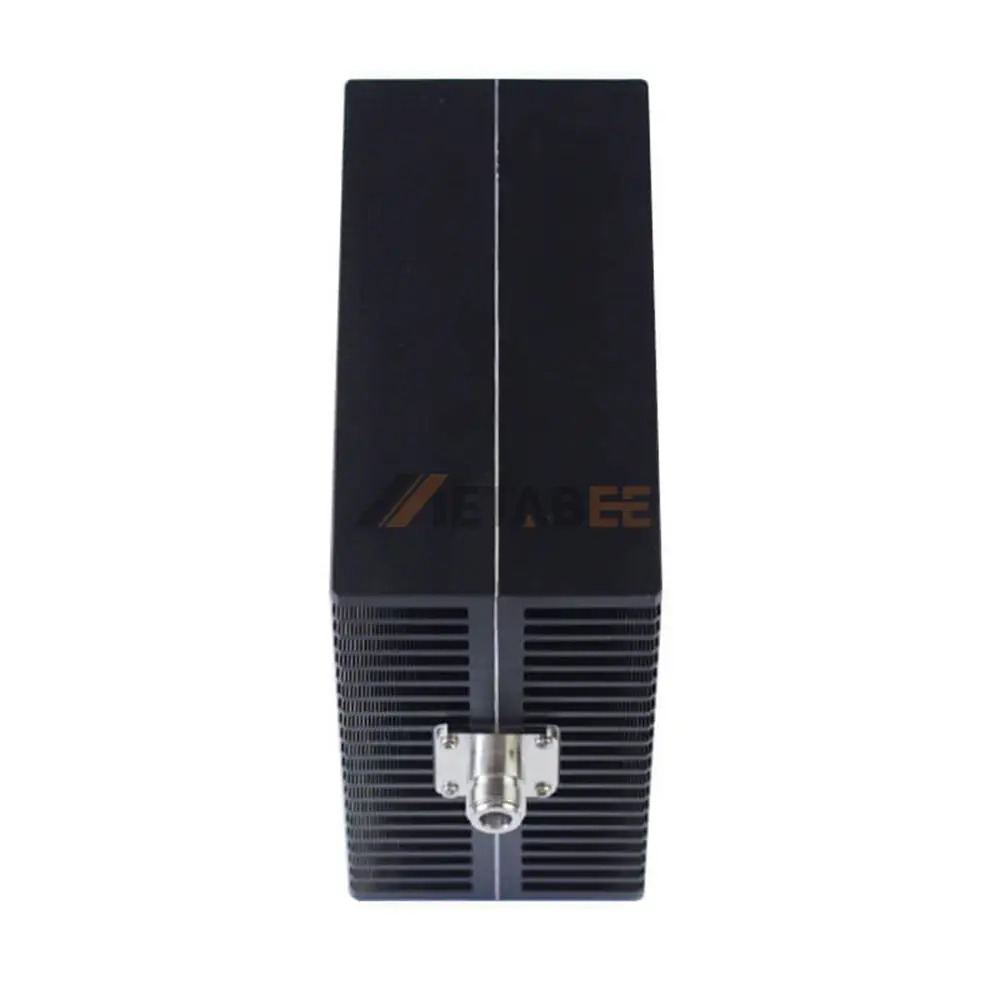

200W N-type Male to N-type Female RF Fixed Attenuator, DC to 4GHz
Introduction
The 200W N-type attenuator is engineered for high-power RF signal attenuation in professional microwave, broadcast, and communication systems. This attenuator offers reliable performance from DC to 4GHz, maintaining a stable 50-ohm impedance throughout the frequency range. With a maximum power rating of 200 watts and a VSWR of 1.20:1, it ensures excellent signal integrity and minimal reflection.
Constructed with rugged stainless steel housing and precision N-type connectors, this fixed attenuator guarantees durability in demanding environments. It is IP20-rated for dust protection and supports a wide operating temperature range from -55°C to +125°C, making it ideal for both indoor and semi-controlled outdoor installations.
Key Features:
- Frequency Range: DC to 4GHz.
- Power Handling: 200 Watts (continuous).
- Impedance: 50 Ohms.
- VSWR: ≤1.20:1 for low signal reflection.
- Connector Type: N-type male to N-type female.
- Material: Corrosion-resistant stainless steel housing.
- Operating Temperature: -55°C to +125°C with IP20 protection.
Main Specifications:
| Part No.: | 200W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 200W | |
| Attenuation: | 1DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 200W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
