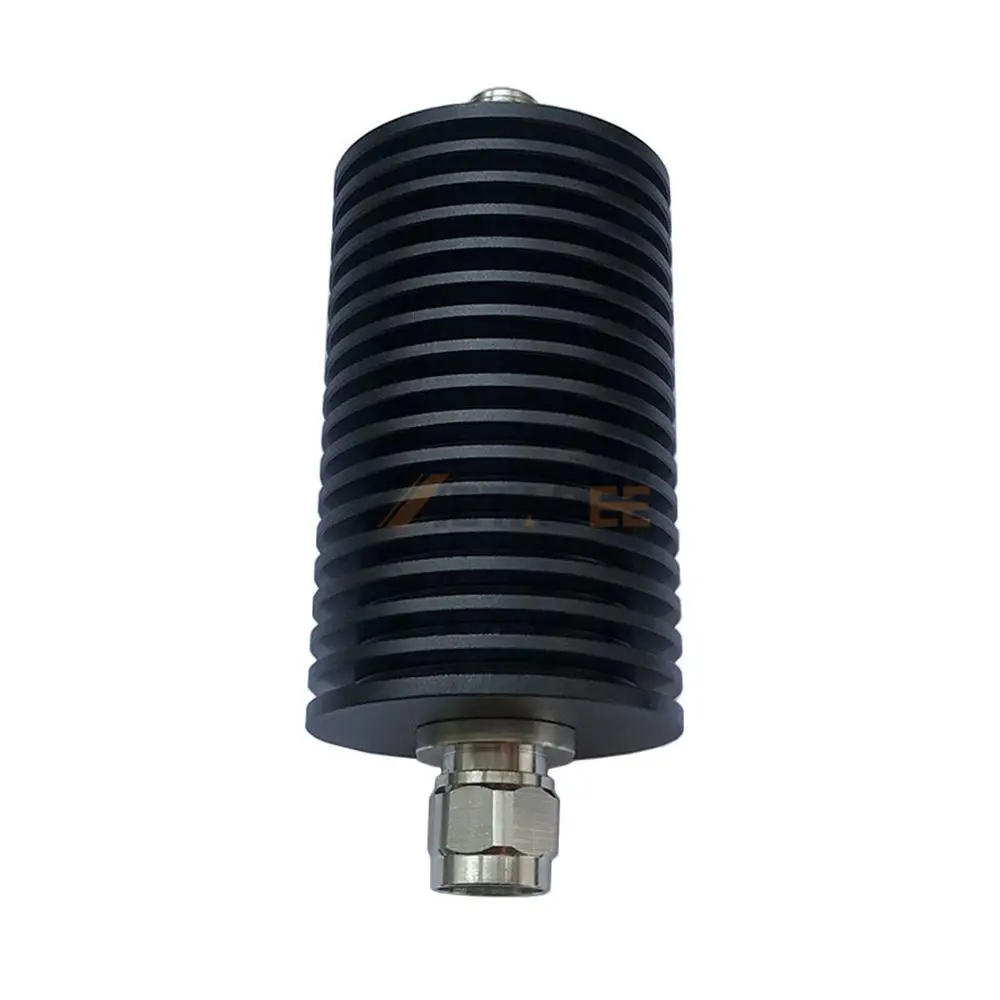

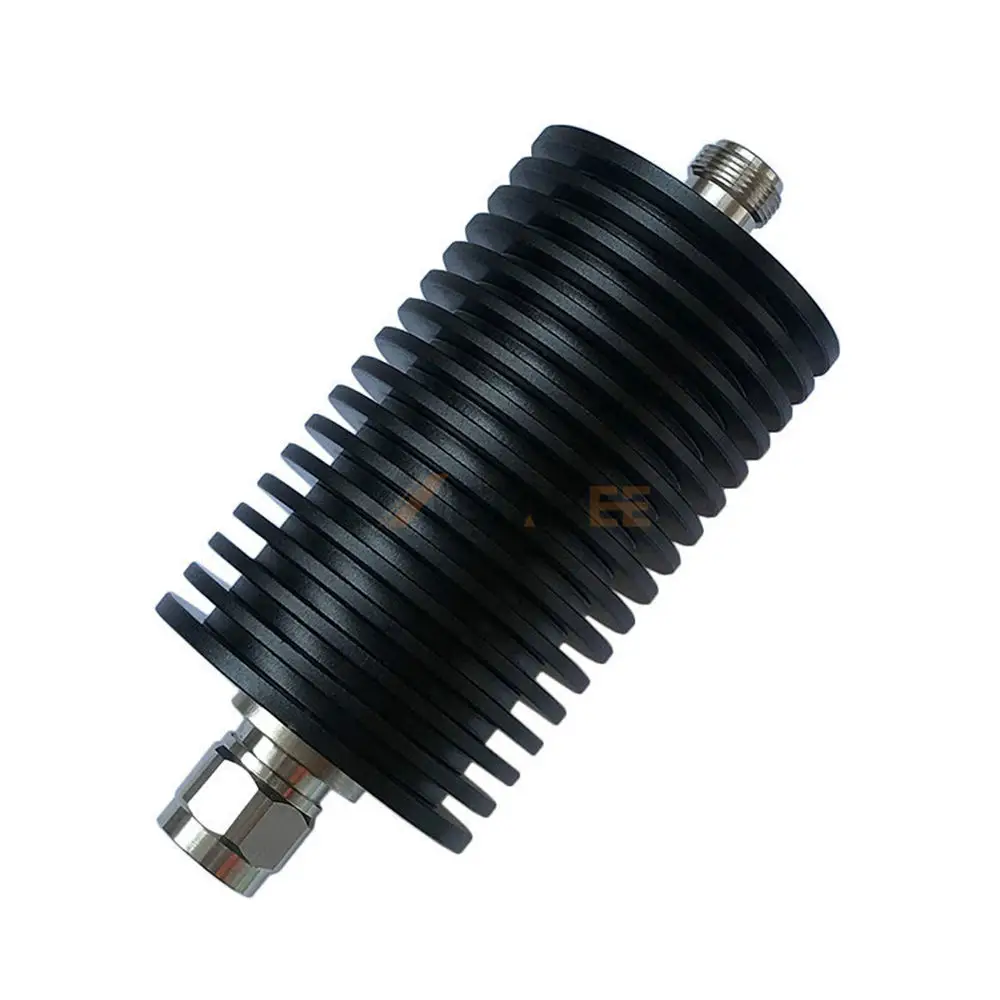

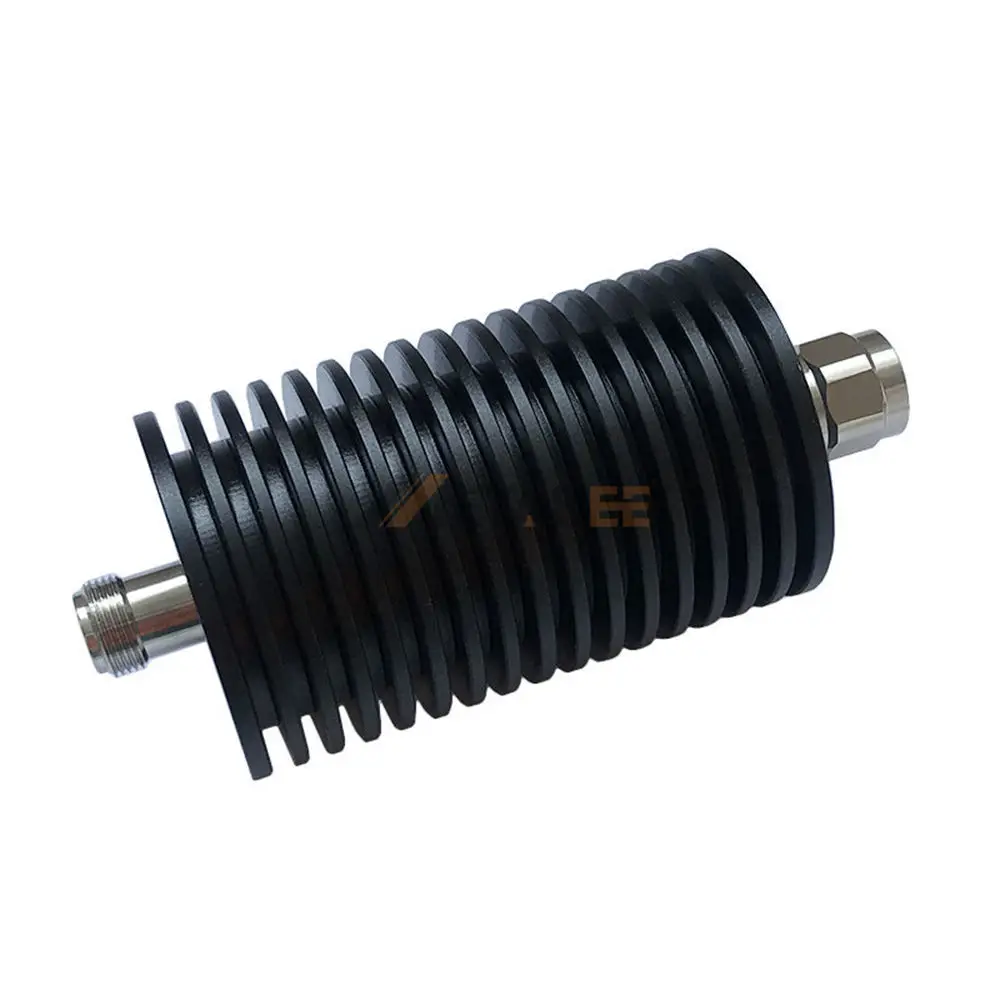

100 Watt N-type Male to N-type Female Coaxial Fixed Attenuator, DC to 4GHz, 50 Ohm
Introduction
The 100-Watt N-type attenuator is engineered for robust RF performance across a wide frequency range from DC to 4GHz. Built to handle up to 100W of continuous power, this attenuator is ideal for demanding RF and microwave applications requiring precise signal control and high power dissipation.
Featuring N-type male to female connectors with a 50-ohm impedance, this fixed attenuator ensures reliable signal integrity and a low VSWR of 1.20:1. Its copper construction provides excellent durability and corrosion resistance in harsh environments. Designed with an IP20 protection rating and a broad operating temperature range of -55°C to +125°C, this device performs dependably in both indoor and semi-controlled conditions.
Key Features:
- Frequency range: DC to 4GHz.
- Rated power: 100 Watts.
- VSWR: ≤1.20:1 for minimal signal reflection.
- 50 Ohm impedance for standard RF compatibility.
- N-type male to N-type female connectors.
- Rugged copper housing.
- Operating temperature: -55°C to +125°C, IP20 rated for protection.
Main Specifications:
| Part No.: | 100W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Copper | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Copper | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 100W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 100-Watt N-type Male to N-type Female Coaxial Fixed Attenuator, 50 Ohm:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
