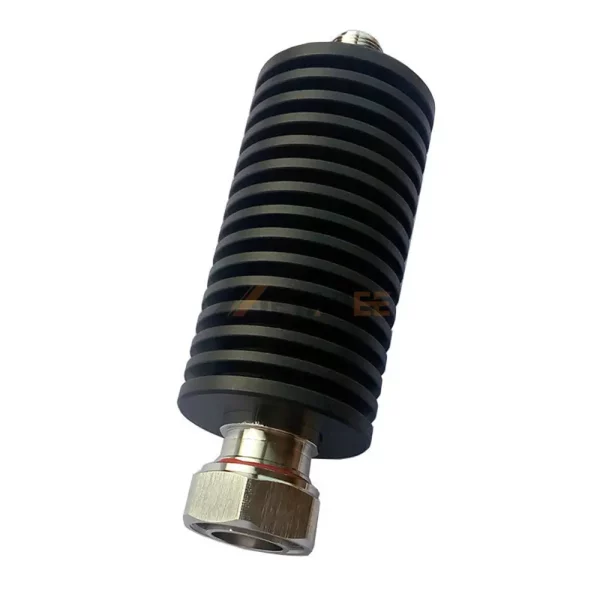

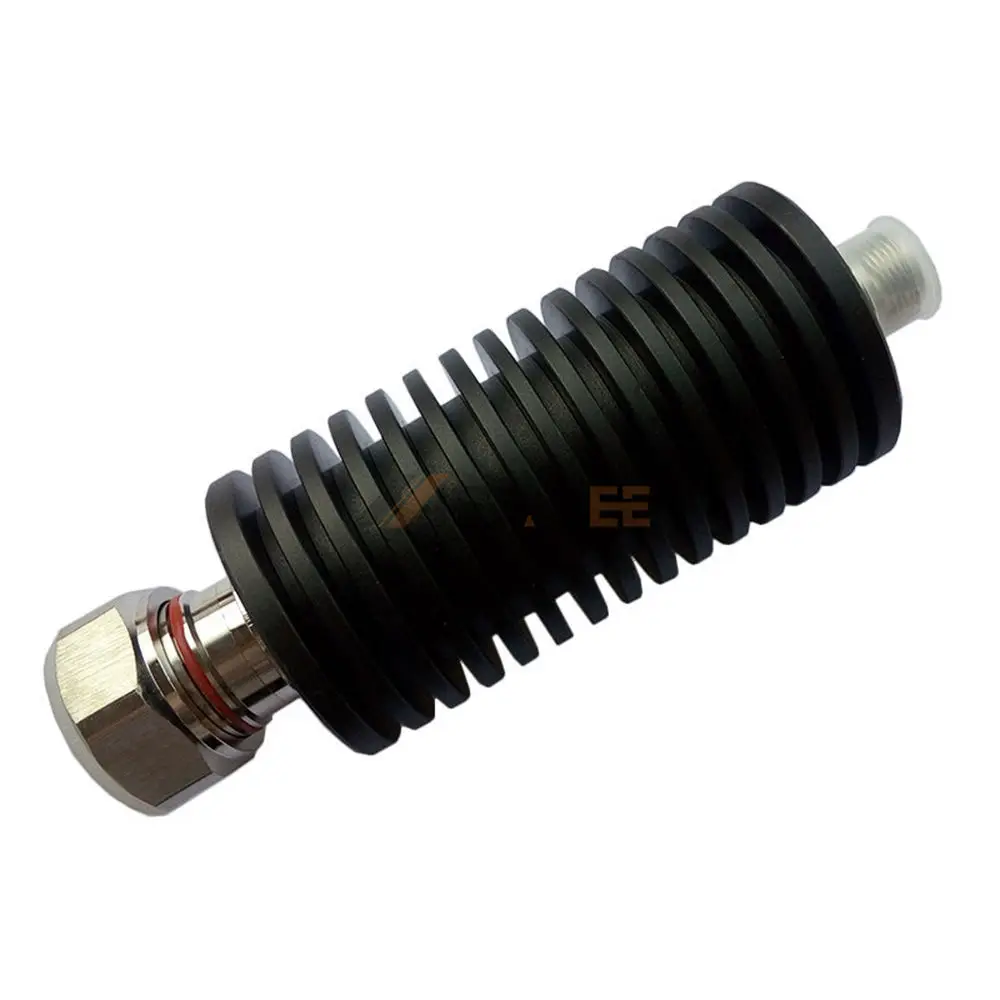

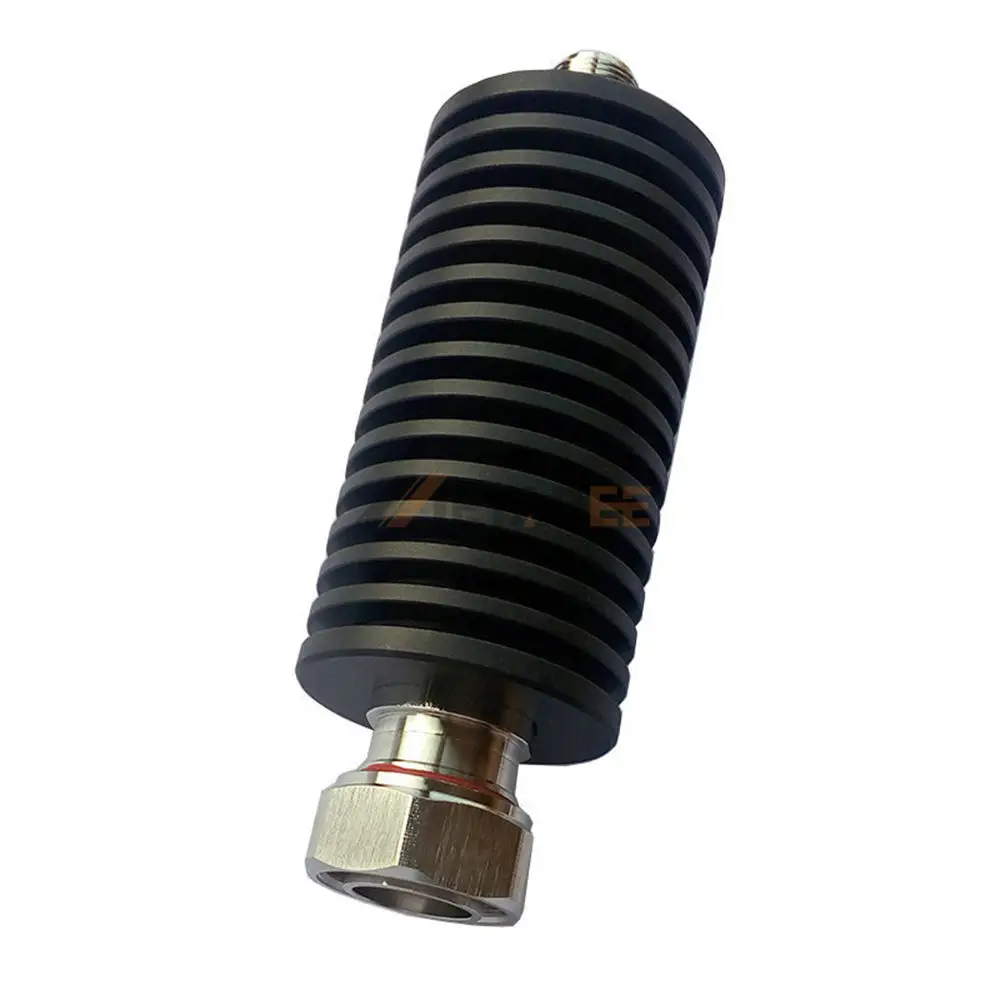

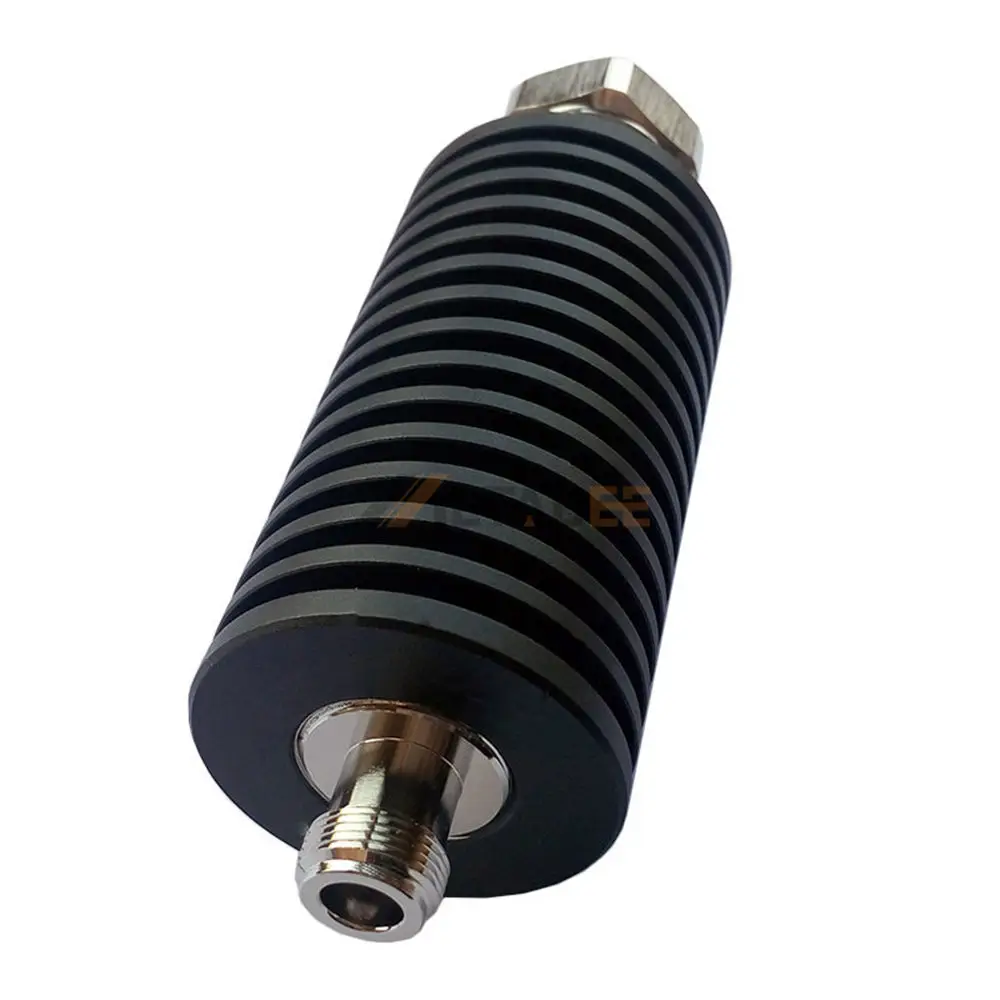

50W DIN Male to N-type Female Coaxial Fixed Attenuator, DC to 4GHz

Introduction

This 50Wt DIN attenuator is an essential component for precise signal attenuation in various RF and microwave applications. Part of our DIN Attenuator series, it’s engineered for reliable performance up to 4 GHz, making it suitable for a wide range of telecommunications, broadcasting, and test & measurement setups. The robust construction, featuring a stainless steel housing for both the DIN male and N-type female connectors, ensures durability and long-term stability, even in demanding environments.

With a characteristic impedance of 50 ohms, this attenuator guarantees optimal signal transfer and minimal reflection, boasting a low VSWR of 1.20:1. It’s designed to operate across an impressive temperature range from -55°C to 125°C, providing consistent performance in extreme conditions. While offering an IP20 ingress protection rating, it’s ideal for indoor or protected outdoor installations where dust and limited water exposure are present. This fixed attenuator provides a dependable solution for power leveling, impedance matching, and extending the dynamic range of measurement equipment.

Key Features:

  • High Power Handling: 50W power rating.
  • Wide Frequency Range: DC to 4 GHz.
  • Low VSWR: 1.20:1 for minimal signal reflection.
  • Robust Construction: Stainless steel housing for durability.
  • Standard Impedance: 50 Ohms for optimal signal matching.
  • Broad Operating Temperature: -55°C to 125°C.
  • Versatile Connectivity: DIN Male to N-type Female.

Main Specifications:

Part No.: 50W-DIN-N-JK-4G
Product Series: DIN Attenuators
Brand: Metabee
Connector 1: DIN Connector
Connector 1 – Gender: Male
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Not Applicable
Connector 2: N-type Connector
Connector 2 – Gender: Female
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Plating: Not Applicable
Power Maximum: 50W
Attenuation:  1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB
Impedance: 50 Ohm
VSWR: ≤1.20:1
Frequency(Max): 4 GHz
Operating Temperature: -55°C to +125°C
IP Rating: IP20
Other Feature: None


Applications of this 50W DIN Male to N-type Female Coaxial Fixed Attenuator:

  • Test & Measurement;
  • Telecommunications;
  • Satellite Systems;
  • Broadcast Equipment;
  • Military & Aerospace;
  • Medical Devices;
  • Wireless Networks;
  • RF Amplifiers;
  • Signal Generators.

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!

RF Attenuators
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF attenuators.
Product No.

100W-DIN-N-JK-4G

Product Series

DIN Attenuators

Product Name

50W DIN Male to N-type Female Coaxial Fixed Attenuator, DC to 4GHz

Brand

Metabee

Connector 1

DIN Connector

Connector 1 - Gender

Male

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Not Applicable

Connector 2

N-Type Connector

Connector 2 - Gender

Female

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Not Applicable

Max Power

50W

Attenuation

1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB

Impendence

50 Ohm

Frequency(Max)

0-4 GHz

VSWR

≤ 1.20:1

IP Rating

IP20

Operating Temperature

-55ºC to +125 ºC

Other Features

None
