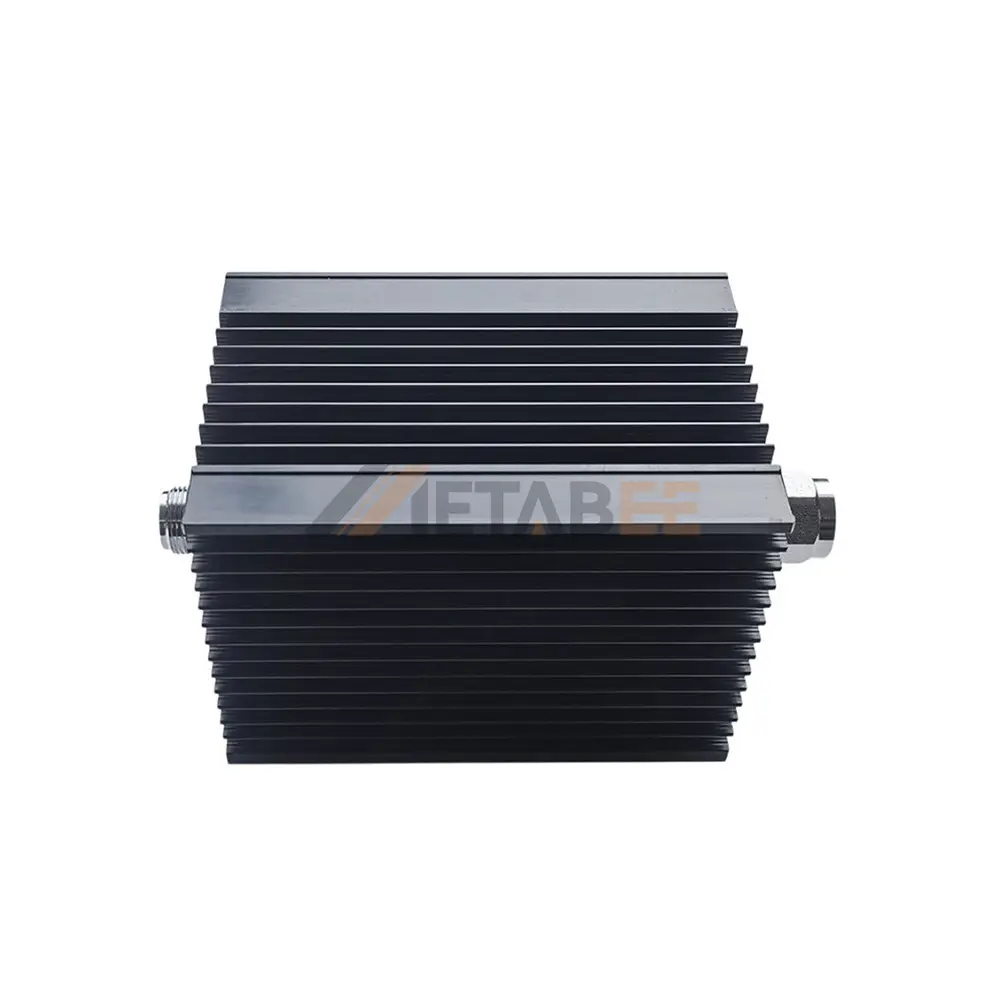

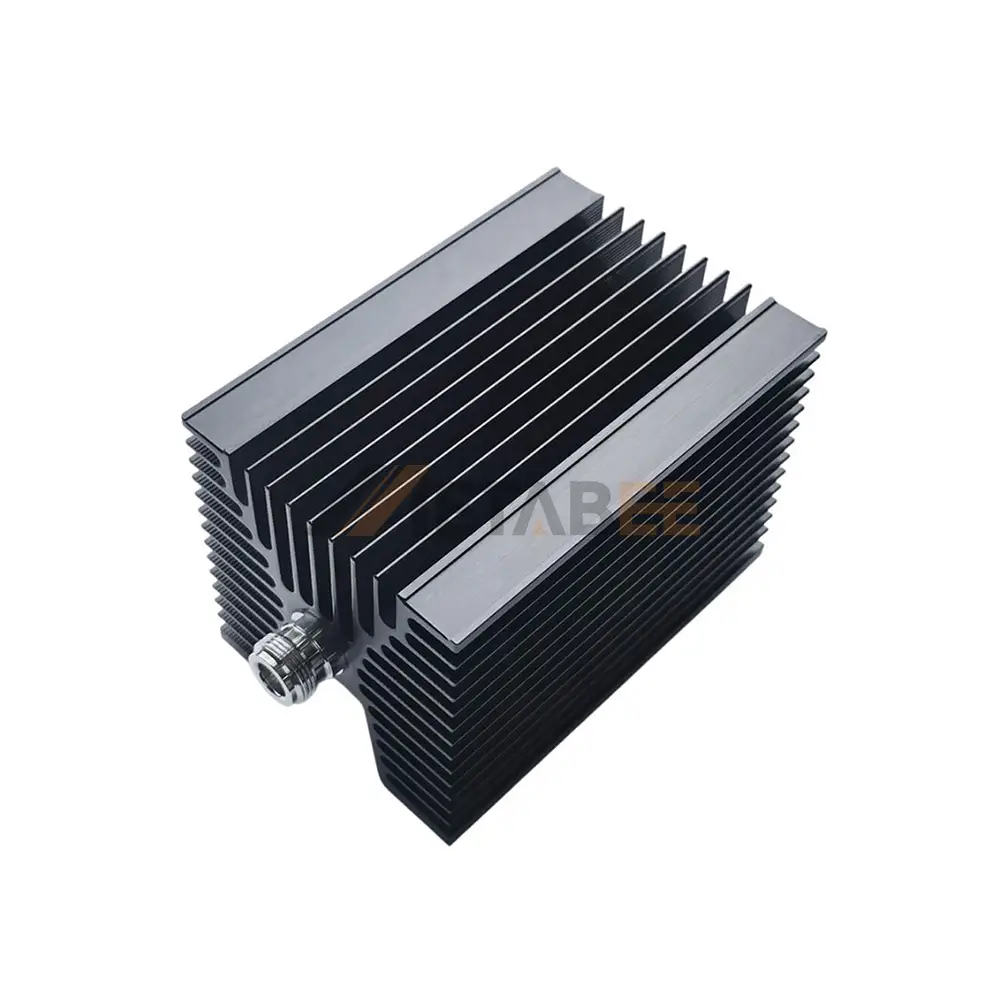

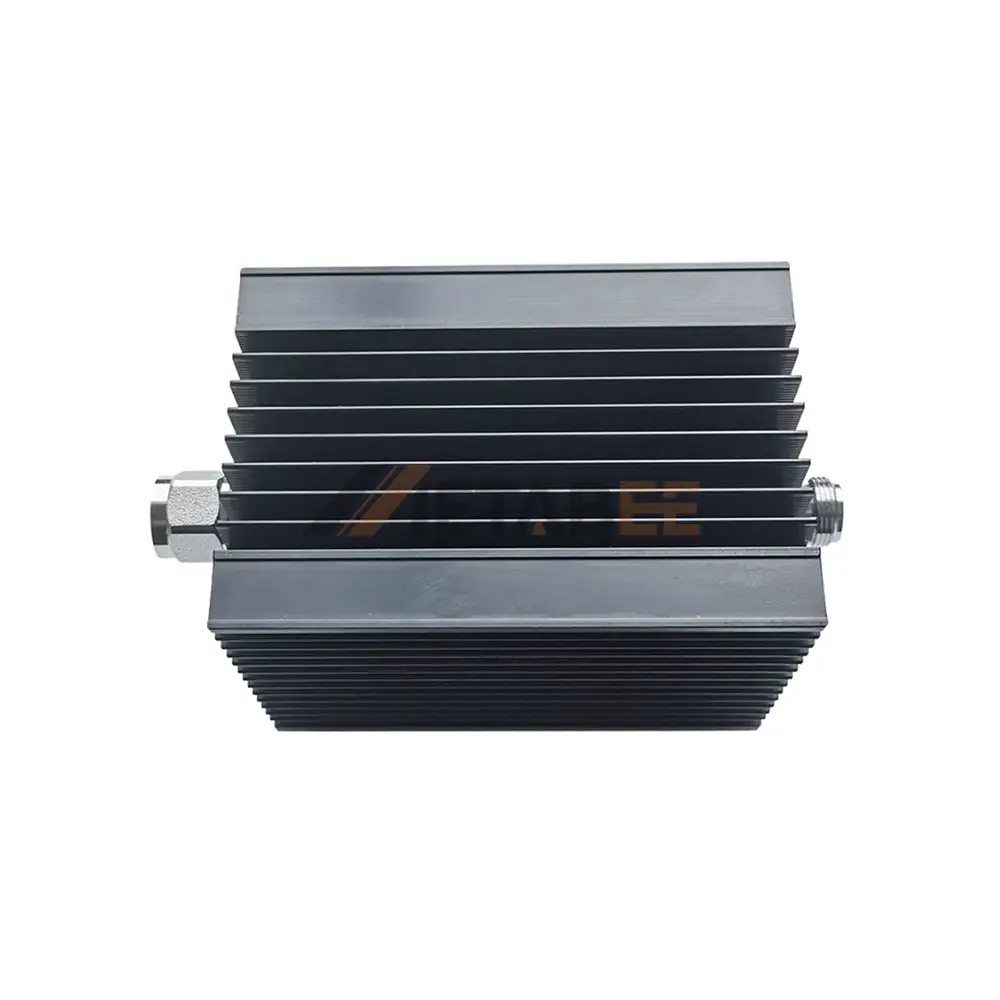

100W N-type Male to N-type Female Fixed RF Attenuator, DC to 8GHz
Introduction
The 100W N-type attenuator is a high-performance passive component designed for precise signal reduction in RF applications. With a frequency range of DC to 8GHz and a power handling capacity of 100W, this attenuator ensures minimal signal loss while maintaining excellent impedance matching at 50 ohms. The rugged stainless steel housing provides durability, and the N-type male to N-type female connectors offer secure, low-VSWR connections (1.20:1 max), making it ideal for demanding environments.
Built to withstand extreme conditions, this attenuator operates reliably in temperatures ranging from -55°C to +125°C and features an IP20 protection rating for basic environmental resistance. Whether used in telecommunications, military, or test equipment, this N-type attenuator delivers stable performance with high power efficiency and signal integrity.
.
Key Features:
- 100W power handling for high-load applications.
- DC to 8GHz frequency range for broad compatibility.
- 50-ohm impedance ensures minimal signal reflection.
- N-type male to N-type female connectors for secure connections.
- Stainless steel housing for durability.
- Low VSWR (1.20:1 max) for superior signal integrity
- Wide operating temperature (-55°C to +125°C) for harsh environments.
Main Specifications:
| Part No.: | 100W-N-JK-8G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 100W | |
| Attenuation: | 1DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 8 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 100W N-type Male to N-type Female Fixed RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
