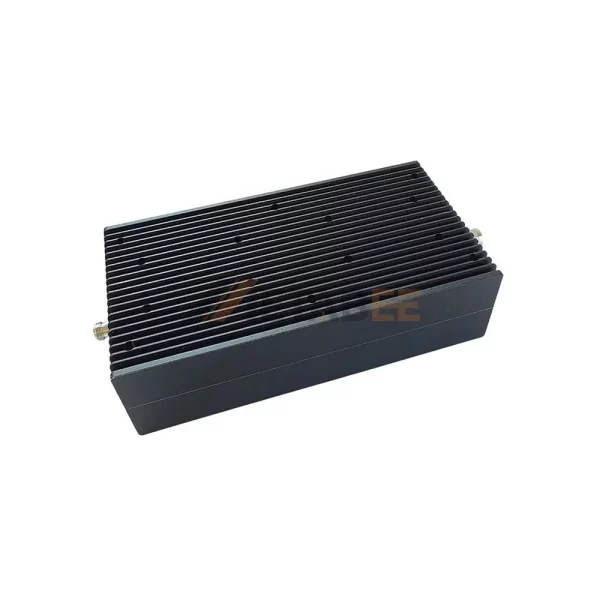

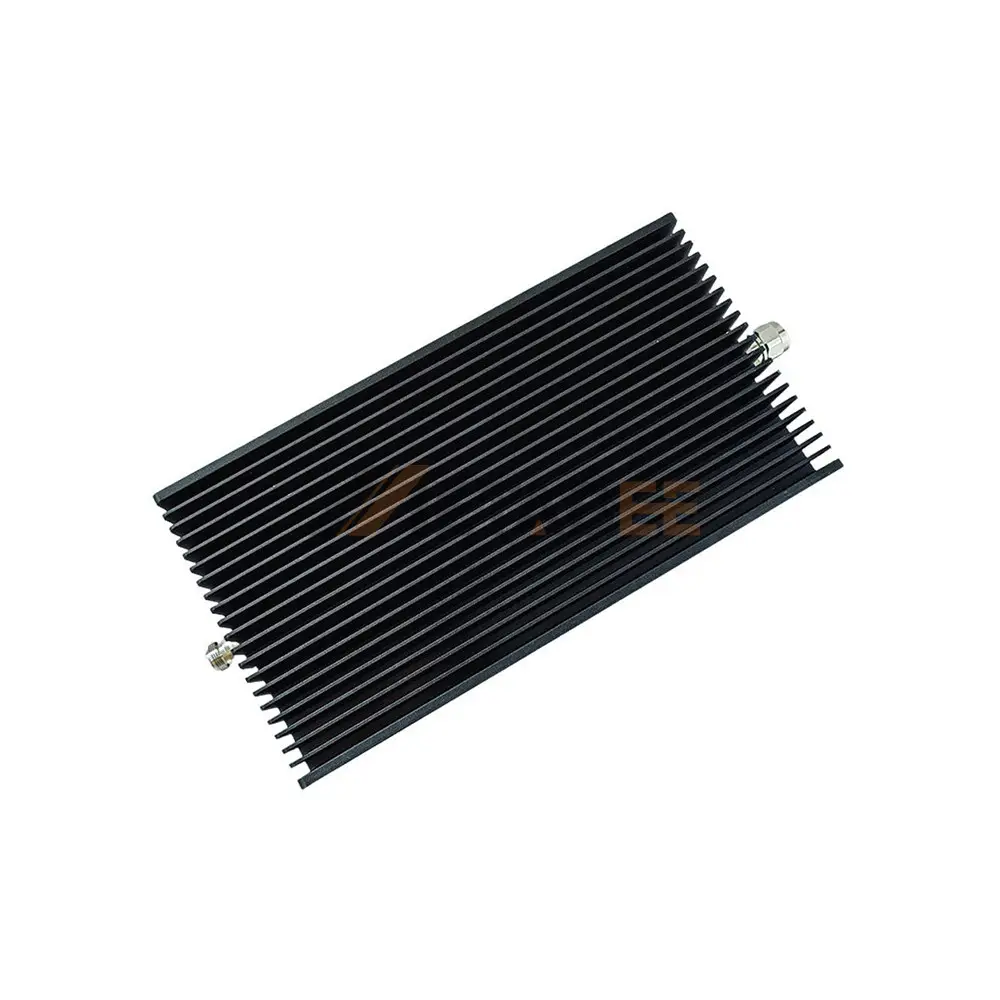

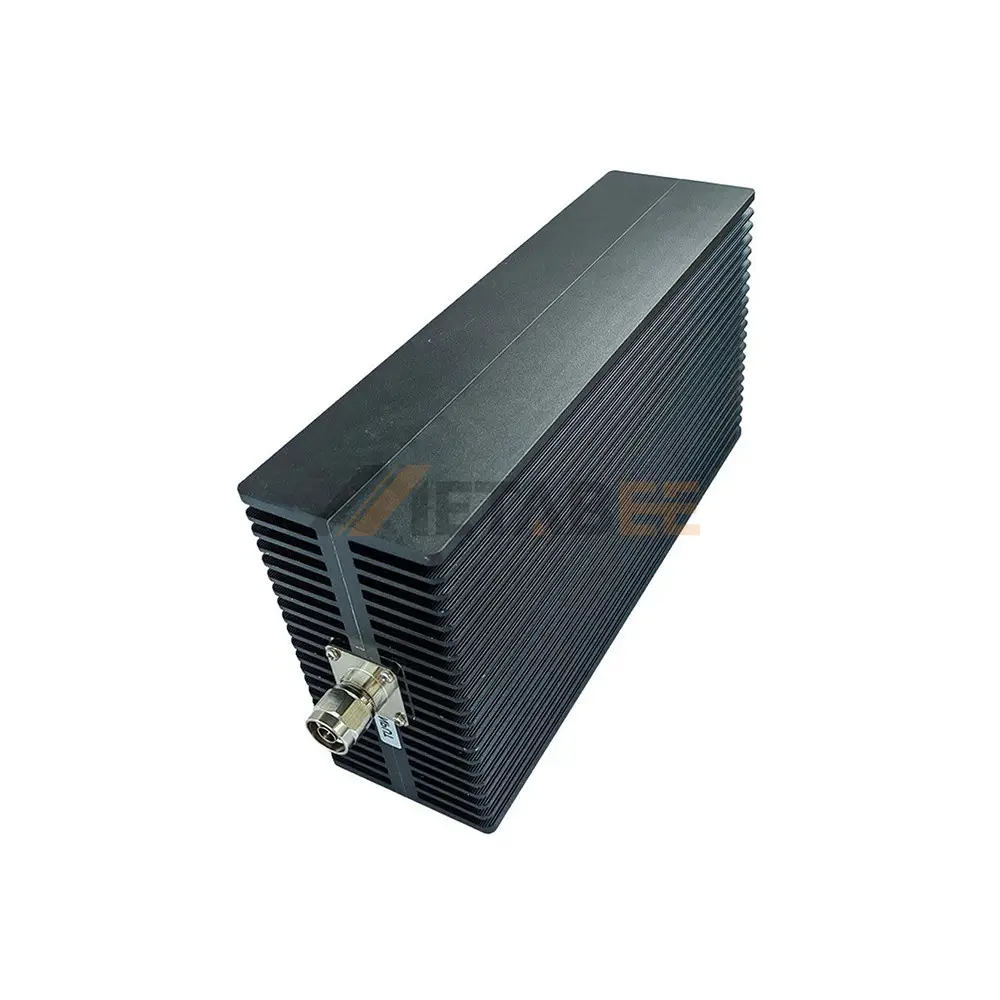

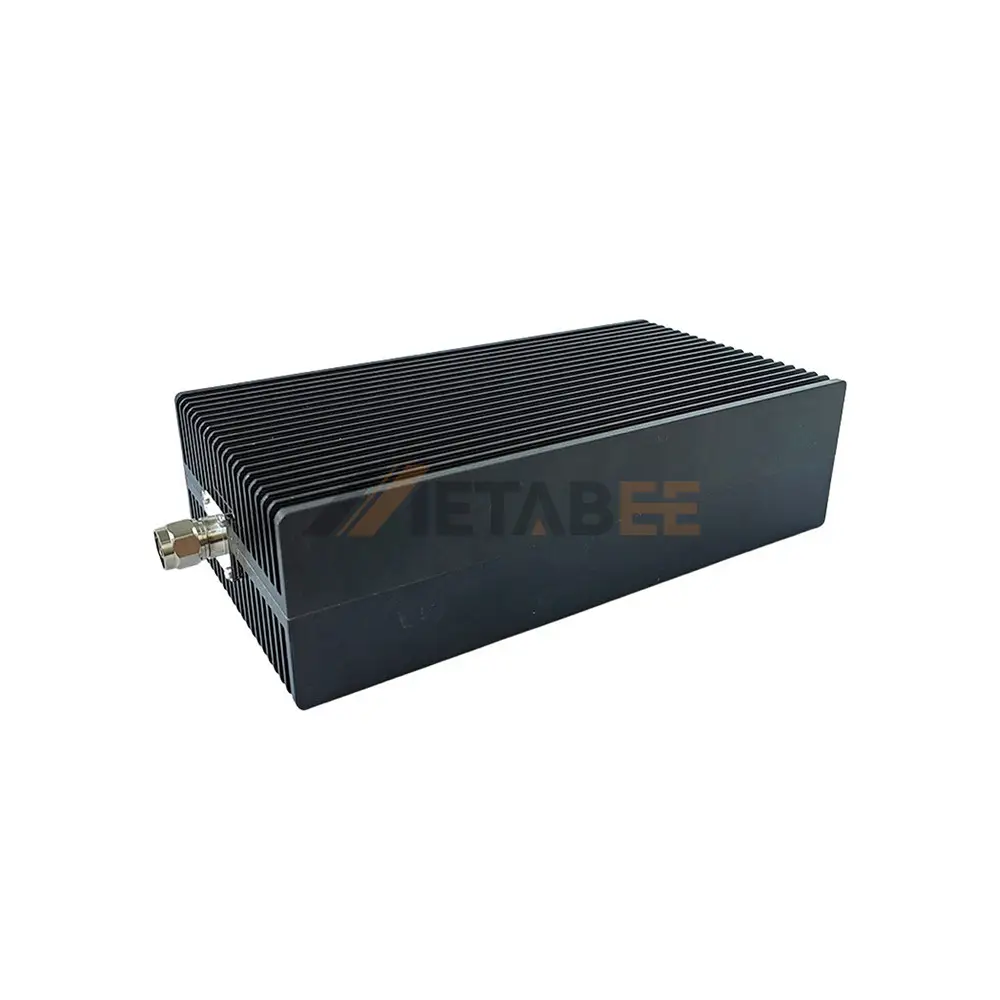

300W N-type Male to N-type Female High Power Fixed Attenuator, DC to 4GHz
Introduction
Designed for demanding radio frequency environments, this 300W N-type Male to N-type Female High Power Fixed Attenuator delivers reliable signal attenuation from DC to 4 GHz. Its robust construction features stainless steel housings for both the N-type male and N-type female connectors, ensuring exceptional durability and longevity. With a 50 Ohm impedance, this attenuator is engineered to seamlessly integrate into your existing RF systems, providing stable and precise signal reduction.
This attenuator boasts an impressive Voltage Standing Wave Ratio (VSWR) of 1.20:1, minimizing signal reflection and maximizing power transfer efficiency. Capable of handling up to 300W of power, it’s an ideal solution for a wide range of high-power applications. While rated at IP20 for protection against solid objects, its wide operating temperature range of -55°C to 125°C ensures consistent performance in extreme conditions, making it a versatile component for your RF infrastructure.
Key Features:
- High Power Handling: 300W.
- Wide Frequency Range: DC to 4 GHz.
- Low VSWR: 1.20:1.
- Durable Construction: Stainless steel connectors.
- Standard Impedance: 50 Ohms.
- Broad Operating Temperature: -55°C to 125°C.
- Reliable Connectivity: N-type Male to N-type Female.
Main Specifications:
| Part No.: | 300W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 300W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 300W N-type Male to N-type Female High Power Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
