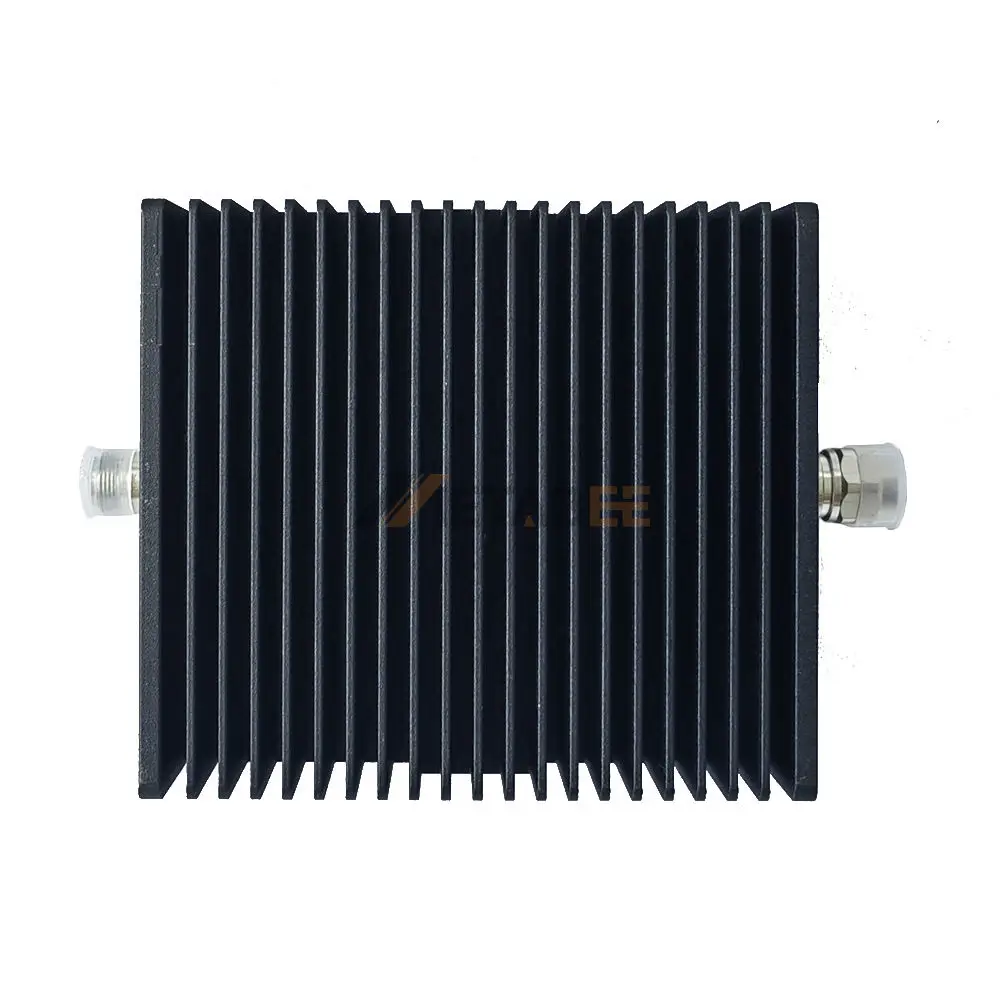

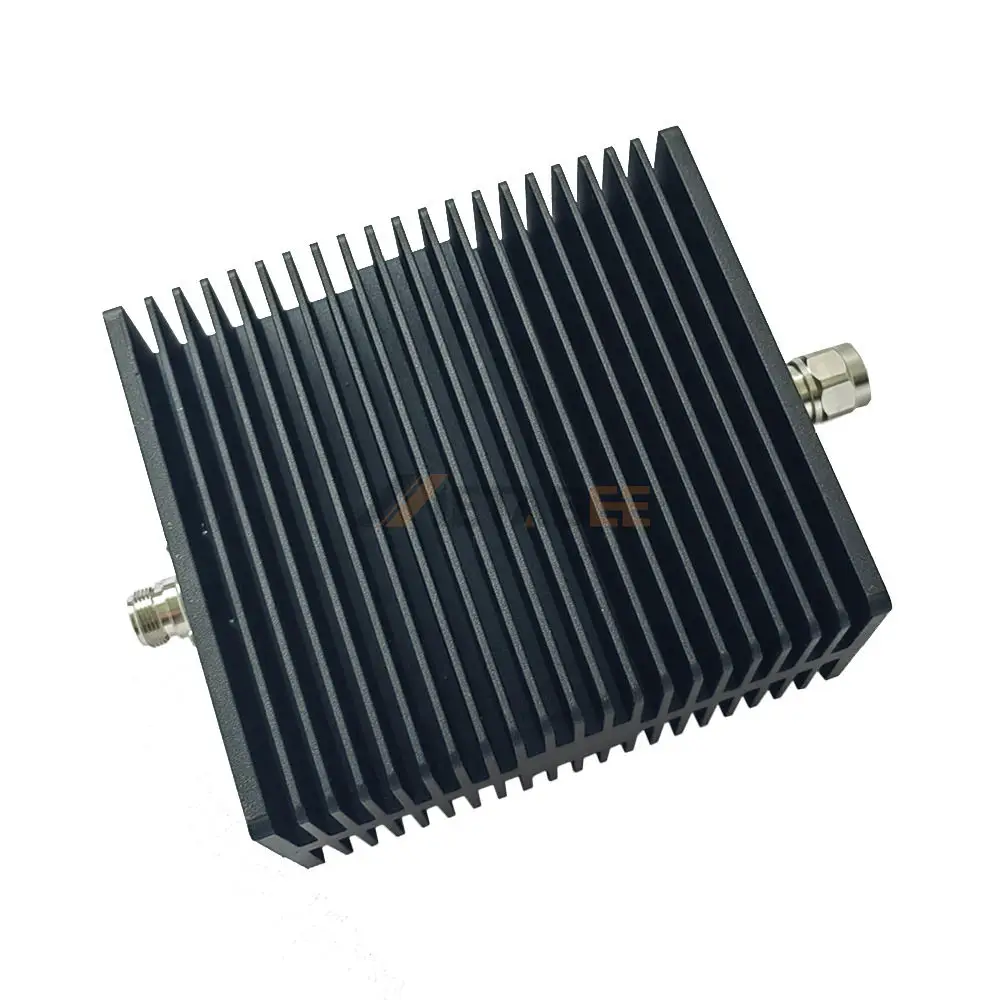

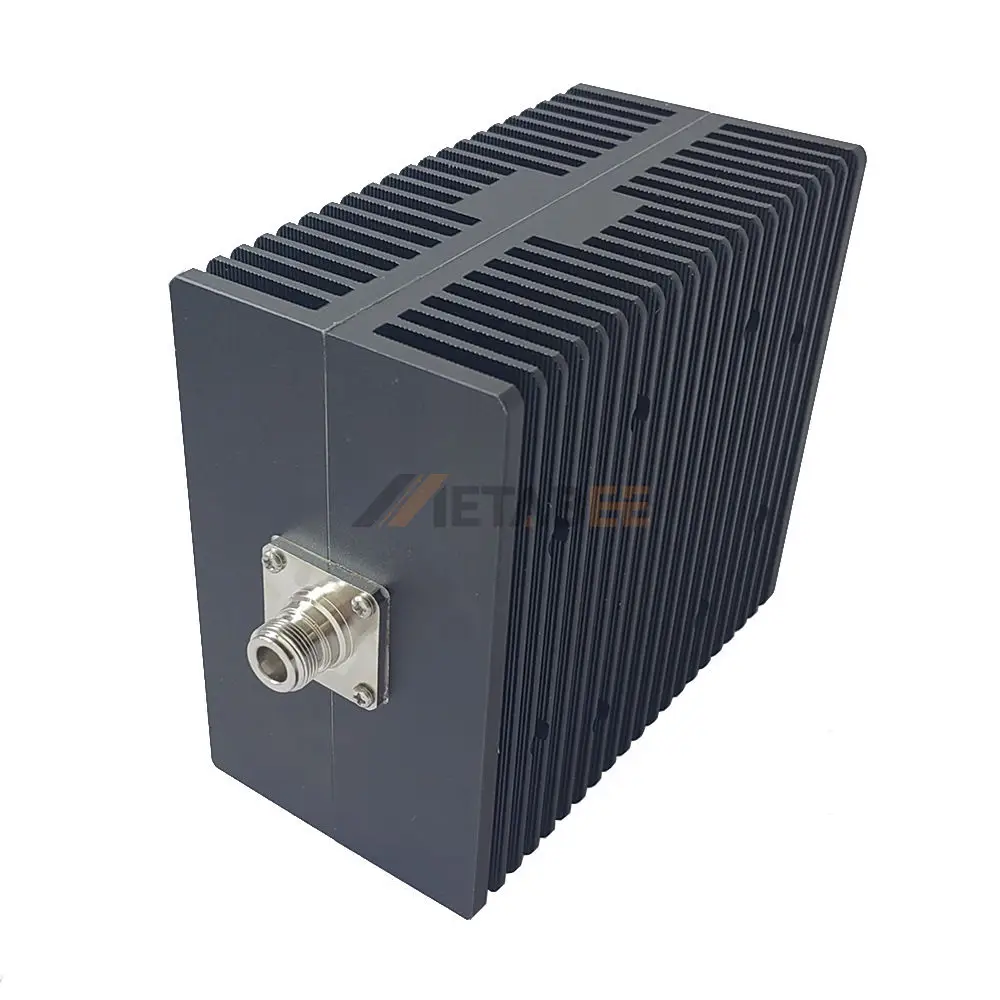

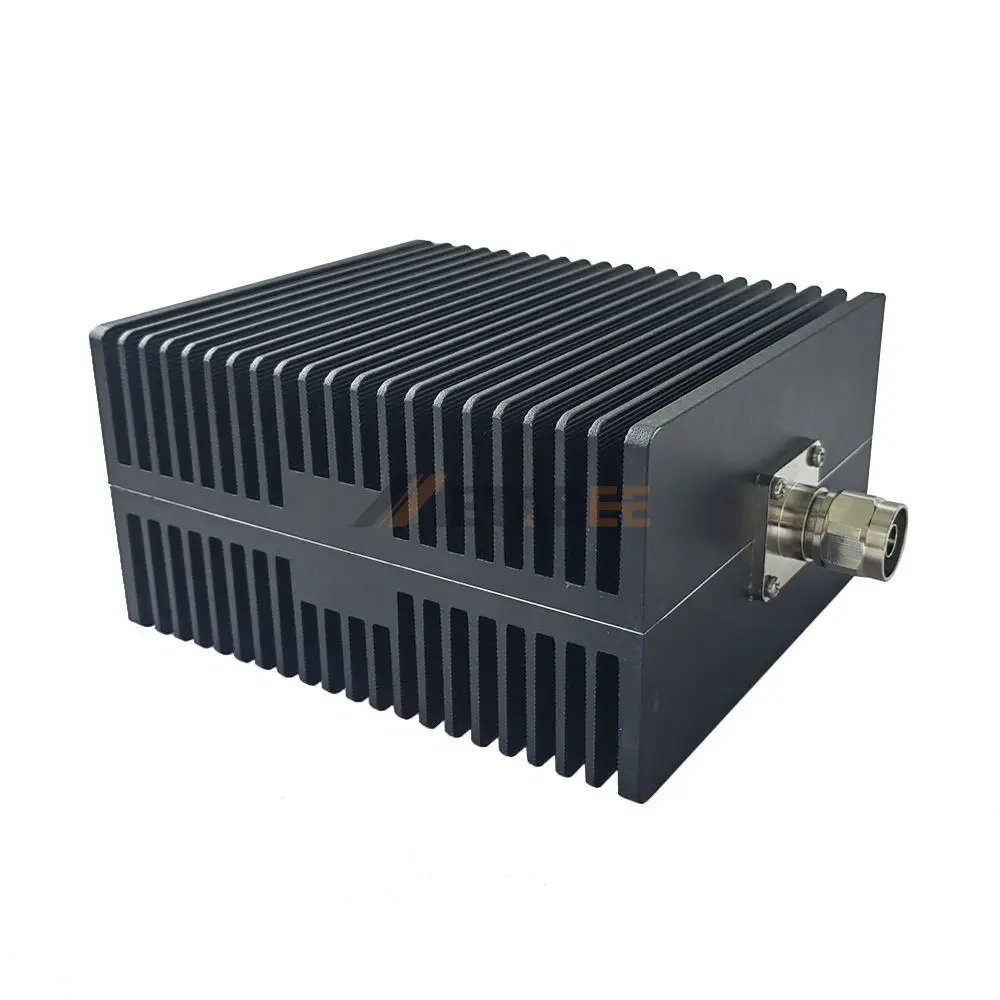

150 Watt N-type Male to N-type Female RF Fixed Attenuator, DC to 3GHz
Introduction
The 150-Watt N-type attenuator is engineered for high-power RF applications requiring stable signal attenuation across a wide frequency spectrum. Designed for use from DC to 3GHz, this attenuator ensures consistent performance with a low VSWR of 1.20:1, delivering minimal signal reflection and reliable transmission in demanding environments.
Constructed with durable stainless steel housing and equipped with precision N-type male to N-type female connectors, this 50-ohm attenuator offers superior mechanical stability and corrosion resistance. Its IP20 protection rating and wide operating temperature range of -55°C to +125°C make it suitable for both laboratory and industrial applications where durability and thermal endurance are critical. Whether integrated into RF testing systems, telecommunications infrastructure, or high-power RF setups, this attenuator provides excellent power handling with minimal loss.
Key Features:
- Rated for 150W continuous power.
- Frequency range: DC to 3GHz.
- Impedance: 50 Ohms.
- Low VSWR: 1.20:1 max.
- N-type male to N-type female connectors.
- Durable stainless steel housing.
- Operating temperature: -55°C to +125°C; IP20 rating.
Main Specifications:
| Part No.: | 150W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 150W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 150-Watt N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
