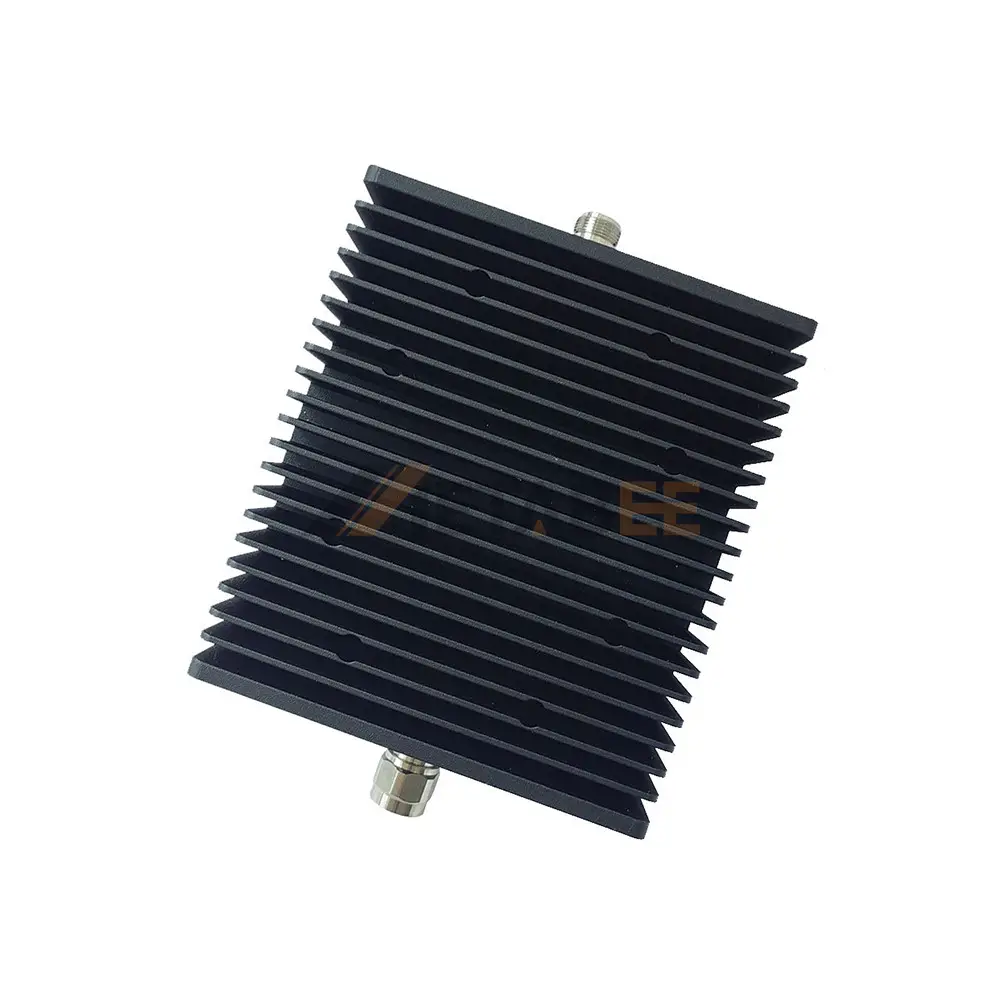

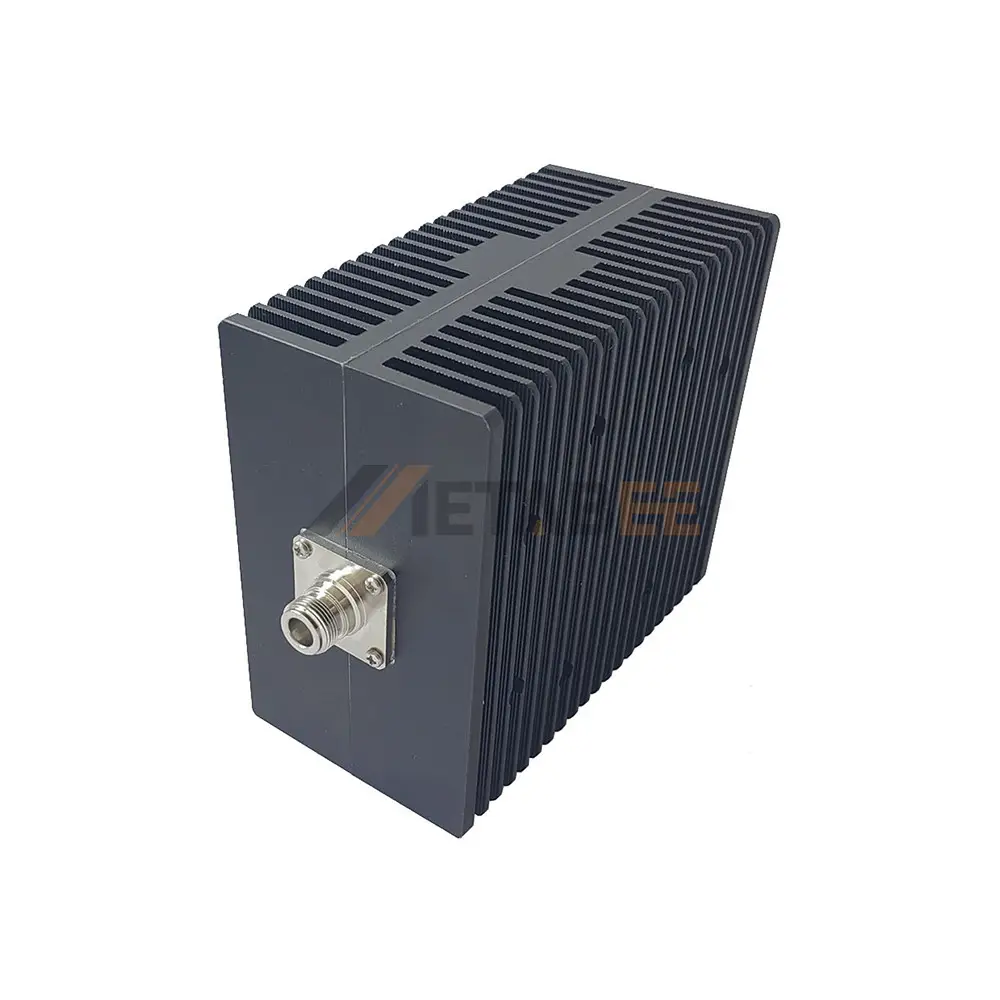

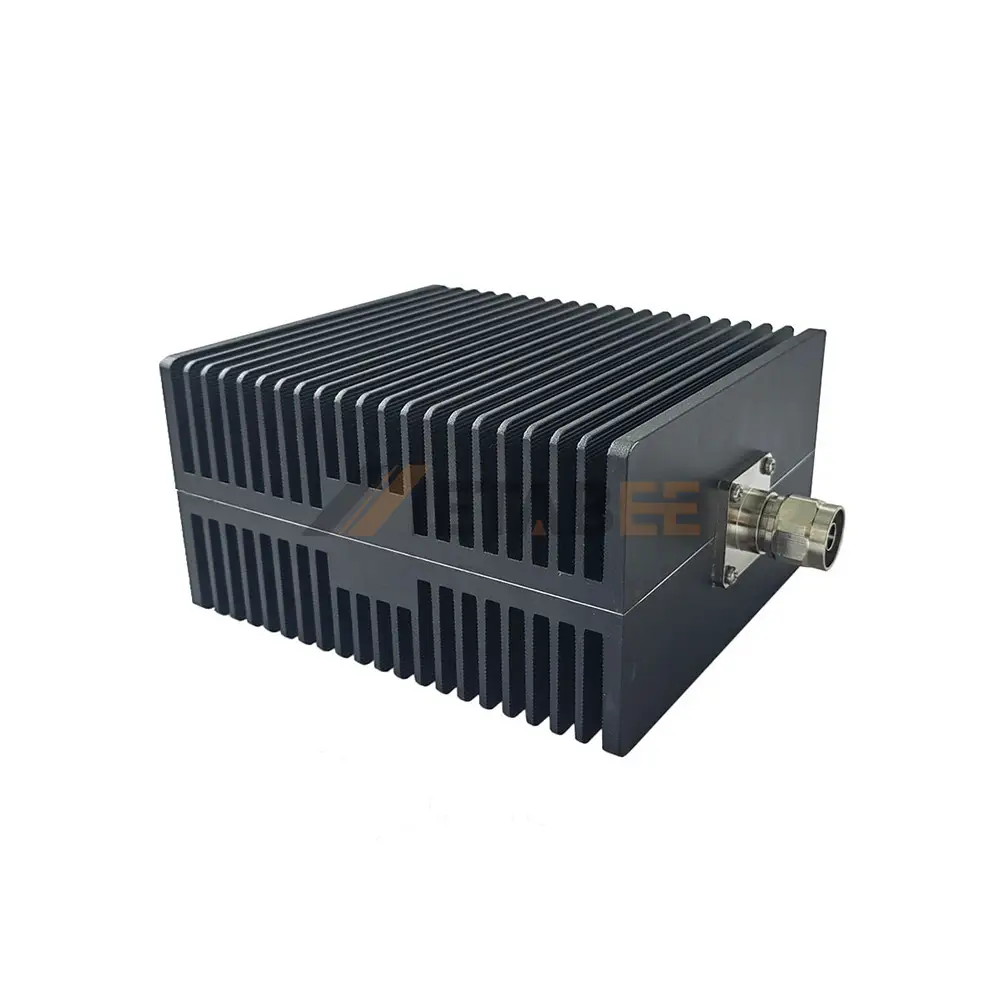

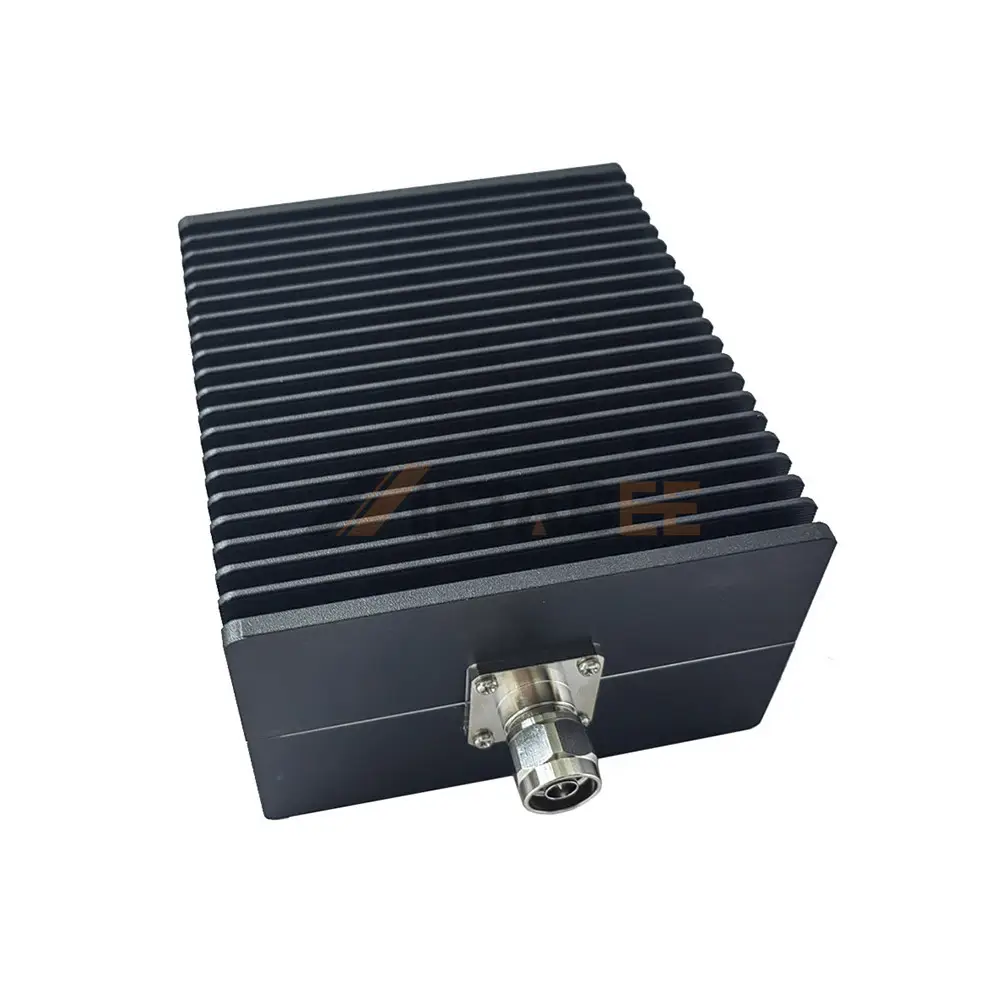

150W N-type Male to N-type Female RF Fixed Attenuator, 1-60 DB, DC to 3GHz
Introduction
This N-type fixed attenuator is engineered for precise signal attenuation in a wide range of RF applications. Featuring an N-type male to N-type female configuration, it offers reliable performance with an impedance of 50 ohms and a broad frequency range of DC to 3 GHz. Its robust construction, utilizing stainless steel for both connector housings, ensures exceptional durability and longevity, even in demanding environments.
With a power rating of 150W and a low VSWR of 1.20:1, this attenuator delivers stable and efficient signal reduction from 1 dB to 60 dB. Designed to withstand extreme conditions, it boasts an impressive operating temperature range of -55°C to 125°C, making it ideal for a wide range of industrial and telecommunications applications. While it has an IP20 ingress protection rating, its overall build quality provides a reliable solution for your attenuation needs.
Key Features:
- Fixed Attenuation: Precise 1-60 dB attenuation range.
- Wide Frequency Range: Operates from DC to 3 GHz.
- High Power Handling: Rated for 100W continuous power.
- Low VSWR: Excellent 1.20:1 VSWR for minimal reflection.
- Robust Construction: Stainless steel N-type male and female connectors.
- 50 Ohm Impedance: Standard impedance for RF systems.
- Broad Operating Temperature: Reliable performance from -55°C to 125°C.
Main Specifications:
| Part No.: | 150W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 150W | |
| Attenuation: | 1-60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 150W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
