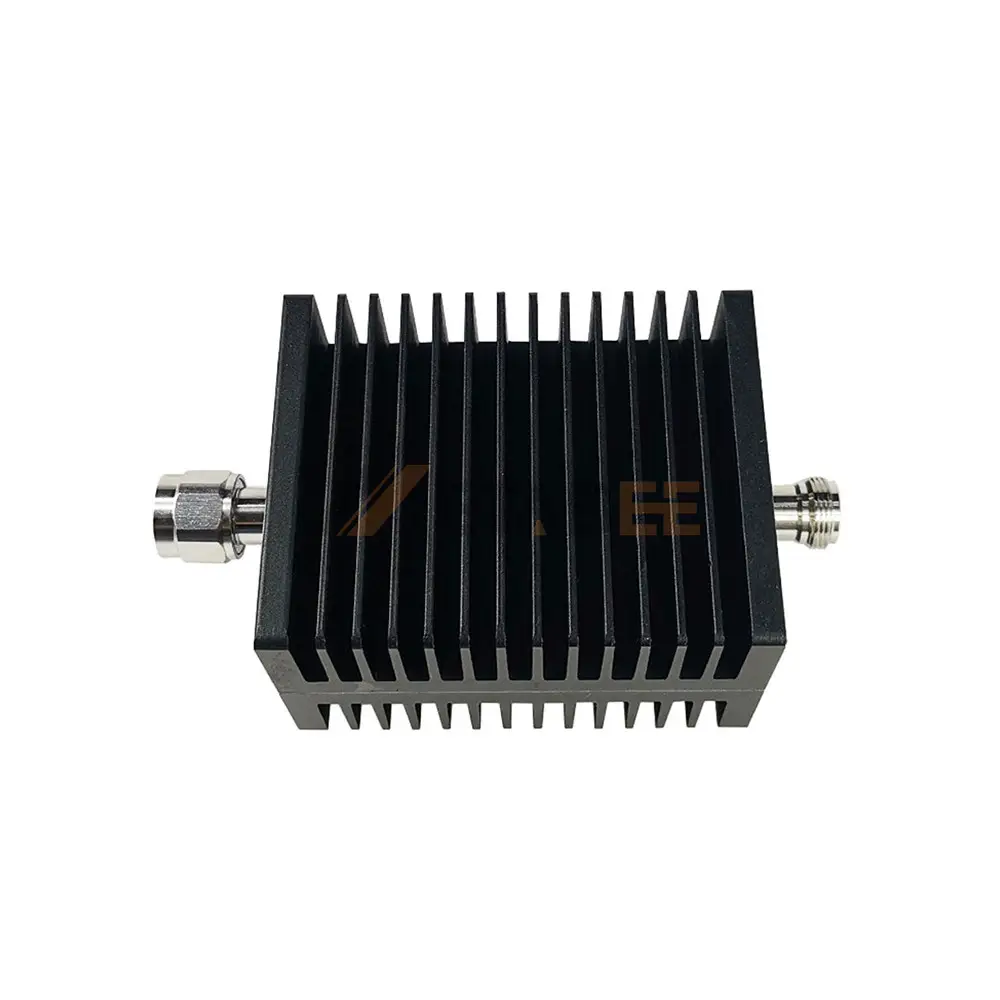

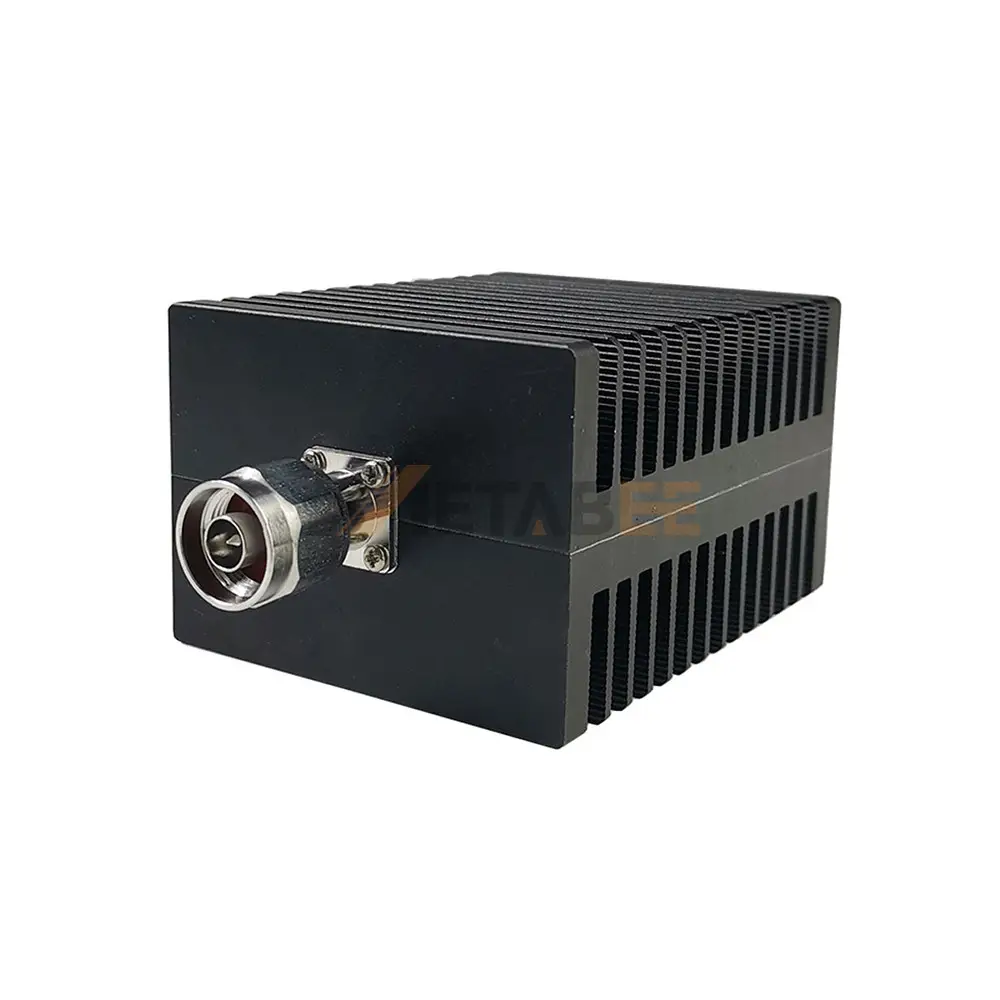

100W N-type Male to N-type Female RF Fixed Attenuator, DC to 3GHz
Introduction
The 100W N-type attenuator offers robust signal attenuation for high-power RF applications up to 3GHz. With a frequency range spanning DC to 3GHz and a 50-ohm impedance, this attenuator ensures excellent impedance matching and low VSWR performance (1.20:1 max), making it ideal for testing, system tuning, and signal level management in demanding environments.
Built with precision stainless steel connectors—N-type male on the input and N-type female on the output—this fixed attenuator guarantees long-term durability and corrosion resistance. Designed for 100-watt continuous power handling, it delivers stable performance across a wide operating temperature range of -55°C to +125°C. Rated to IP20 for environmental protection, it is suitable for indoor RF setups.
Key Features:
- Power Handling: Supports up to 100W continuous RF power.
- Frequency Range: Operates from DC to 3GHz.
- Impedance: Standard 50-ohm system compatibility.
- VSWR: Low standing wave ratio of 1.20:1.
- Connector Type: N-type male to N-type female, stainless steel.
- Durability: Operating temperature from -55°C to +125°C.
- Ingress Protection: Rated IP20 for indoor use.
Main Specifications:
| Part No.: | 100W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 100W | |
| Attenuation: | 1DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 100W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
