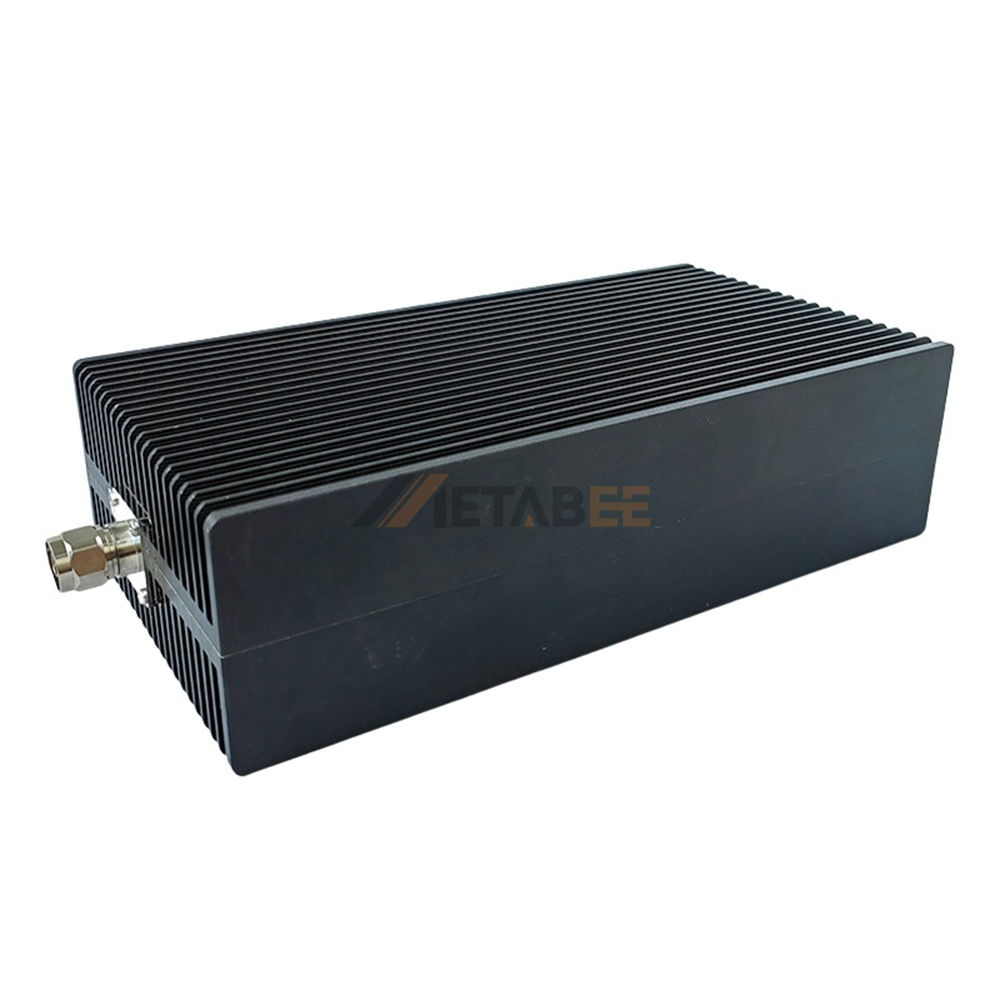

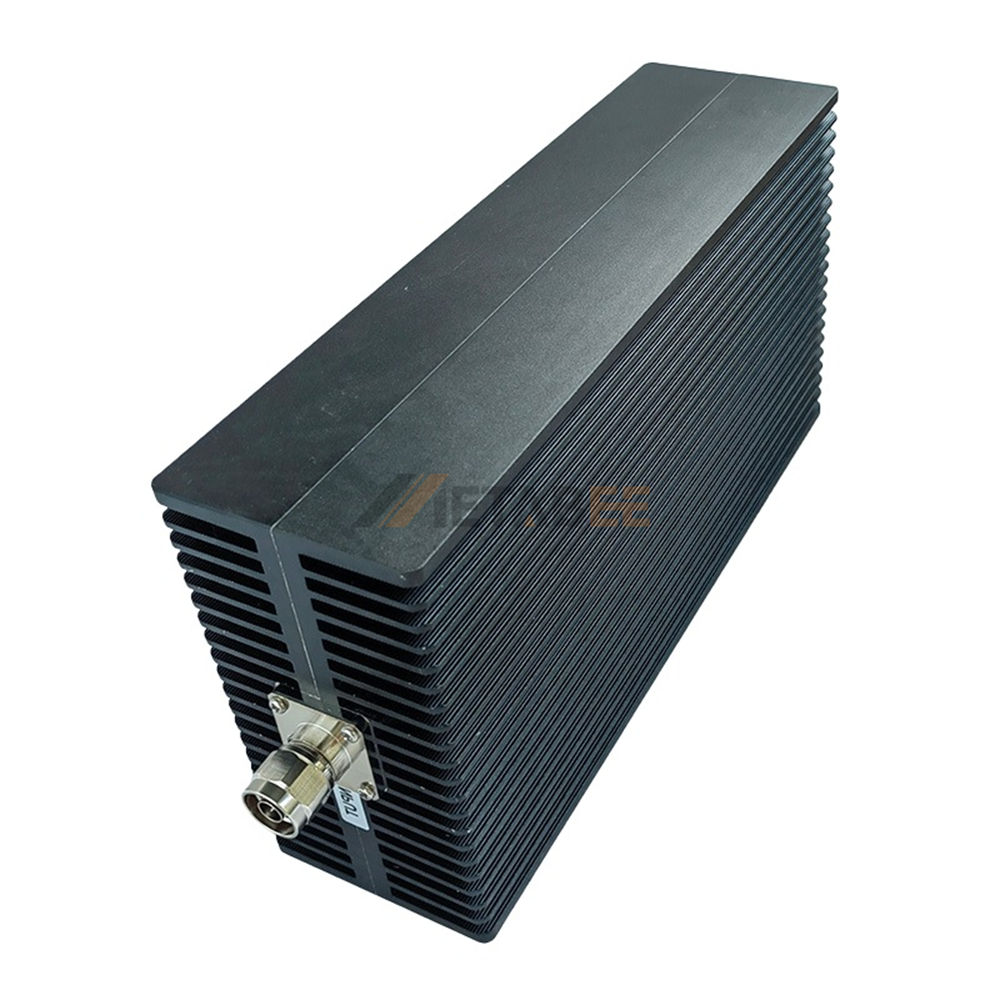

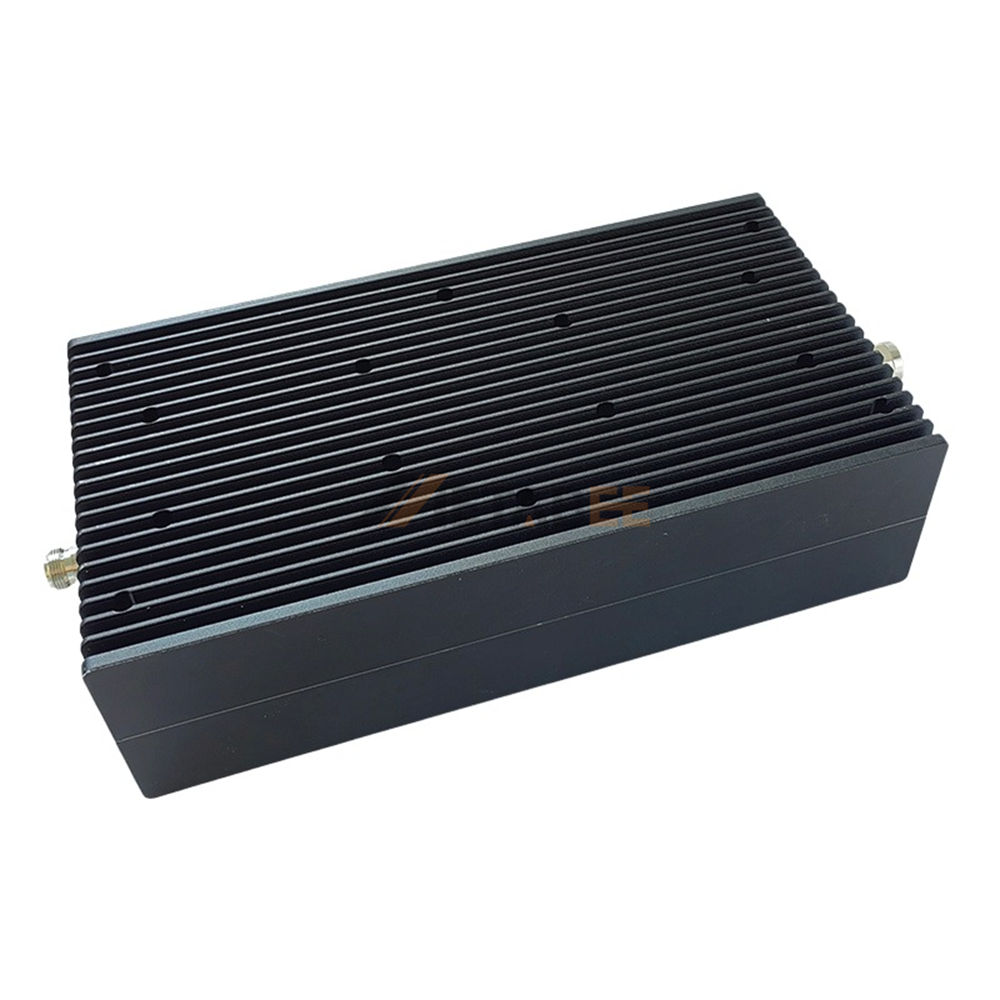

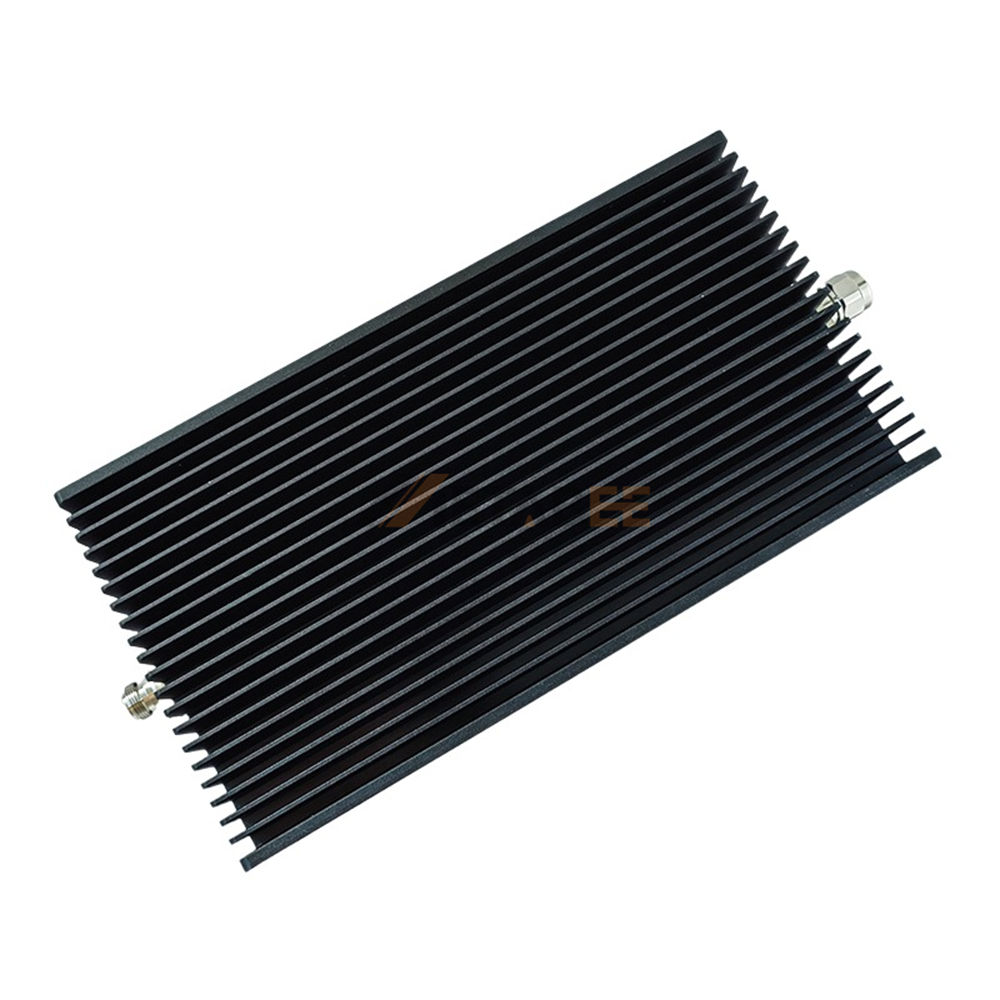

300W N-type Male to N-type Female Fixed RF Attenuator, DC to 3GHz
Introduction
This high-power 300W N-type fixed RF attenuator is engineered for reliable performance in demanding applications, offering precise signal attenuation from DC to 3 GHz. Its robust construction features N-type male to N-type female connectors, both crafted from durable stainless steel for exceptional longevity and corrosion resistance. With a 50-ohm impedance, this attenuator ensures optimal signal integrity and compatibility within your RF systems.
Designed to handle significant power, it boasts a low VSWR of 1.20:1, minimizing signal reflections and maximizing power transfer. The impressive operating temperature range of -55°C to 125°C makes it suitable for extreme environmental conditions. While offering essential attenuation, it features an IP20 ingress protection rating. This N-type attenuator is an ideal solution for a wide range of RF applications requiring stable and precise power reduction.
Key Features:
- 300W Power Handling: Capable of managing high power loads.
- DC to 3GHz Frequency Range: Broad operational frequency for versatile use.
- N-Type Male to N-Type Female: Standardized N-type connectors for easy integration.
- 50 Ohm Impedance: Ensures optimal signal matching.
- Stainless Steel Construction: Durable and corrosion-resistant connectors and housing.
- Low VSWR (1.20:1): Minimizes signal loss and reflections.
- Wide Operating Temperature: Functions reliably from -55°C to 125°C.
Main Specifications:
| Part No.: | 300W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 300W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 300W N-type Male to N-type Female Fixed RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
