100W N-type Male to N-type Female RF Attenuator, DC to 3GHz
Introduction

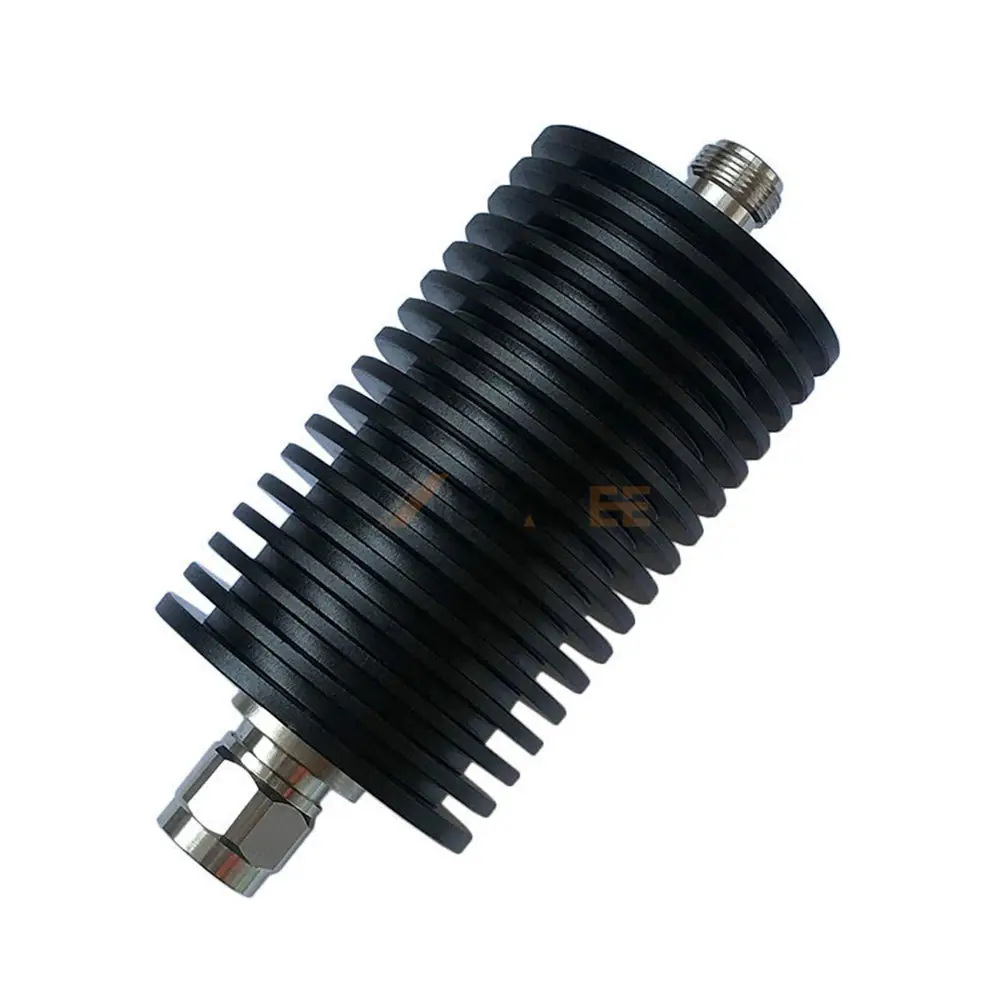

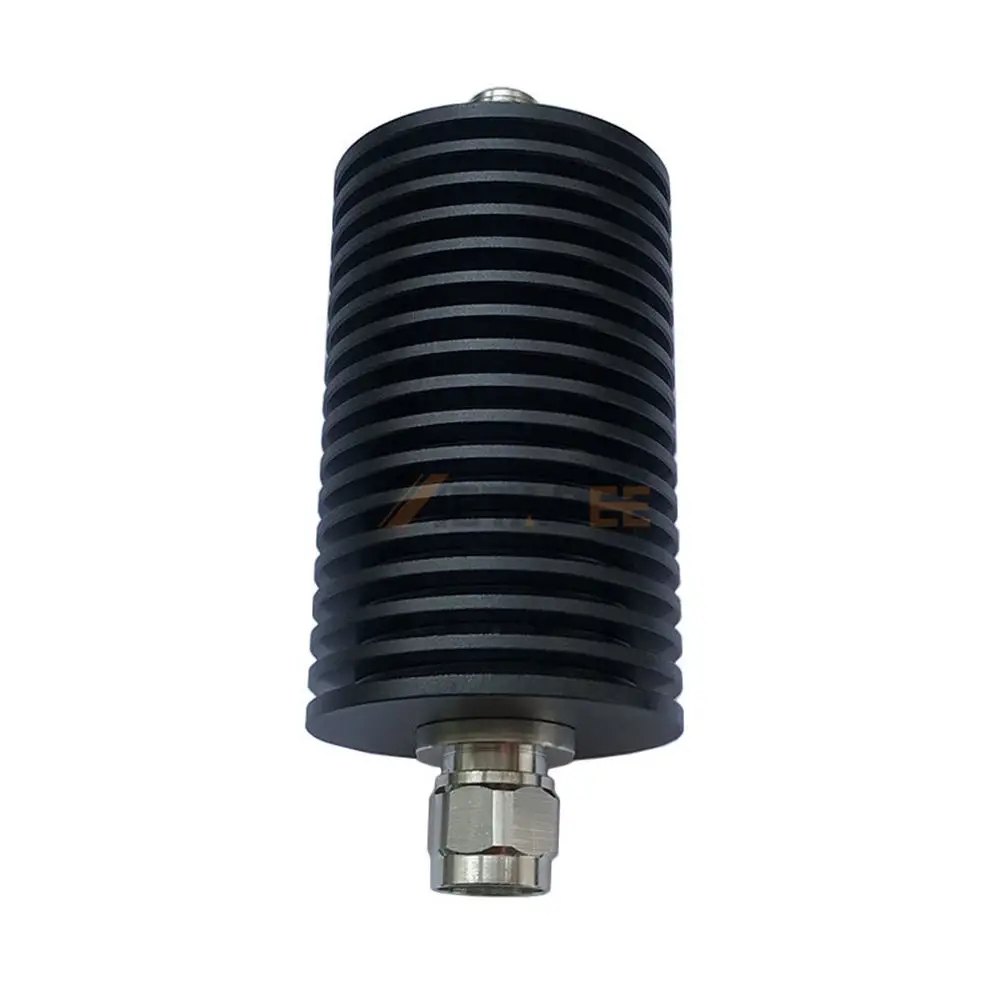

The 100W N-type Male to N-type Female RF Attenuator (DC to 3GHz) is a high-performance coaxial attenuator engineered for precise RF signal control in demanding systems. Designed with a durable stainless steel housing, this fixed attenuator ensures reliable performance and long-term stability in harsh environments. The unit operates across a broad frequency range from DC to 3GHz, making it ideal for various RF applications including telecommunications, testing systems, and defense systems.
With a power rating of 100 watts and a low VSWR of 1.20:1, this attenuator minimizes reflection and signal distortion while maintaining a 50-ohm impedance match. The N-type male to N-type female configuration provides robust, threaded connections for secure integration. Rated IP20, the unit offers basic protection against solid objects and functions in extreme temperatures from -55°C to +125°C, ensuring reliability across varied field conditions.
Key Features:
- 100W power handling for high-power RF applications.
- N-type male to female connectors with secure threading.
- Wide frequency range: DC to 3GHz.
- Low VSWR of 1.20:1 for efficient signal transmission.
- 50Ω impedance for standard system compatibility.
- Stainless steel construction for excellent durability.
- IP20 rating and -55°C to +125°C operating temperature range.
Main Specifications:
| Part No.: | 100W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 100W | |
| Attenuation: | 1DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 100W N-type Male to N-type Female RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
