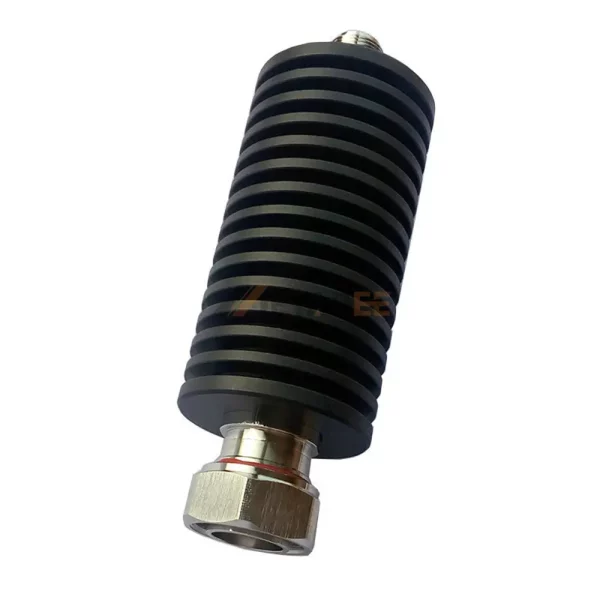

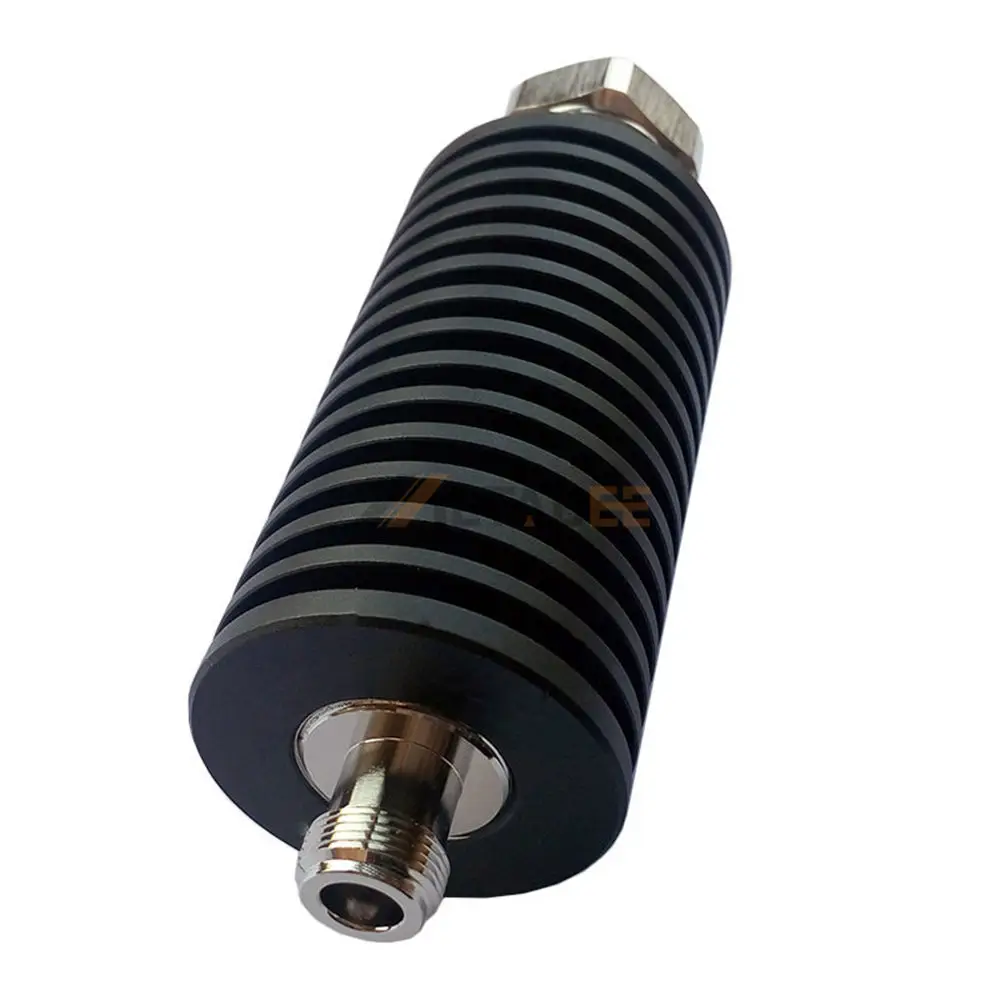

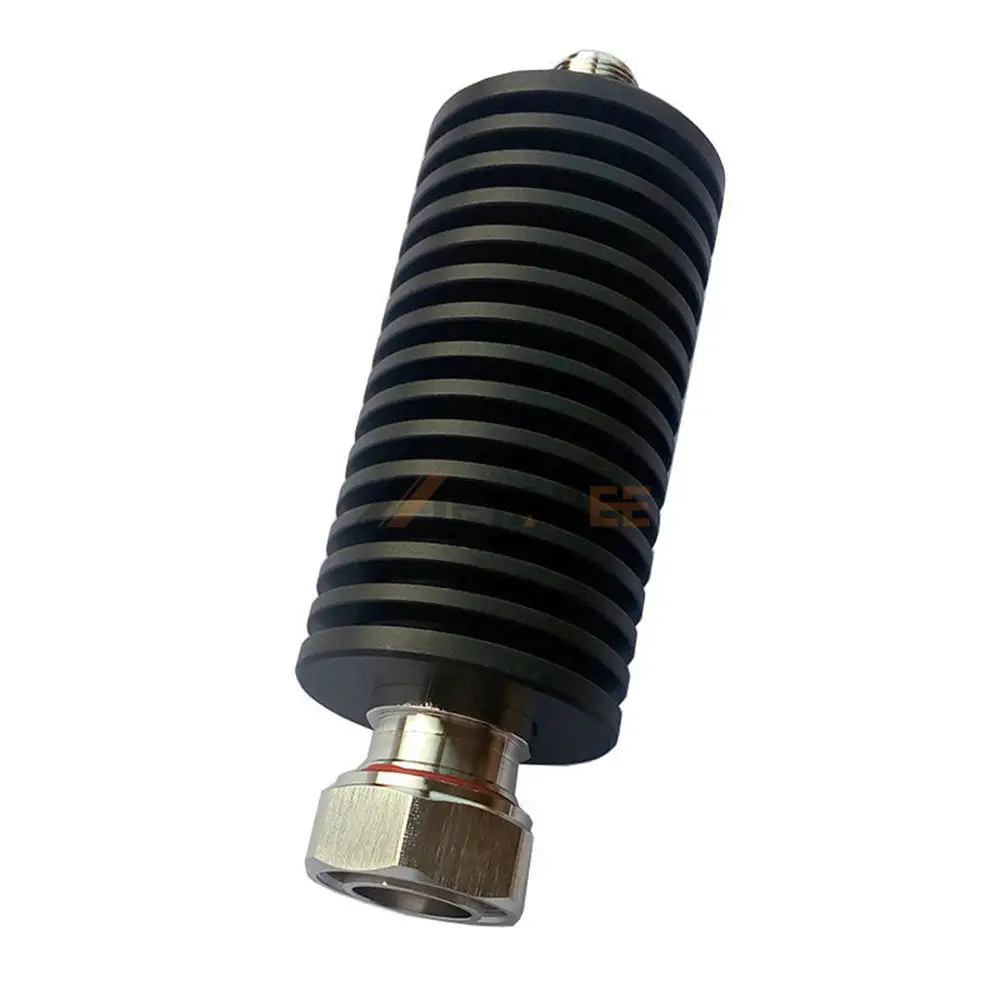

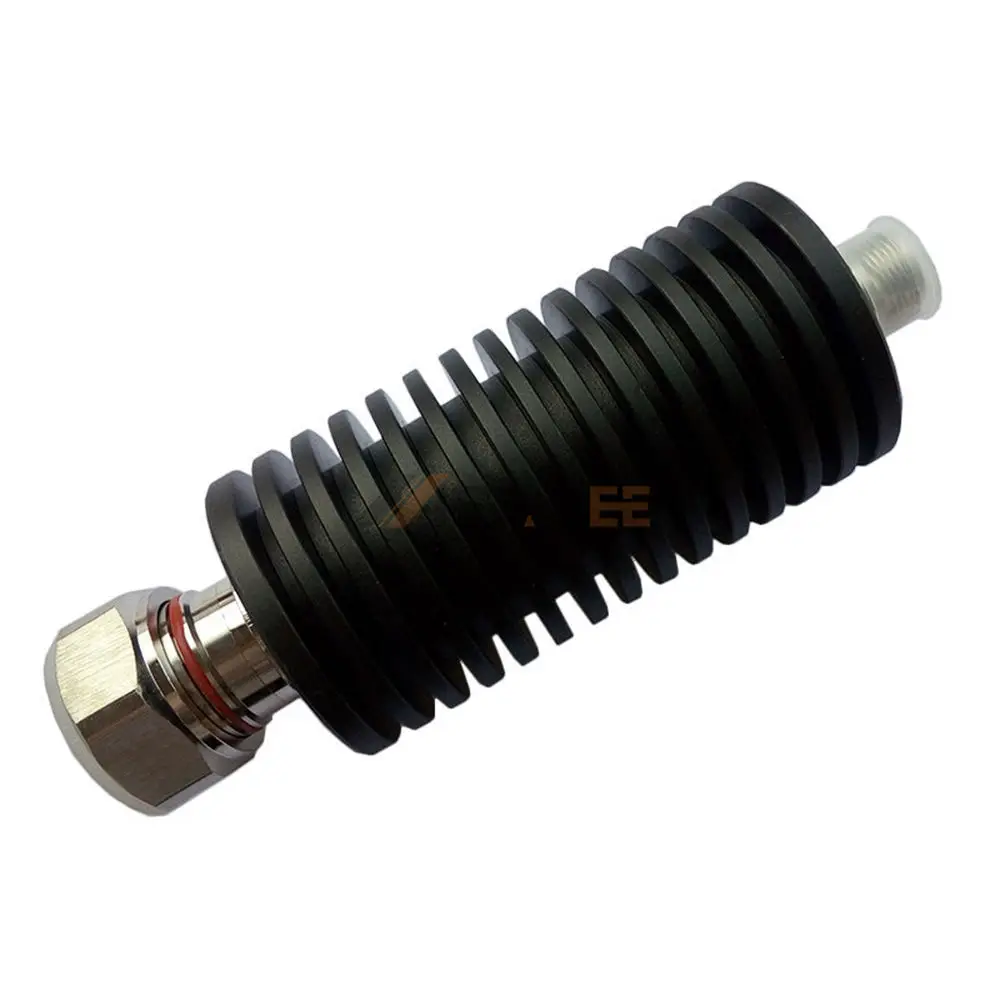

100W DIN Male to N-type Female RF Attenuator, DC to 3GHz

Introduction

This 50-Watt DIN attenuator is engineered for reliable signal attenuation in a wide range of RF applications. As part of our DIN Attenuator series, it features a robust construction with stainless steel bodies for both the DIN male and N-type female connectors, ensuring excellent durability and corrosion resistance. With a characteristic impedance of 50 ohms, this attenuator guarantees optimal signal transfer and minimal reflection across its DC to 3 GHz frequency range.

Designed to handle significant power while maintaining signal integrity, this attenuator boasts a low Voltage Standing Wave Ratio (VSWR) of 1.20:1, making it ideal for systems where signal loss and reflections must be minimized. Its IP20 ingress protection rating makes it suitable for various indoor environments, and with an operating temperature range of -55°C to 125°C, it performs reliably in extreme conditions.

Key Features:

  • High Power Handling: 50 Watts.
  • Wide Frequency Range: DC to 3 GHz.
  • Low VSWR: 1.20:1.
  • Durable Construction: Stainless steel connectors.
  • Standard Impedance: 50 Ohms.
  • Broad Operating Temperature: -55°C to 125°C.
  • DIN Attenuator Series: Ensures compatibility and quality.

Main Specifications:

Part No.: 100W-DIN-JK-3G
Product Series: DIN Attenuators
Brand: Metabee
Connector 1: DIN Connector
Connector 1 – Gender: Male
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Not Applicable
Connector 2: N-type Connector
Connector 2 – Gender: Female
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Plating: Not Applicable
Power Maximum: 100W
Attenuation:  1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB
Impedance: 50 Ohm
VSWR: ≤1.20:1
Frequency(Max): 3 GHz
Operating Temperature: -55°C to +125°C
IP Rating: IP20
Other Feature: None


Applications of this 100W DIN Male to N-type Female RF Attenuator:

  • Test & Measurement;
  • Telecommunications;
  • Satellite Systems;
  • Broadcast Equipment;
  • Military & Aerospace;
  • Medical Devices;
  • Wireless Networks;
  • RF Amplifiers;
  • Signal Generators.

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!

RF Attenuators
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF attenuators.
Product No.

50W-DIN-N-JK-3G

Product Series

DIN Attenuators

Product Name

50 Watt DIN Male to N-type Female RF Fixed Attenuator, DC to 3GHz

Brand

Metabee

Connector 1

DIN Connector

Connector 1 - Gender

Male

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Not Applicable

Connector 2

N-Type Connector

Connector 2 - Gender

Female

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Not Applicable

Max Power

50W

Attenuation

1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB

Impendence

50 Ohm

Frequency(Max)

0-3 GHz

VSWR

≤ 1.20:1

IP Rating

IP20

Operating Temperature

-55ºC to +125 ºC

Other Features

None
