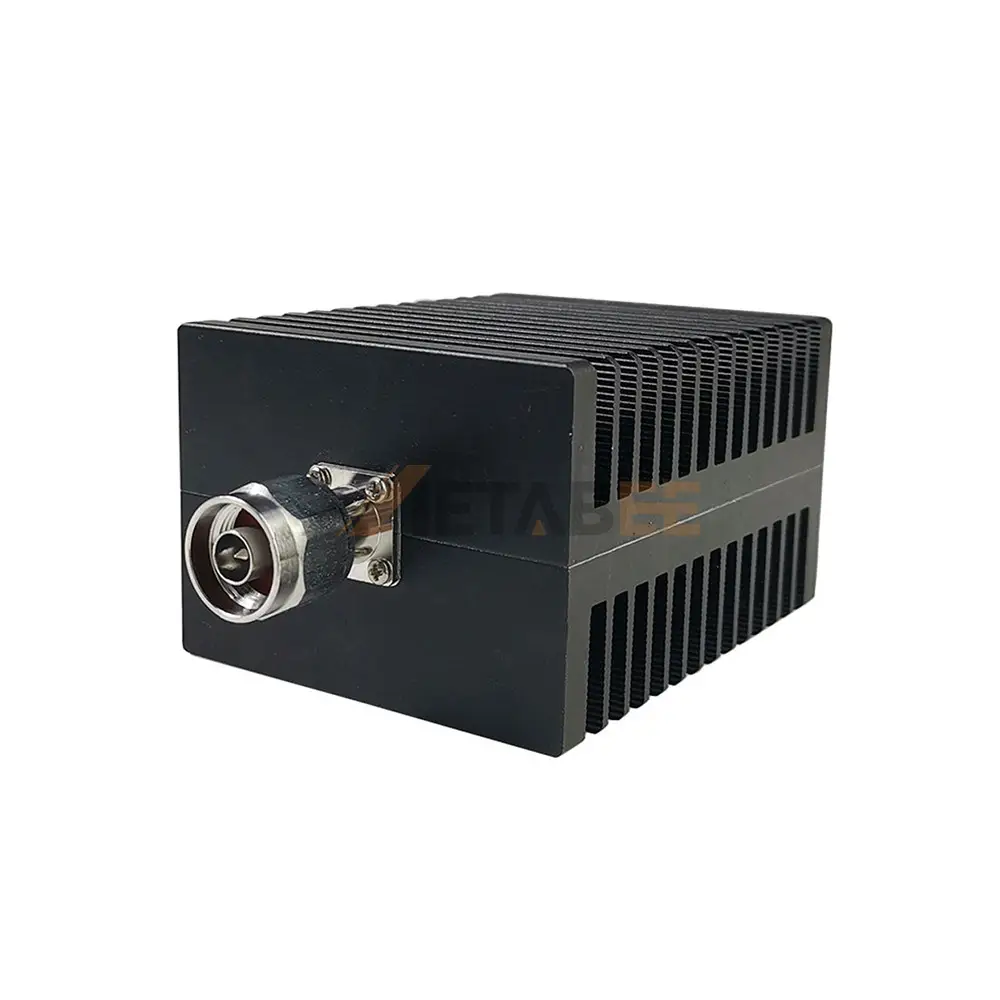

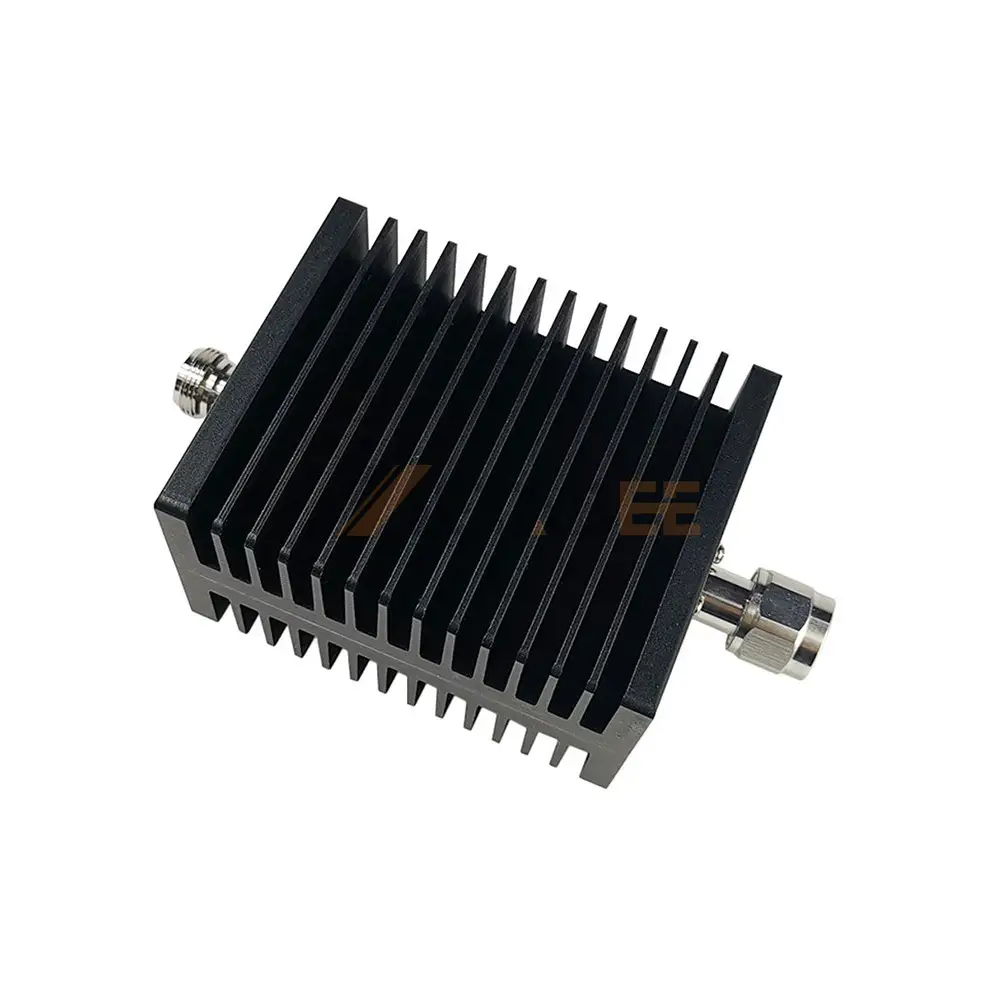

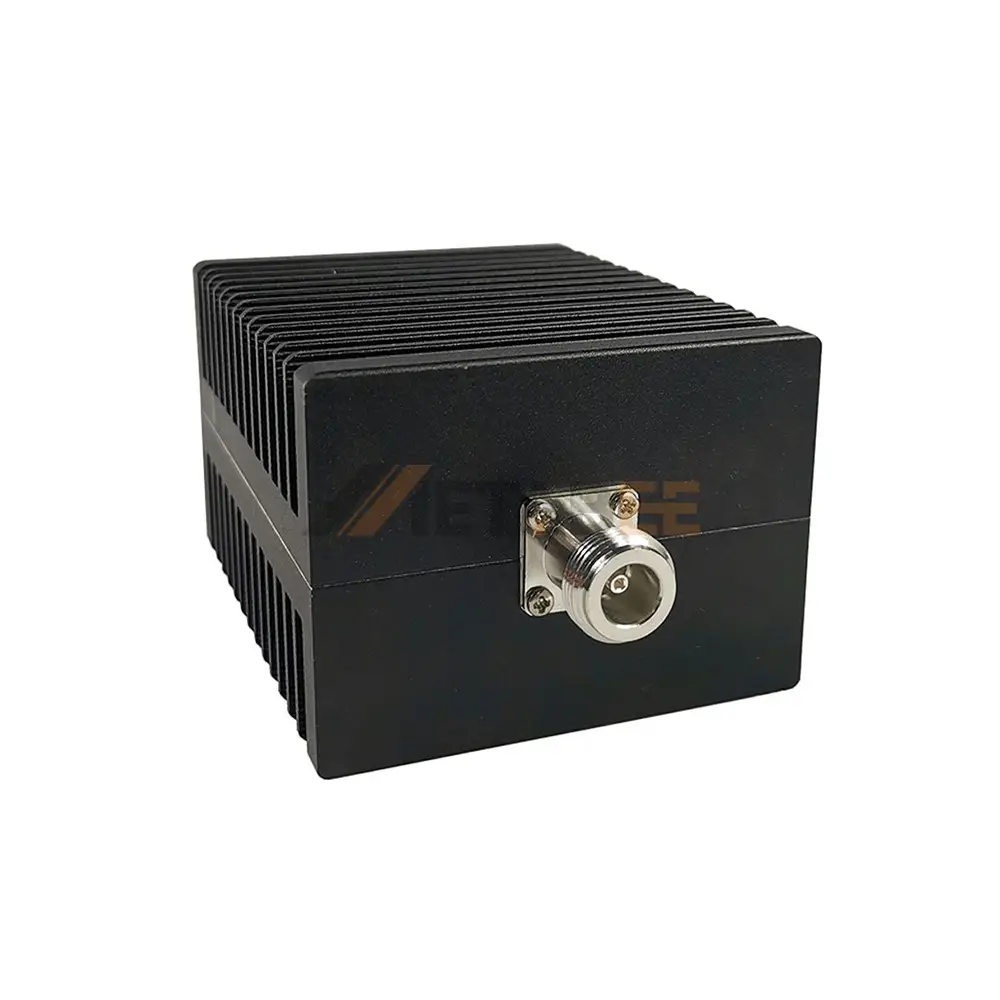

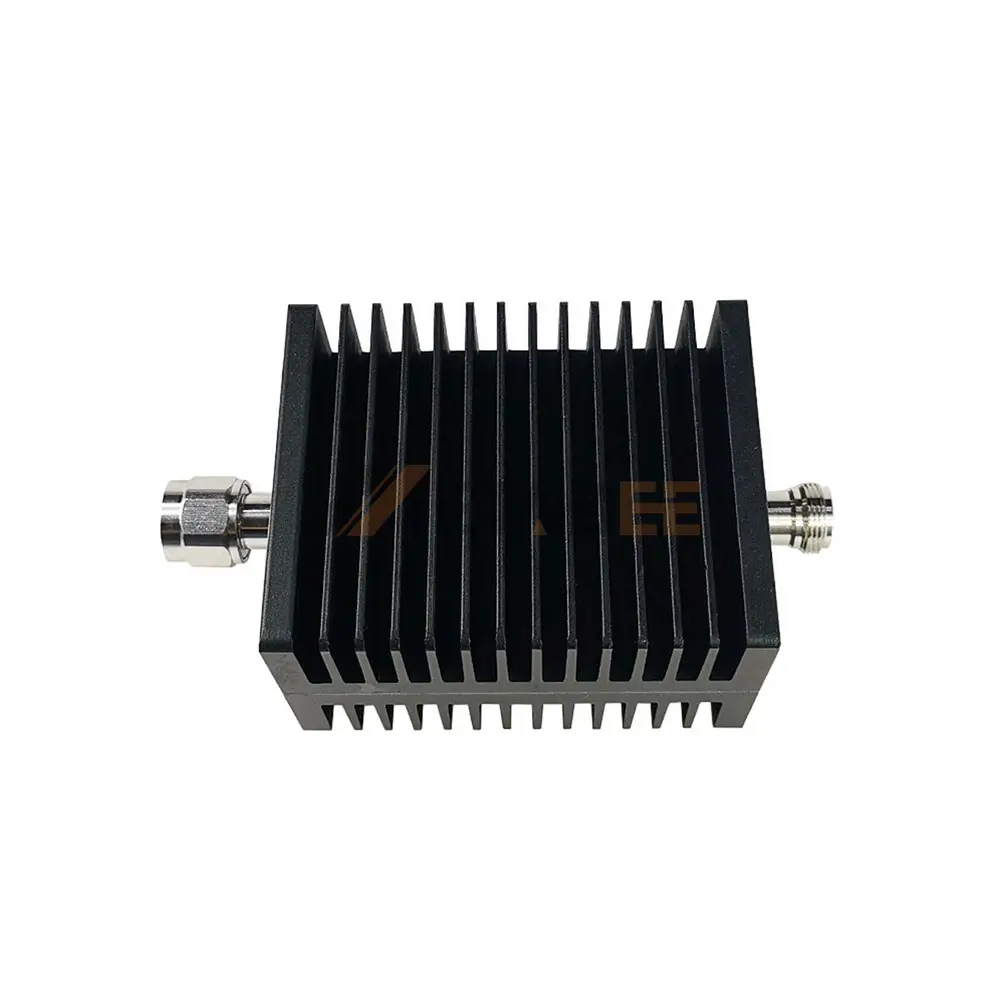

100 Watt N-type Male to N-type Female Fixed Attenuator, DC to 4GHz, 50 Ohm
Introduction
This 100-Watt N-type Male to N-type Female Fixed Attenuator is designed for high-power RF signal attenuation applications from DC to 4GHz. Part of the N-type Attenuator series, it offers a 50-ohm impedance, ensuring excellent performance in RF systems requiring precise power control and signal conditioning.
Engineered with N-type male and female connectors made from durable stainless steel, this attenuator guarantees long-term mechanical strength and corrosion resistance. With a low VSWR of 1.20:1 and an IP20 protection rating, it performs reliably in demanding environments. It operates efficiently across a wide temperature range from -55°C to +125°C, making it suitable for harsh industrial or laboratory conditions.
Key Features:
- Frequency range: DC to 4GHz.
- Rated power: 100 Watts.
- Impedance: 50 Ohms.
- VSWR: 1.20:1 max.
- Connector type: N-type male to N-type female.
- Housing material: Stainless steel.
- Operating temperature: -55°C to +125°C.
Main Specifications:
| Part No.: | 100W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 100W | |
| Attenuation: | 1DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 100-Watt N-type Male to N-type Female Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
