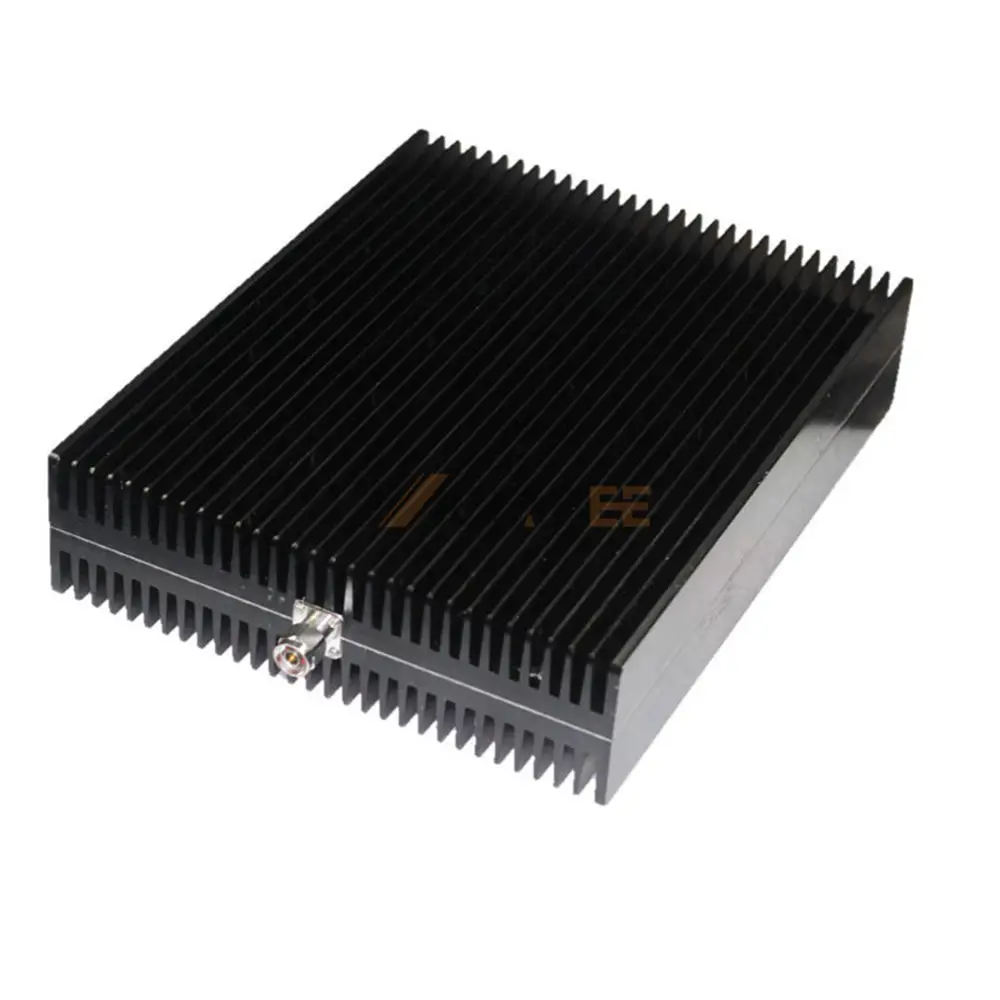

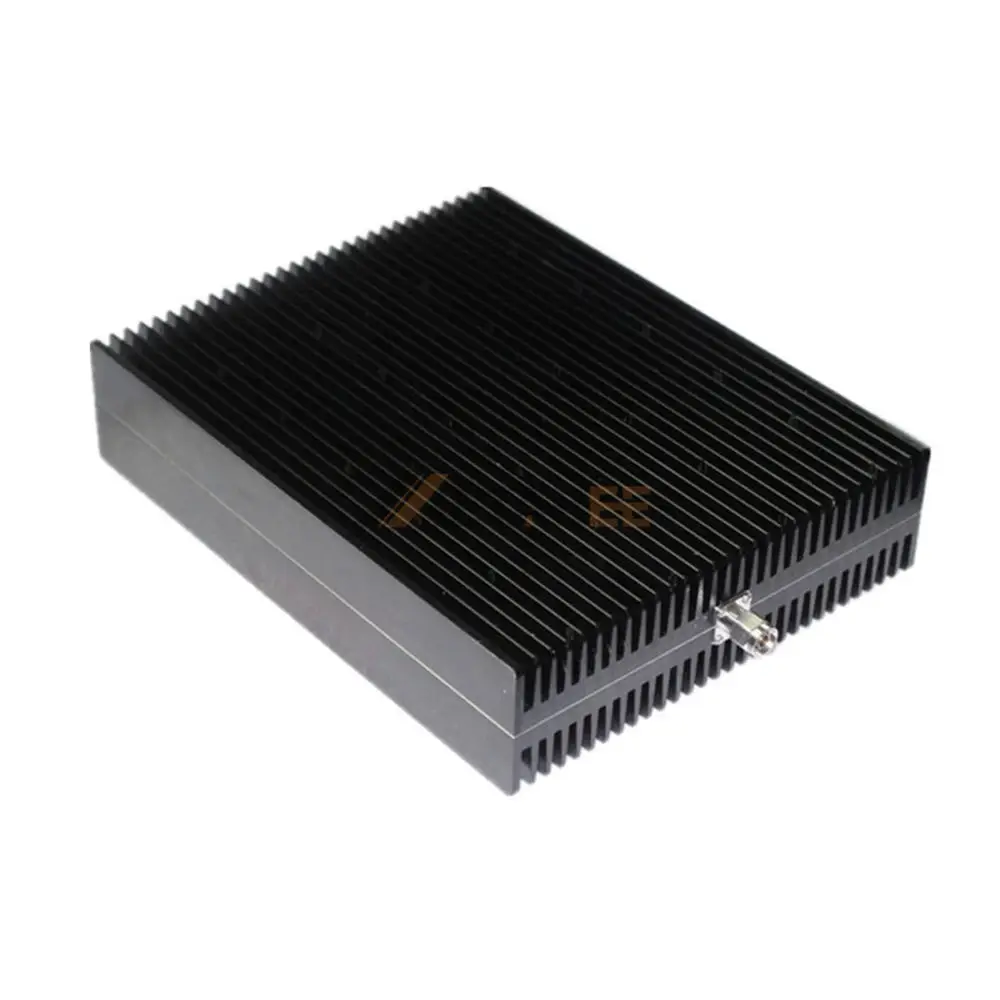

500W N-type Male to N-type Female Fixed High Power Attenuator, DC to 3GHz
Introduction
This 500W N-type attenuator is engineered for demanding RF applications, providing reliable signal reduction across a broad frequency range. With a DC to 3 GHz frequency range and a low VSWR of 1.20:1, it ensures minimal signal reflection and optimal power transfer. Its robust construction features N-type male and N-type female connectors, both crafted from durable stainless steel for exceptional longevity and corrosion resistance, making it ideal for harsh environments.
Designed for superior performance and durability, this N-type attenuator boasts a 50-ohm impedance for seamless integration into most RF systems. It operates efficiently in extreme conditions, with an impressive operating temperature range of -55°C to 125°C. While offering essential signal attenuation, its IP20 ingress protection safeguards against solid objects larger than 12.5mm, ensuring reliable operation in various indoor settings.
Key Features:
- High Power Handling: 500W.
- Broad Frequency Range: DC to 3 GHz.
- Low VSWR: 1.20:1.

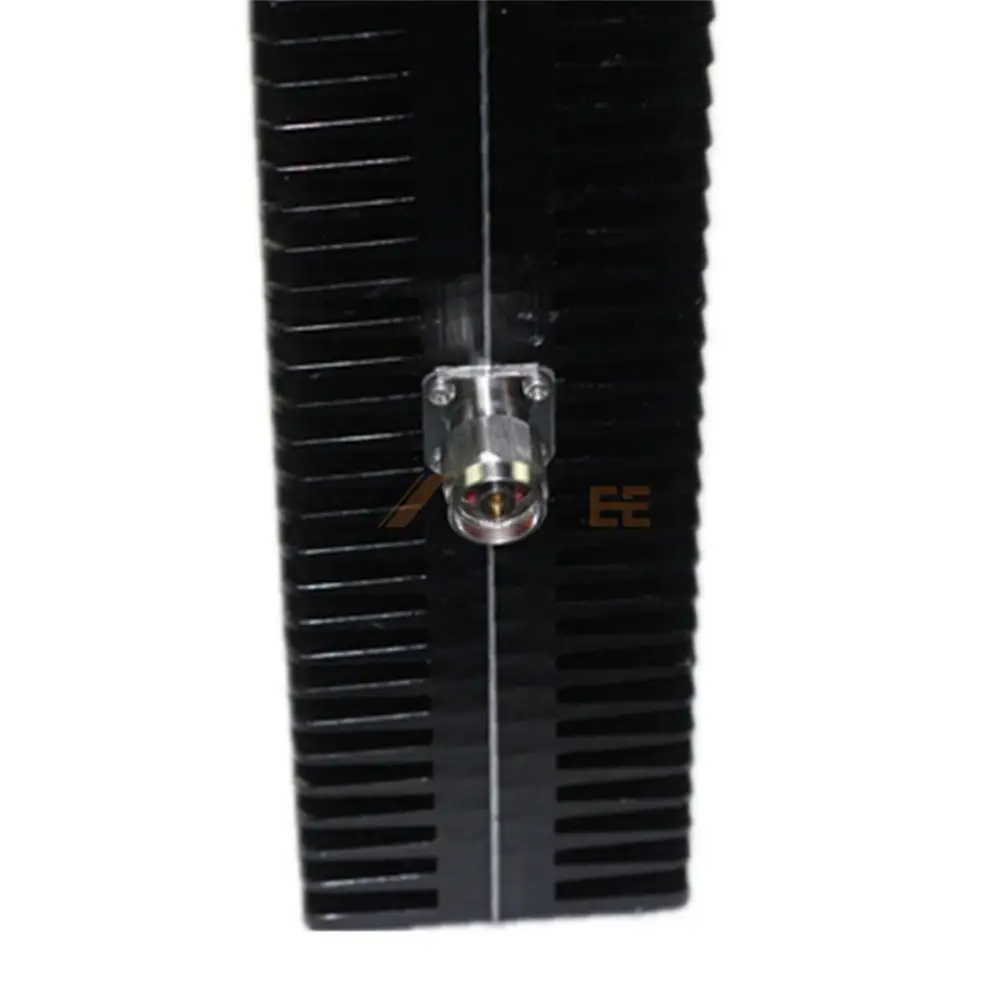

- Durable Connectors: N-type Male to N-type Female, Stainless Steel.
- Standard Impedance: 50 Ohms.
- Wide Operating Temperature: -55°C to 125°C.
- Robust Construction: IP20 Rated.
Main Specifications:
| Part No.: | 500W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 500W | |
| Attenuation: | 1DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 500W N-type Male to N-type Female Fixed High Power Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
