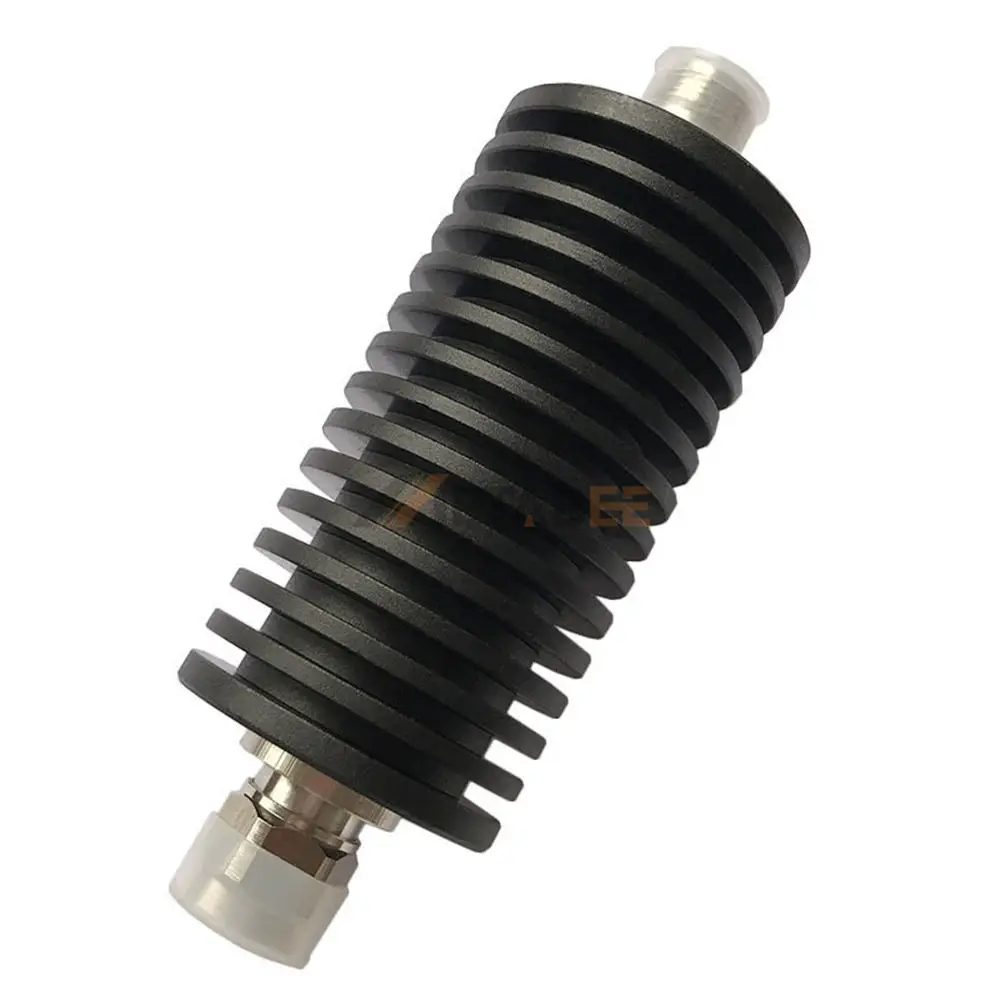

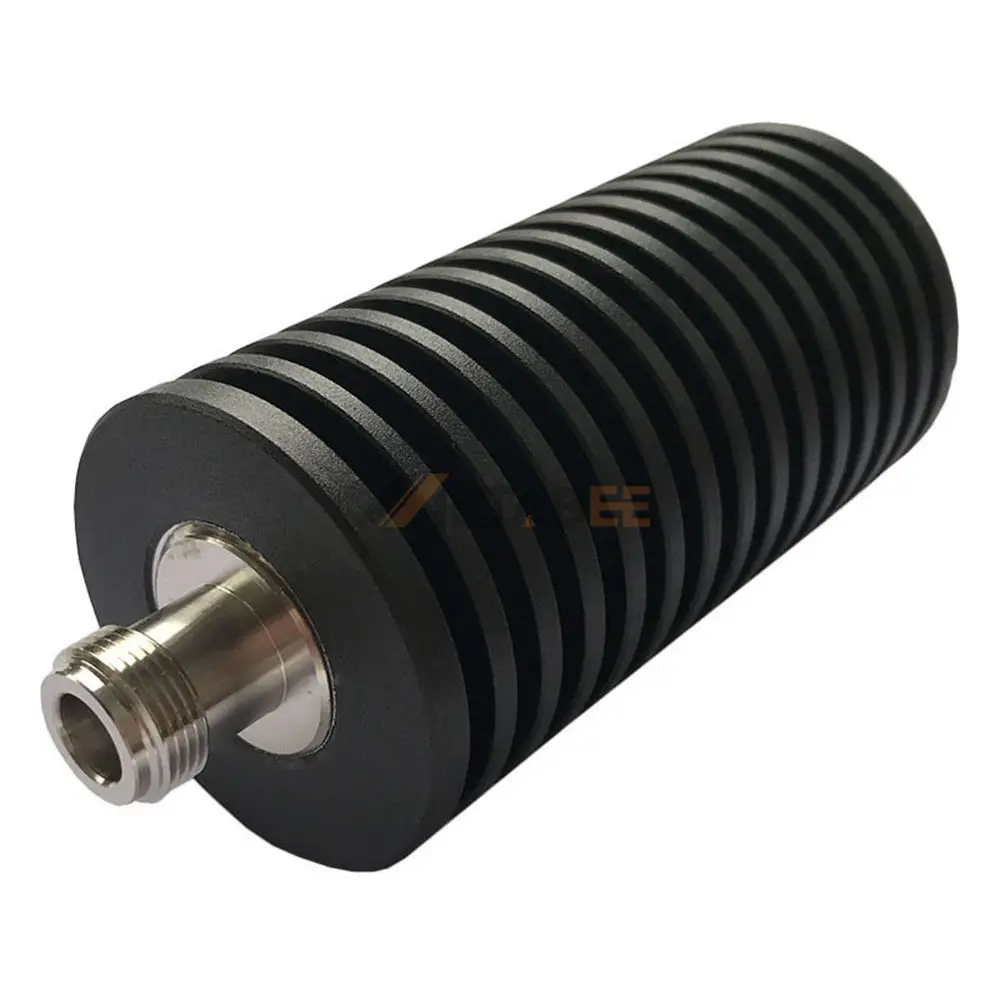

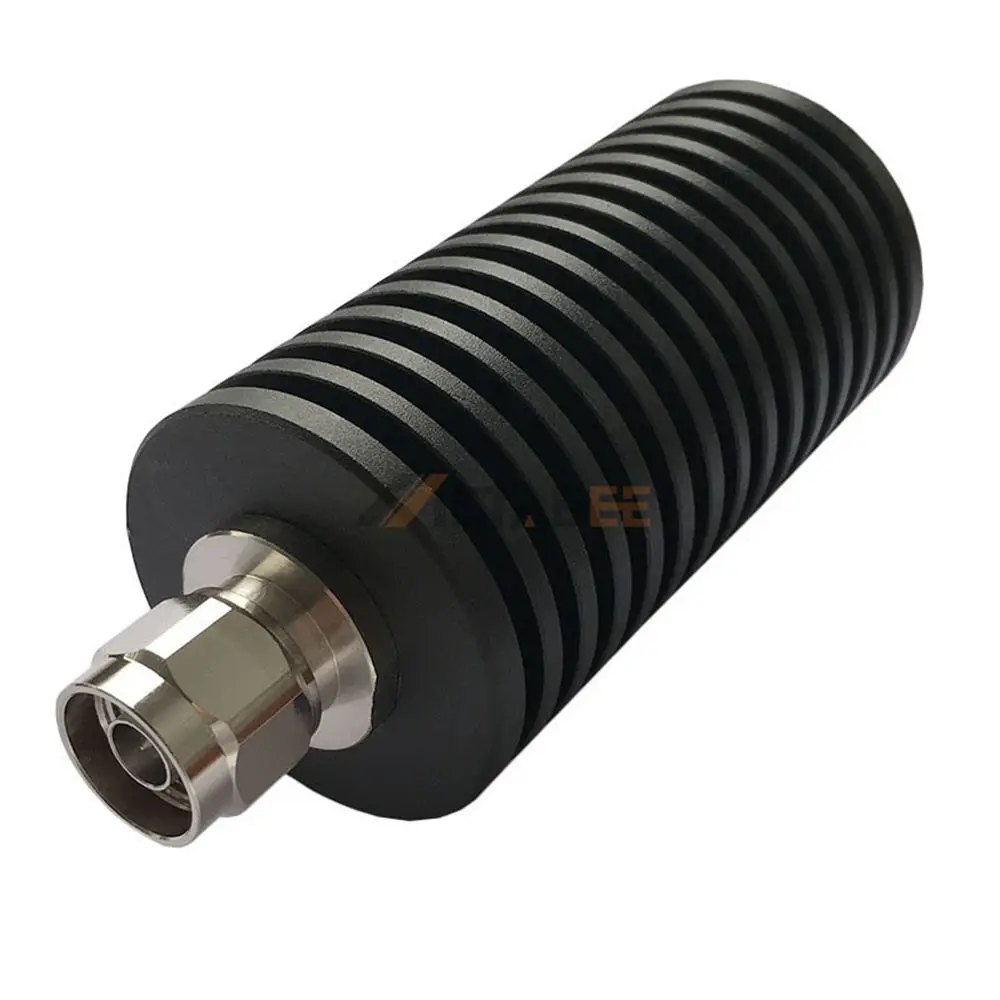

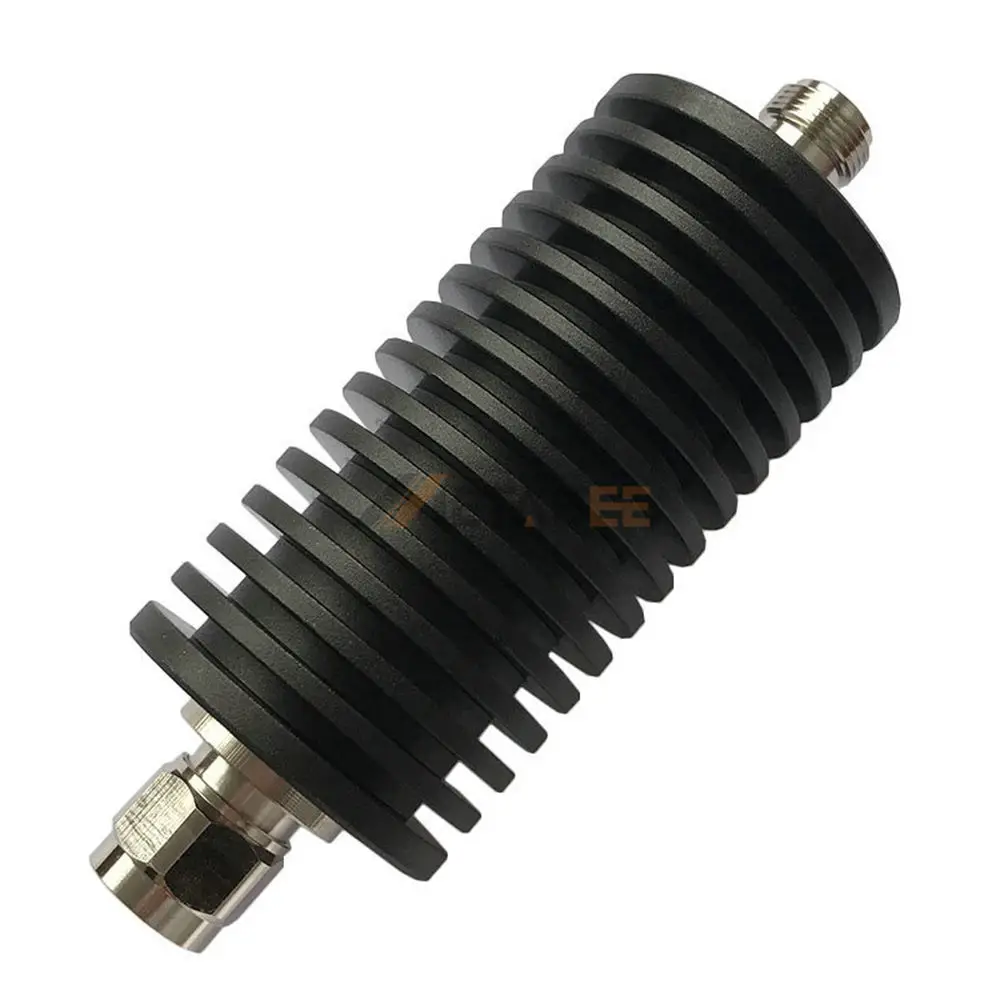

50 Watt N-type Male to N-type Female Fixed Attenuator, DC to 3GHz
Introduction
This 50-Watt N-type attenuator is engineered for high-performance RF signal attenuation across a wide frequency range from DC to 3GHz. With a consistent 50-ohm impedance and robust stainless steel housing, it delivers exceptional durability and electrical performance in demanding RF environments.
Designed to minimize signal power without introducing distortion, this attenuator supports applications in testing, broadcasting, and telecommunications. The precision-machined N-type connectors ensure secure connections, while the 1.20:1 VSWR guarantees stable operation with minimal signal reflection. The IP20 protection rating and a broad operating temperature range of -55°C to +125°C make it ideal for both indoor and semi-protected setups.
Key Features:
- Frequency range: DC to 3GHz.
- Power rating: 50 Watts continuous.
- Connector: N-type Male to N-type Female.
- Impedance: 50 Ohms.
- VSWR: ≤1.20:1 for stable signal performance.
- Housing: Stainless steel construction for high durability.
- Environmental: IP20 rating; -55°C to +125°C operating temperature.
Main Specifications:
| Part No.: | 50W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 50W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 50-Watt N-type Male to N-type Female Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
