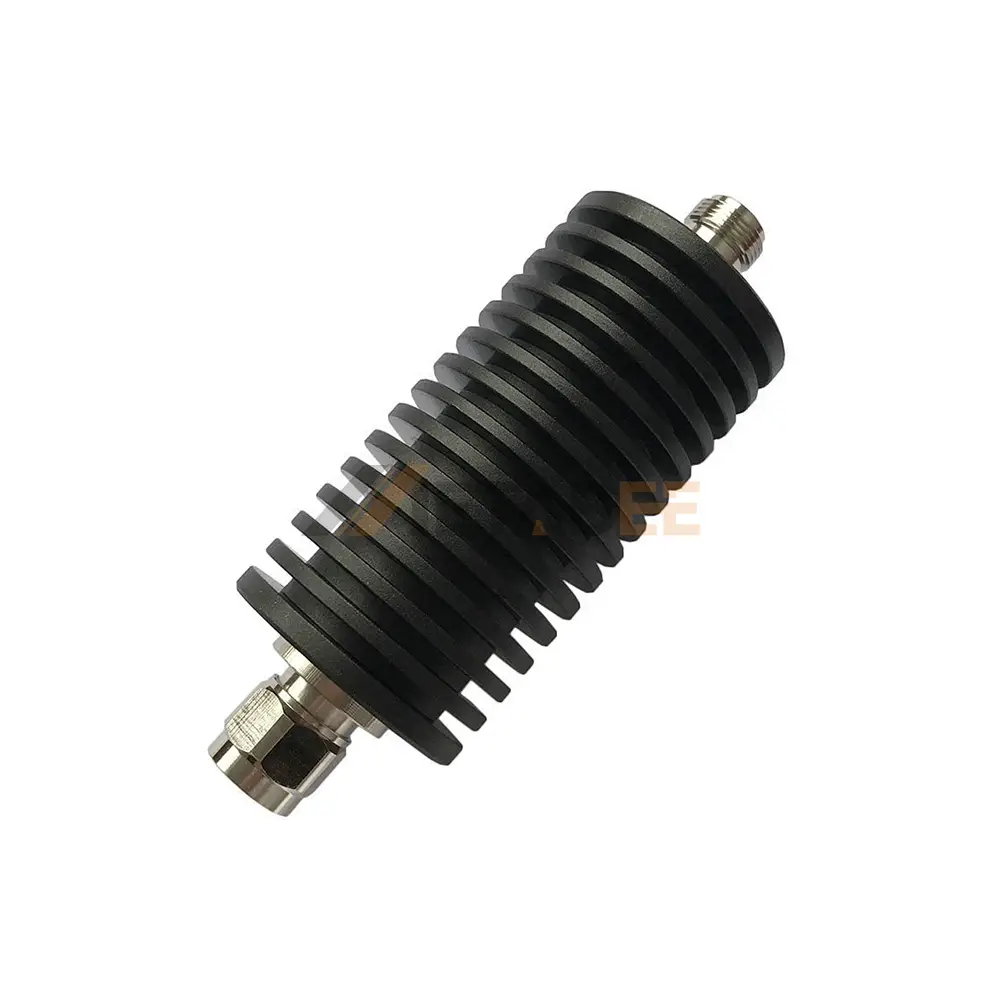

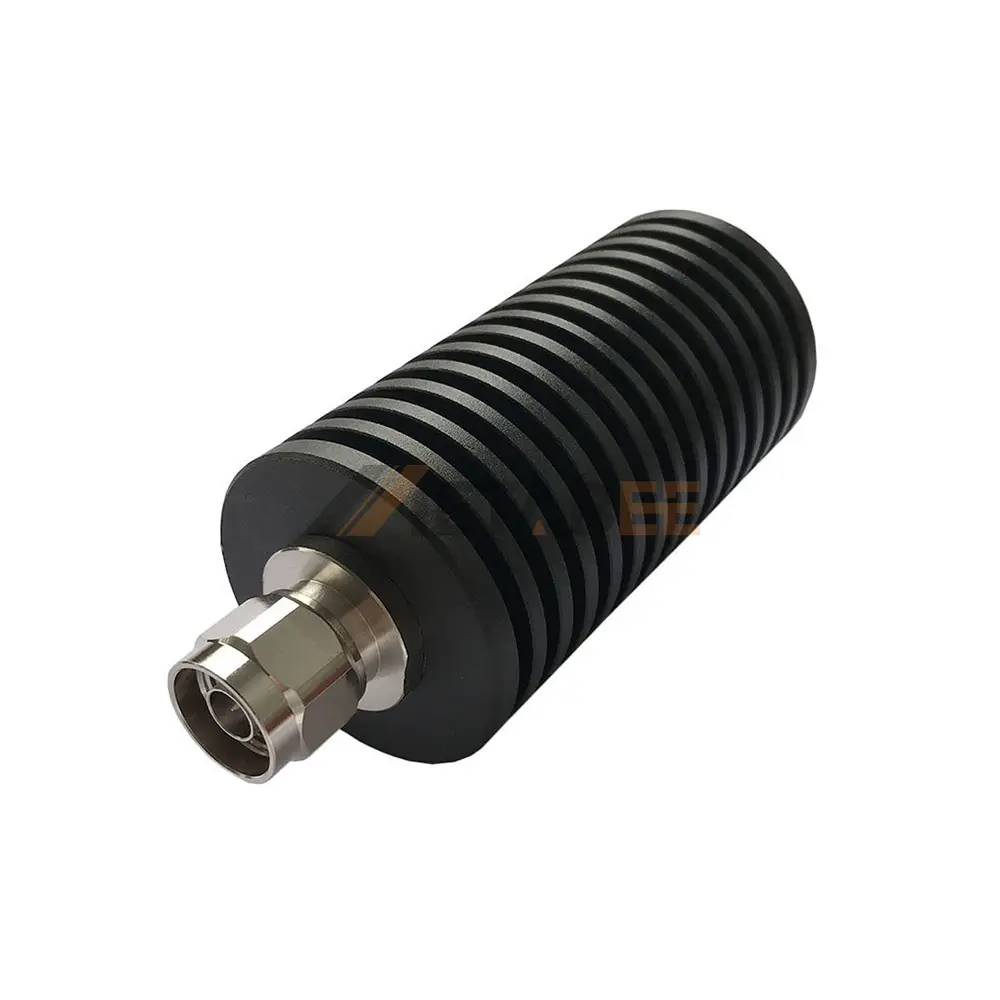

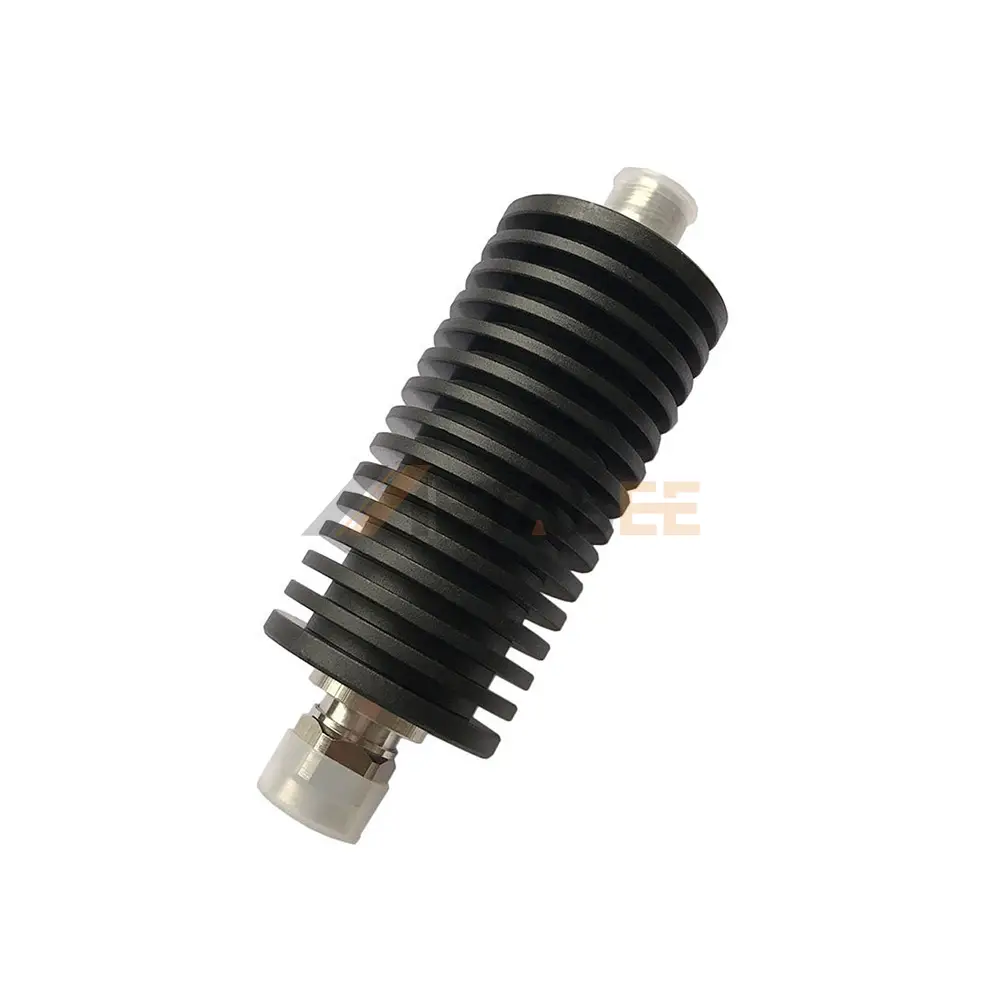

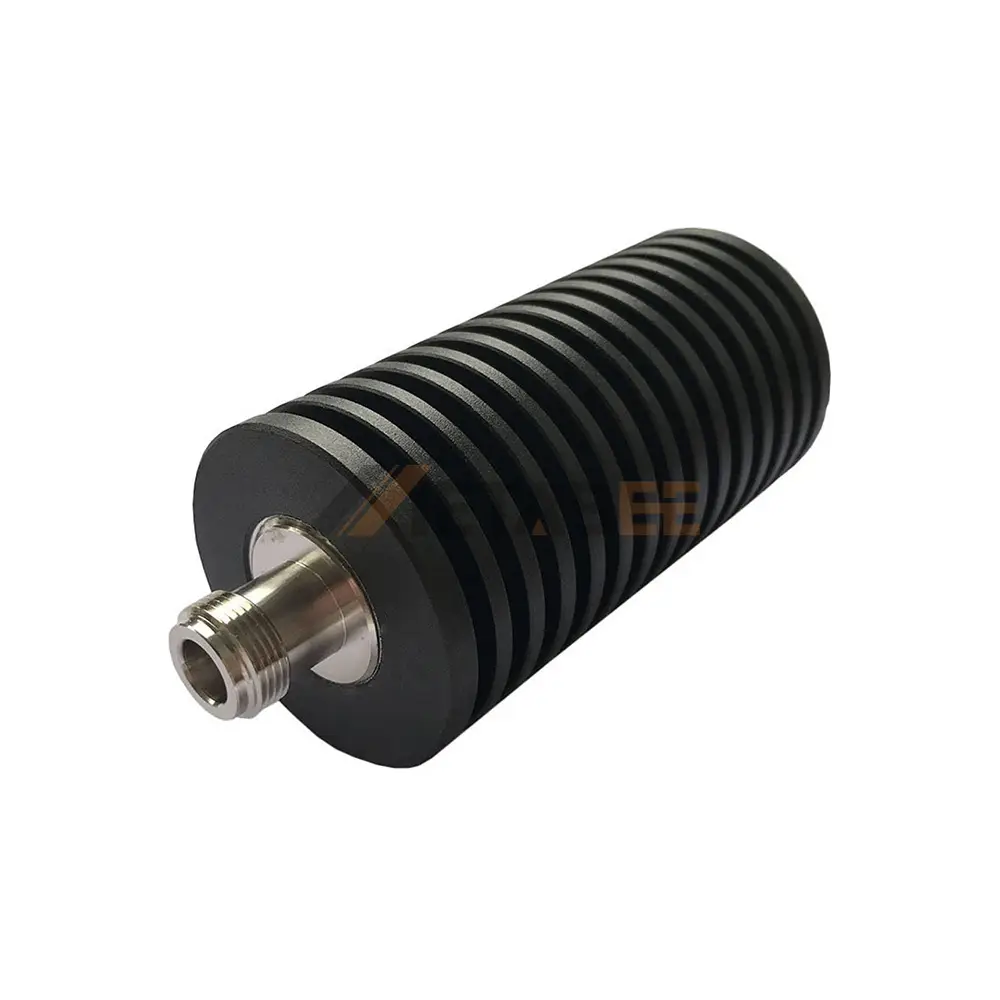

50 Watt N-type Male to N-type Female RF Fixed Attenuator, DC to 4GHz
Introduction
This 50-Watt N-type attenuator is a high-performance solution for managing signal levels in RF and microwave systems. Engineered with stainless steel connectors and housing, it ensures durability and long-term reliability in demanding environments. With a wide frequency range from DC to 4 GHz and a low VSWR of 1.20:1, this attenuator delivers consistent signal integrity across broad bandwidths.
Designed for systems requiring 50-ohm impedance matching, this N-type attenuator supports up to 50 watts of continuous power dissipation. Its IP20 rating and robust construction make it ideal for use in controlled indoor settings, while its wide operating temperature range of -55°C to +125°C guarantees dependable performance under extreme thermal conditions.
Key Features:
- Power Handling: Supports up to 50 Watts continuous RF power.
- Connector Type: N-type male to N-type female, stainless steel build.
- Frequency Range: Operates from DC to 4 GHz for broad compatibility.
- Impedance: 50-ohm system matching.
- VSWR: Low standing wave ratio of 1.20:1 ensures minimal signal reflection.
- Operating Temperature: -55°C to +125°C for wide environmental adaptability.
- Protection Rating: IP20 for indoor applications.
Main Specifications:
| Part No.: | 50W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 50W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 50 Watt N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
