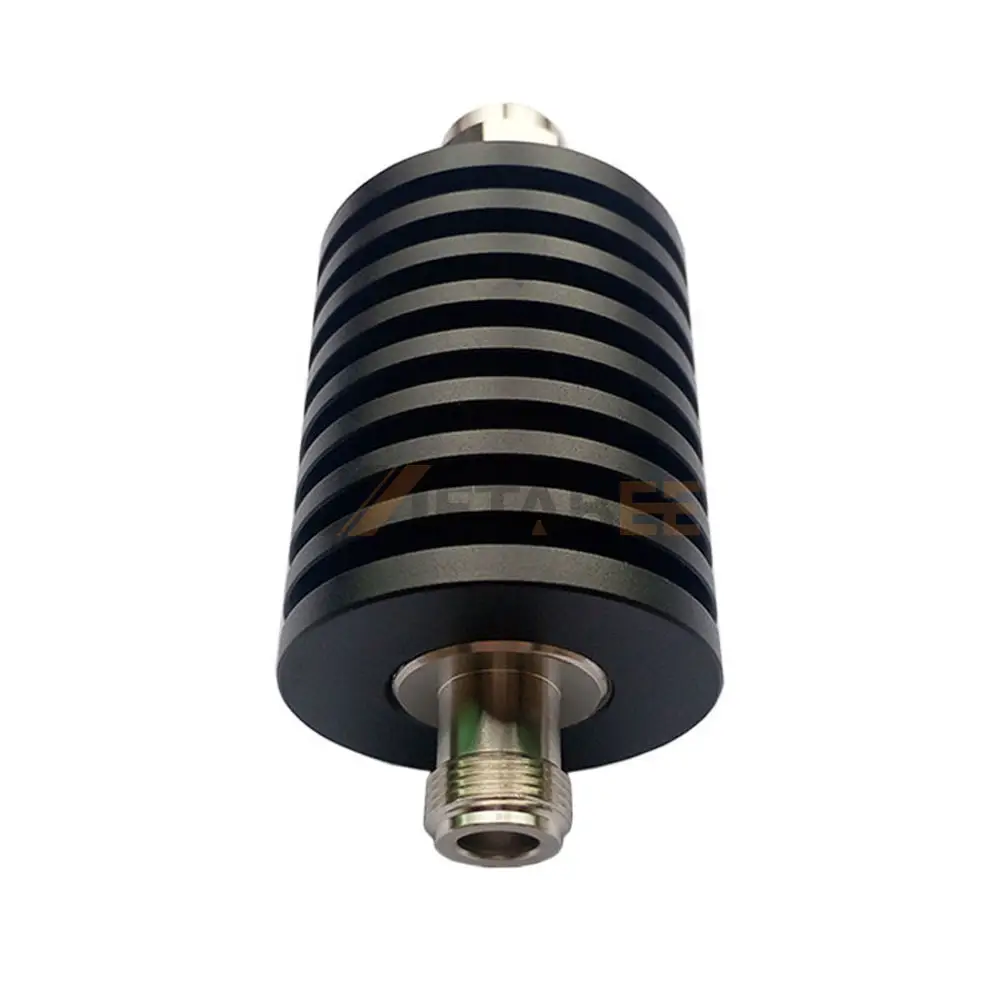

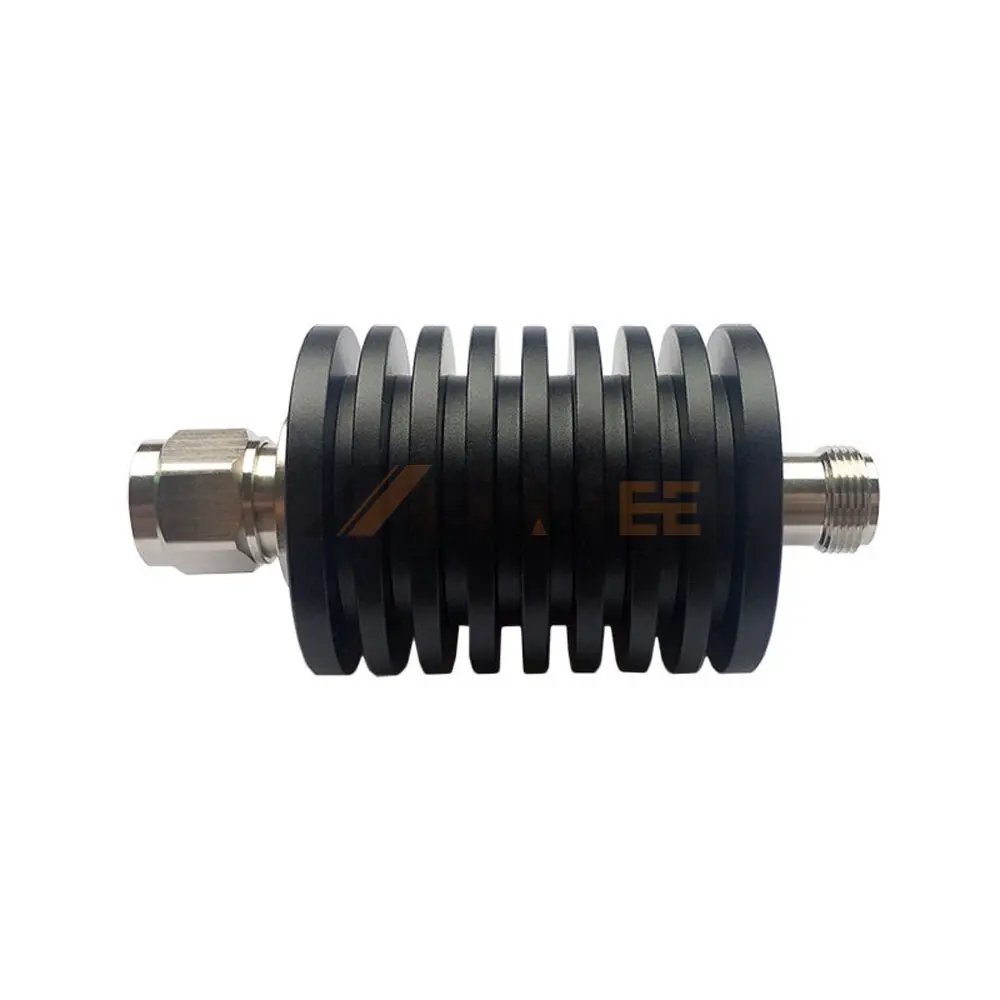

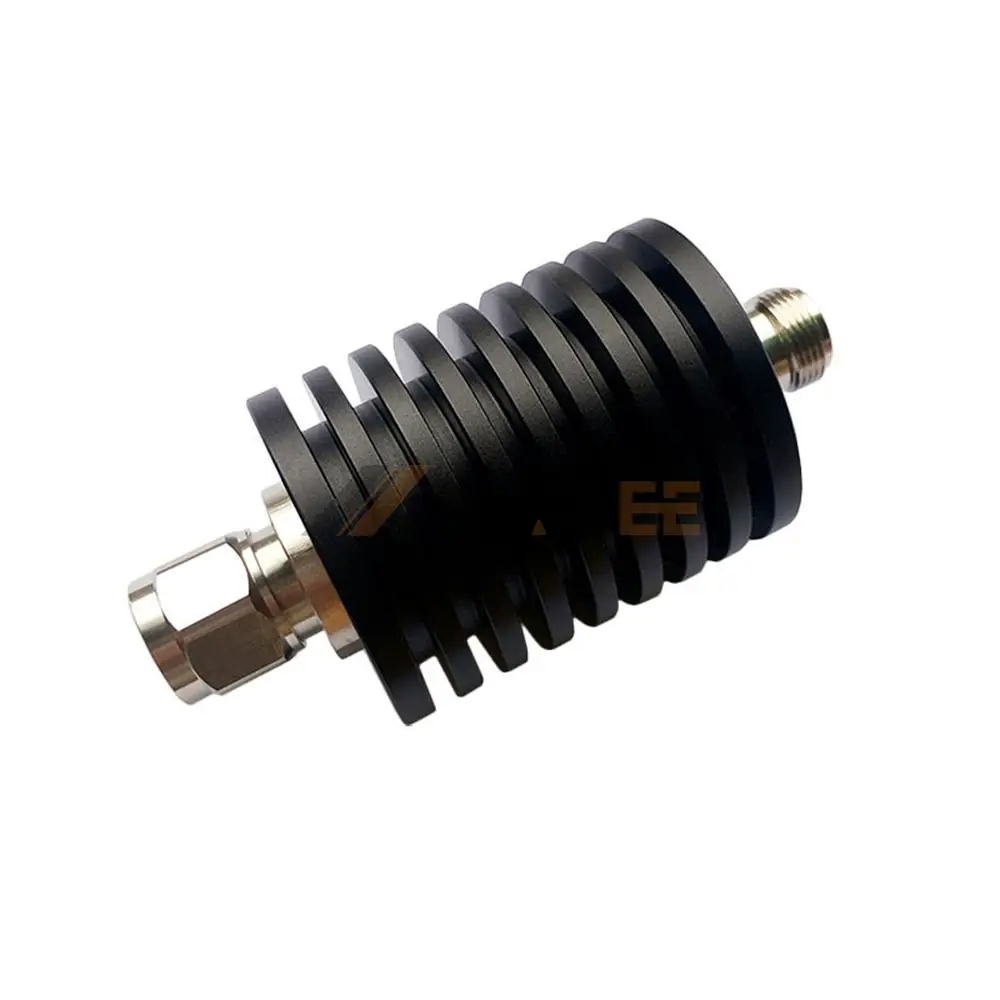

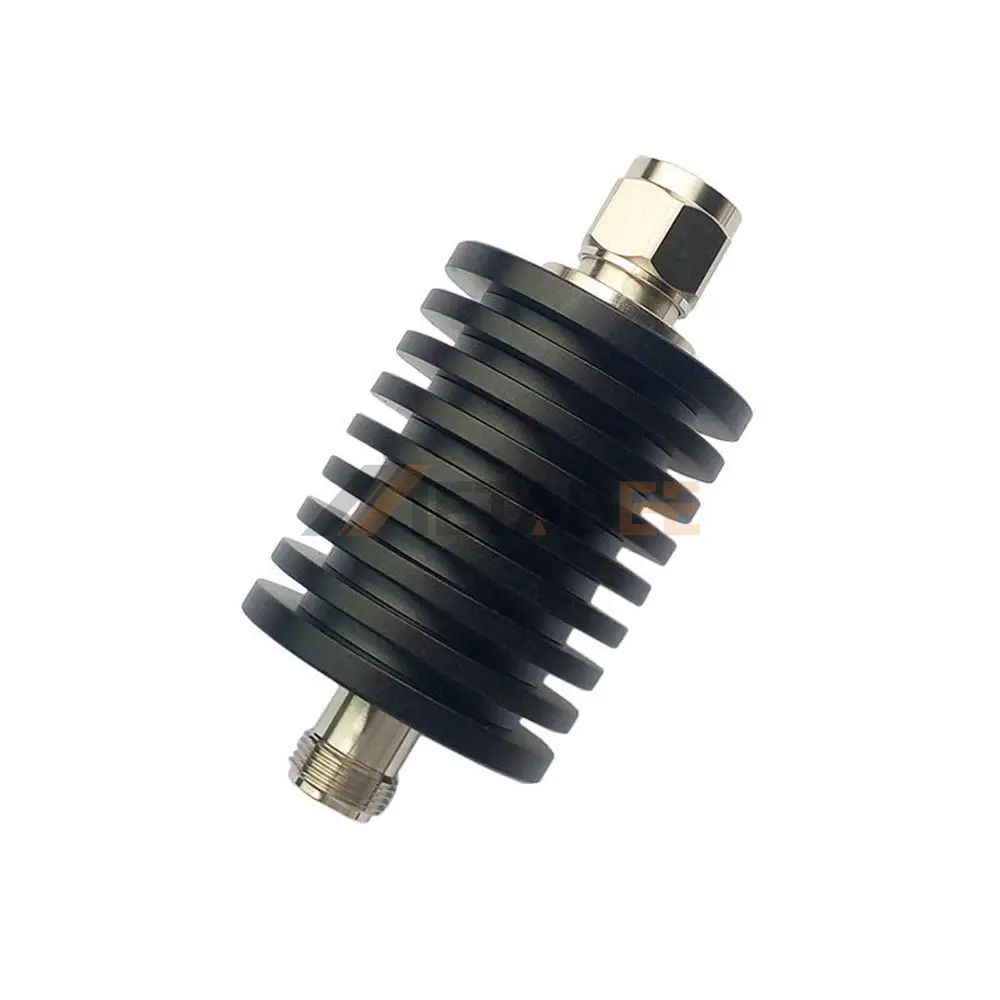

50W N-type Male to N-type Female Coaxial Fixed Attenuator, DC to 3GHz
Introduction
The 50-Watt N-type attenuator is designed for high-performance RF signal management in demanding environments. Operating from DC to 3GHz, this fixed attenuator ensures consistent signal attenuation while preserving signal integrity. It is ideal for test systems, telecommunications setups, and RF power control applications that require robust and stable performance.
Built with durable stainless steel housing and featuring precision-engineered N-type male to N-type female connectors, this attenuator delivers excellent durability and secure connections. With a 50-ohm impedance and a low VSWR of 1.20:1, it ensures minimal signal reflection and optimal power handling. The unit supports a maximum power rating of 50W and operates reliably across a wide temperature range from -55°C to +125°C. With an IP20 protection rating, this attenuator is suitable for indoor RF setups, offering long-term stability under standard operating conditions.
Key Features:
- Frequency Range: DC to 3GHz
- Power Handling: 50 Watts (continuous)
- Connector Type: N-type Male to N-type Female
- Impedance: 50 Ohms
- Low VSWR: 1.20:1 max
- Durable Stainless Steel Construction
- Operating Temp: -55°C to +125°C, IP20 rated
Main Specifications:
| Part No.: | 50W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 50W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 50W N-type Male to N-type Female Coaxial Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
