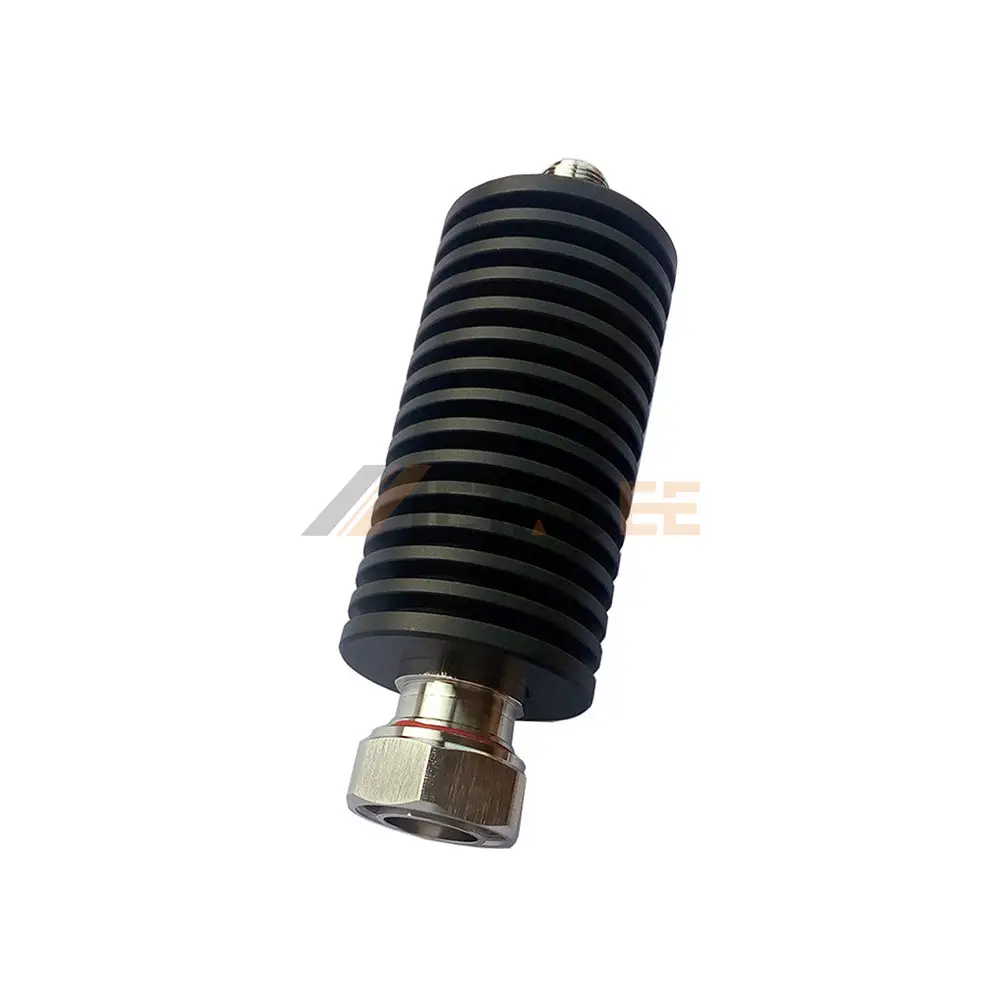

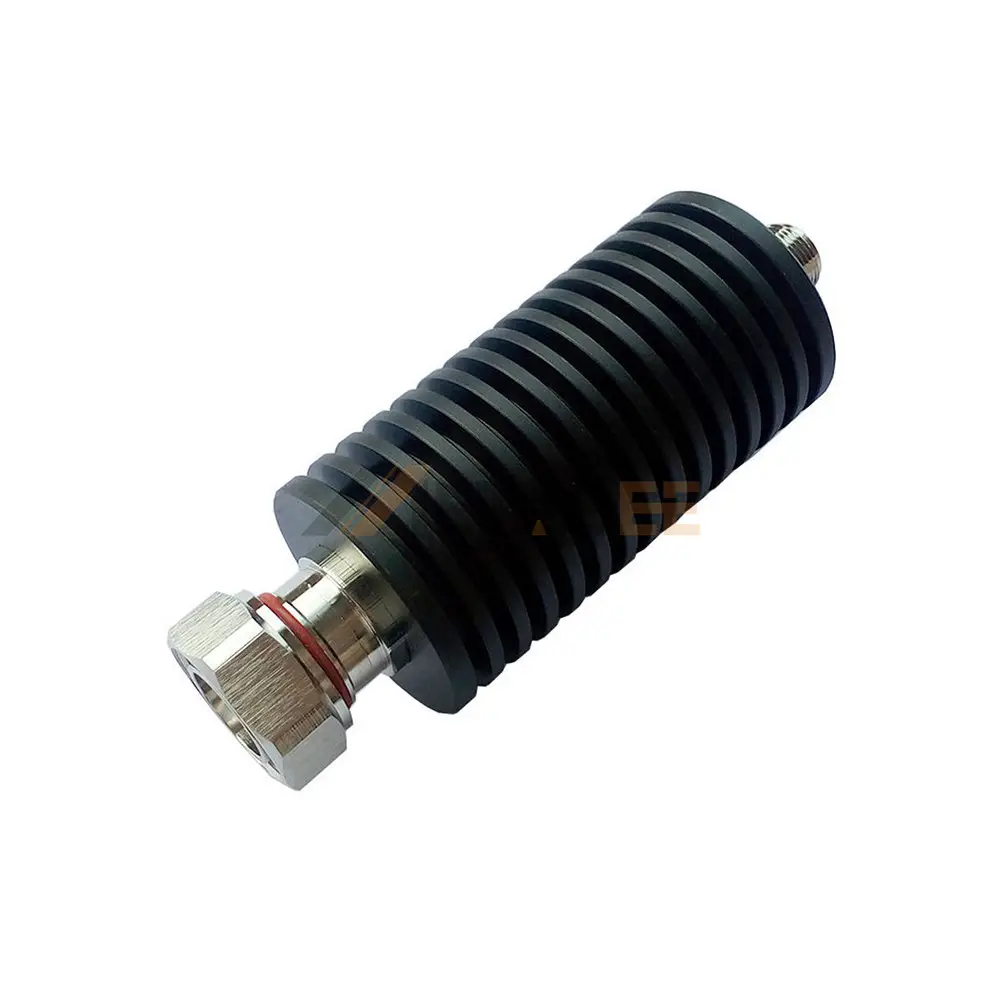

50W DIN Male to DIN Female Coaxial Fixed Attenuator, DC-4GHz

Introduction

This 50W DIN attenuator is engineered for precision and durability in demanding RF applications. With a broad frequency range of DC-4GHz and a 50-ohm impedance, it ensures reliable signal attenuation across a wide spectrum. Both the DIN male and DIN female connectors are constructed from robust stainless steel, providing excellent corrosion resistance and long-term stability.

Designed for consistent performance, this attenuator boasts a low Voltage Standing Wave Ratio (VSWR) of 1.20:1, minimizing signal reflection and maximizing power transfer efficiency. It operates flawlessly across a wide temperature range, from -55°C to 125°C, making it suitable for diverse environmental conditions. While rated at IP20 for protection, its high-quality construction ensures dependable operation in appropriate settings.

Key Features:

  • High Power Handling: 50W power rating.
  • Wide Frequency Range: DC to 4 GHz.
  • Low VSWR: 1.20:1 for minimal signal reflection.
  • Robust Construction: Stainless steel housing for durability.
  • Standard Impedance: 50 Ohms for optimal signal matching.
  • Broad Operating Temperature: -55°C to 125°C.
  • Versatile Connectivity: DIN Male to DIN Female.

Main Specifications:

Part No.:  50W-DIN-JK-4G
Product Series: DIN Attenuators
Brand: Metabee
Connector 1: DIN Connector
Connector 1 – Gender: Male
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Not Applicable
Connector 2: DIN Connector
Connector 2 – Gender: Female
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Plating: Not Applicable
Power Maximum: 50W
Attenuation:  1DB, 2DB, 3DB, 6DB, 10DB, 15DB, 20DB, 30DB
Impedance: 50 Ohm
VSWR: ≤1.20:1
Frequency(Max): 4 GHz
Operating Temperature: -55°C to +125°C
IP Rating: IP20
Other Feature: None


Applications of this 50W DIN Male to DIN Female Coaxial Fixed Attenuator:

  • Test & Measurement;
  • Telecommunications;
  • Satellite Systems;
  • Broadcast Equipment;
  • Military & Aerospace;
  • Medical Devices;
  • Wireless Networks;
  • RF Amplifiers;
  • Signal Generators.

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!

RF Attenuators
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF attenuators.
Product No.

50W-DIN-JK-4G

Product Series

DIN Attenuators

Product Name

50W DIN Male to DIN Female Coaxial Fixed Attenuator, DC-4GHz

Brand

Metabee

Connector 1

DIN Connector

Connector 1 - Gender

Male

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Not Applicable

Connector 2

DIN Connector

Connector 2 - Gender

Female

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Not Applicable

Max Power

50W

Attenuation

1DB, 2DB, 3DB, 6DB, 10DB, 15DB, 20DB, 30DB

Impendence

50 Ohm

Frequency(Max)

0-4 GHz

VSWR

≤ 1.20:1

IP Rating

IP20

Operating Temperature

-55ºC to +125 ºC

Other Features

None
