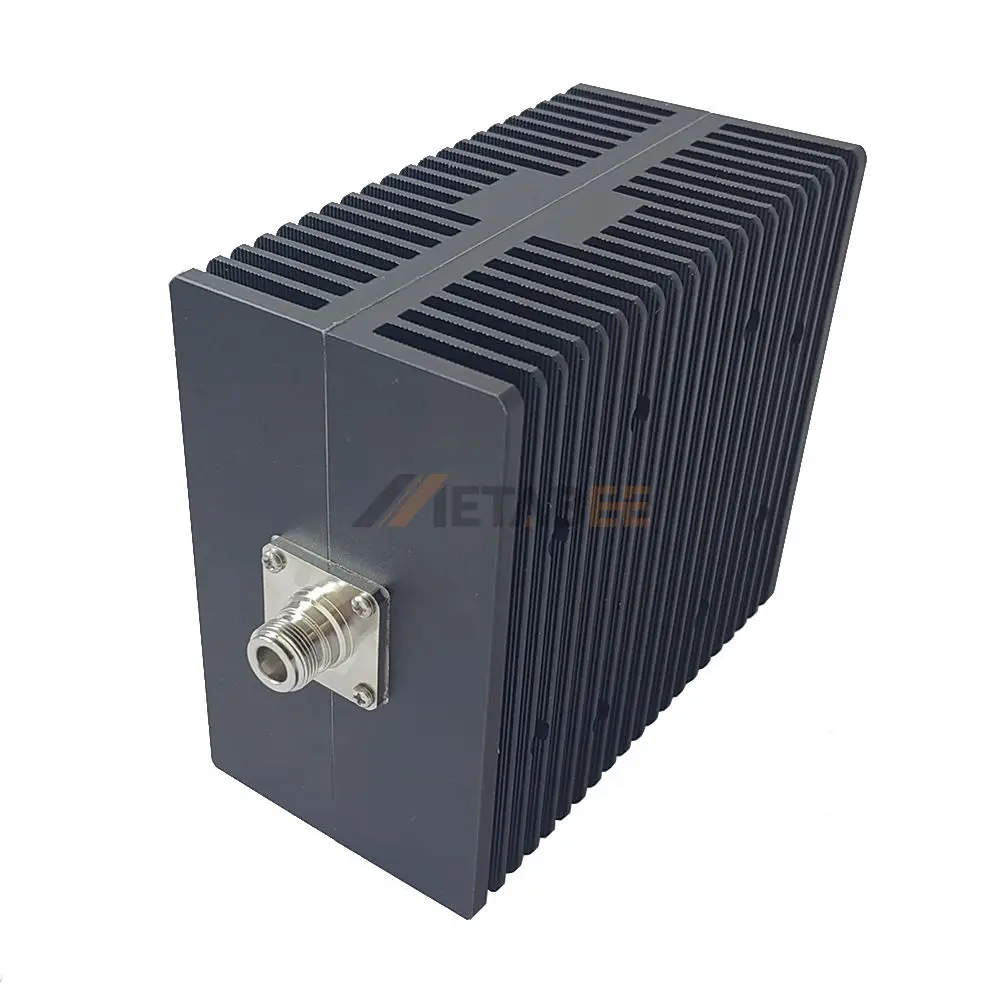

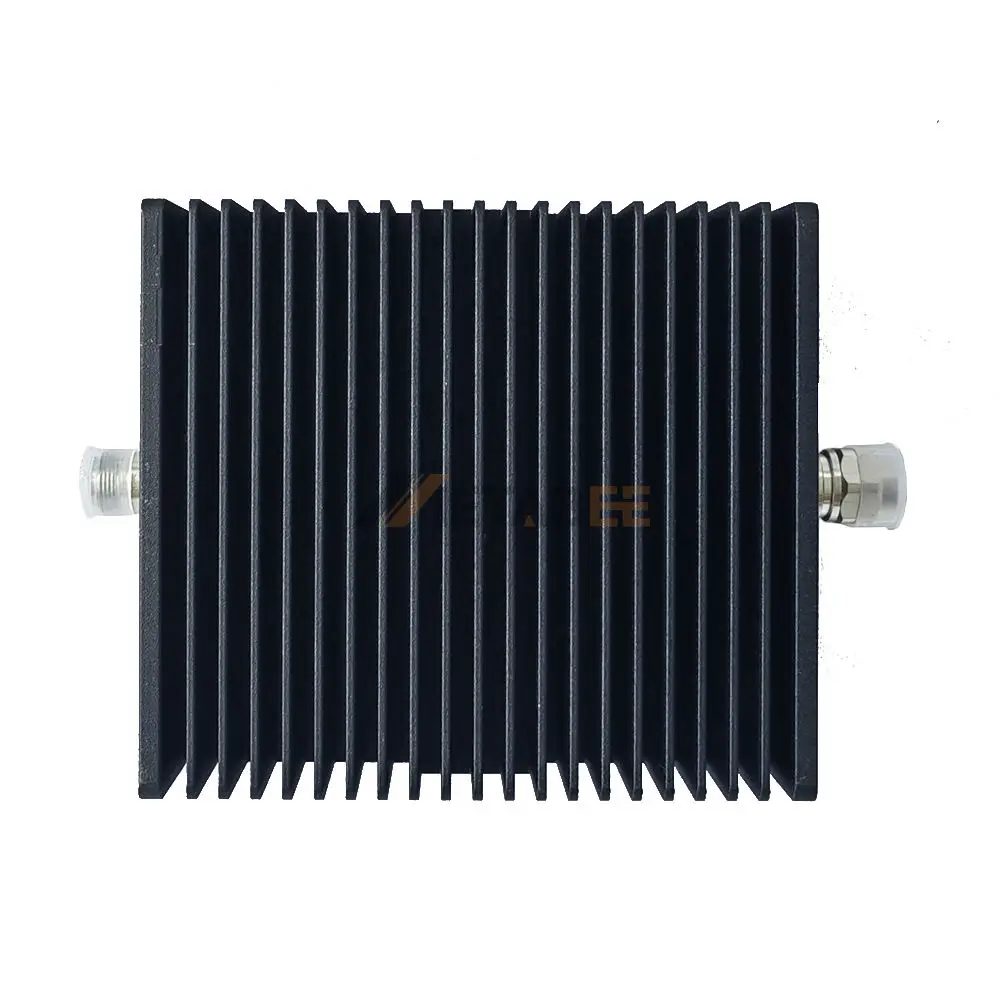

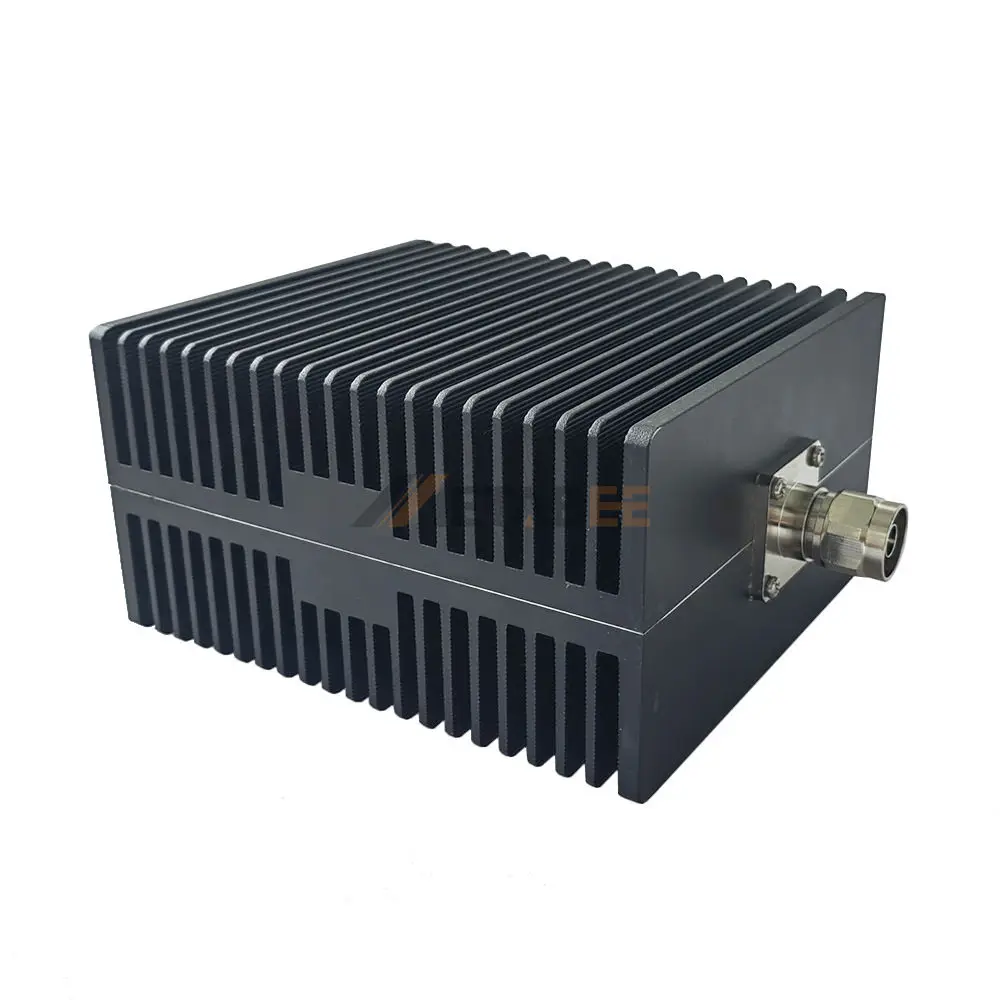

150W N-type Male to N-type Female RF Fixed Attenuator, DC to 4GHz
Introduction
The 150W N-type attenuator is a high-performance component designed for precise signal reduction in RF applications. With a frequency range of DC to 4GHz and a power handling capacity of 150W, this attenuator ensures reliable performance in demanding environments. It’s 50-ohm impedance minimizes signal reflections, while the low 1.20:1 VSWR guarantees excellent signal integrity. The robust stainless steel housing provides durability and shielding, making it ideal for industrial, military, and telecommunications use.
Engineered for versatility, this N-type attenuator operates in extreme temperatures from -55°C to +125°C and features an IP20 protection rating. The N-type male to N-type female connectors ensure secure, low-loss connections, maintaining signal stability across high-power applications. Whether for testing, broadcasting, or wireless systems, this attenuator delivers consistent attenuation with minimal insertion loss.
Key Features:
- 150W high power handling.
- DC to 4GHz frequency range.
- 50-ohm impedance for minimal reflections.
- Low 1.20:1 VSWR.
- Stainless steel housing for durability.
- Wide operating temperature (-55°C to +125°C).
- N-type male to female connectors.
Main Specifications:
| Part No.: | 150W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 150W | |
| Attenuation: | 1DB, 2DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB, 50DB, 60DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 150W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
