20 Pin DisplayPort Female Connector, PCB-Surface Mount, R/A, Peg & Board Locks
Introduction:
This 20 pin DisplayPort female connector features a right-angle, PCB-surface mount footprint packed in protective industrial trays. It integrates dedicated alignment pegs with solderable board locks, guaranteeing precise component placement and preventing trace separation under harsh cable mating stress. The body uses UL 94V-0 rated high-temperature thermoplastic to withstand lead-free reflow heating without distortion across a -40°C to +85°C range. Gold flash plated brass contacts keep contact resistance strictly under 30 mohms for high-frequency video continuity. Typical deployments include industrial automation PCs, professional graphics output cards, multi-display video walls, and medical diagnostic monitors.
Key Features
- Peg & Board Locks: Anchors connector securely to prevent pad tear-off.
- Surface Mount R/A: Saves overhead board space in low-profile enclosures.
- UL 94V-0 Housing: Resists reflow temperatures from -40°C to +85°C.
- Gold Flash Contacts: Delivers under 30 mohms resistance for video signals.

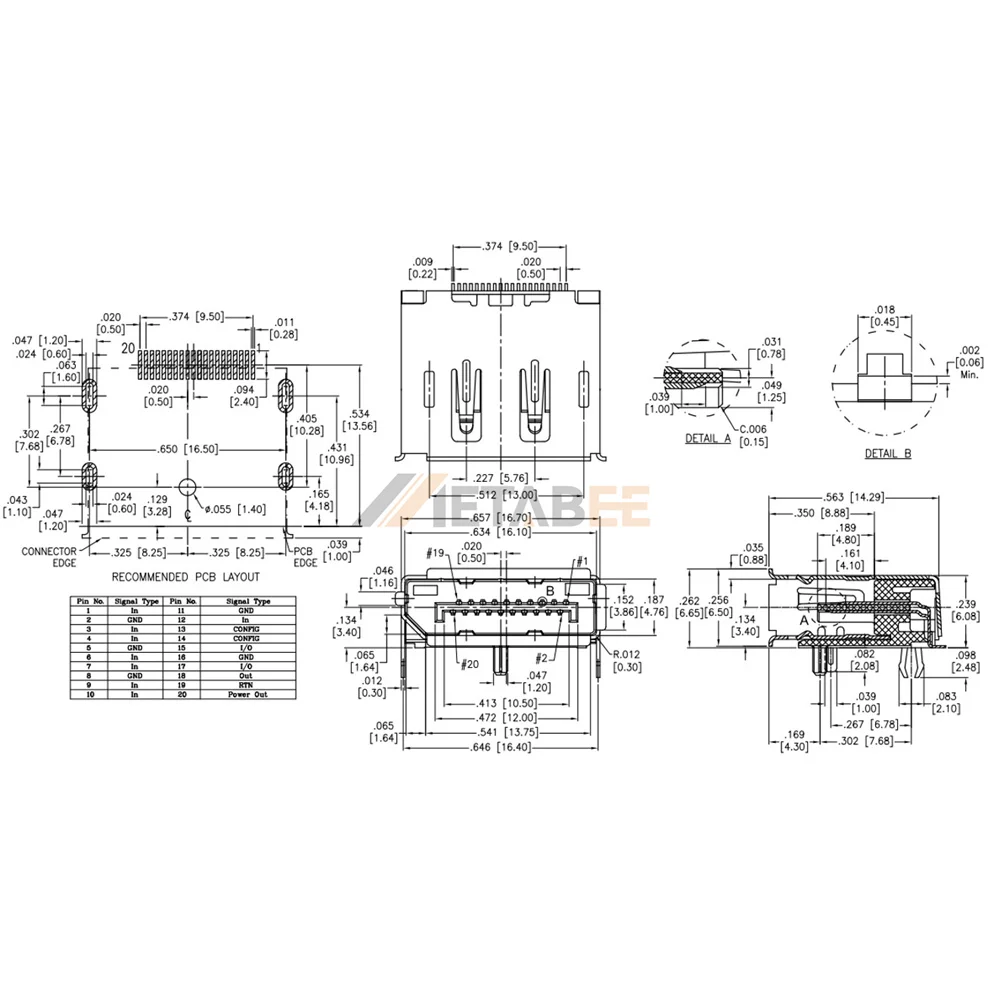

Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-SMT-P-BL | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Peg & Board Locks | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
