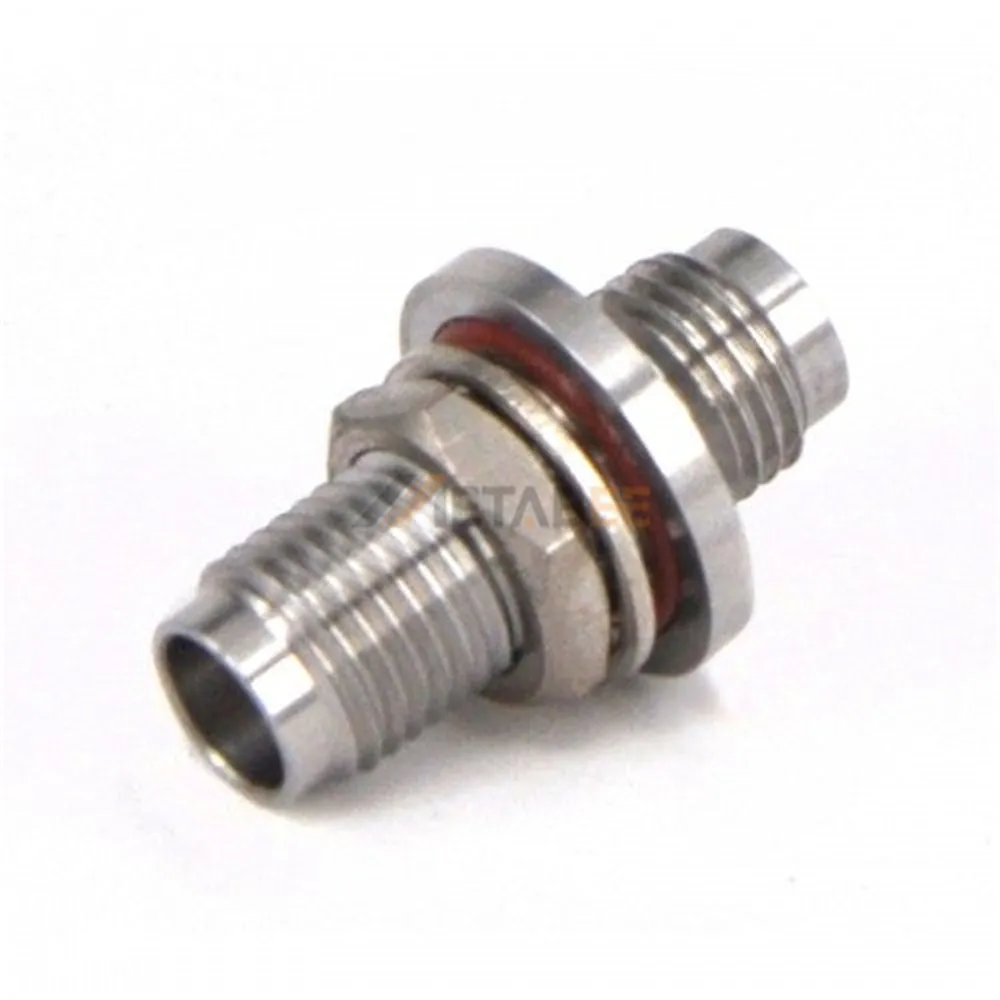

2.4mm Female to 2.4mm Female Bulkhead Adapter, DC-50 GHz
Introduction
The 2.4mm female to 2.4mm female bulkhead adapter is a high-performance RF adapter designed for precision connectivity in demanding applications. This straight-mounted adapter features two 2.4mm female connectors, ensuring seamless signal transmission with a 50-ohm impedance match. Constructed with durable stainless steel housings and passivated plating, it offers excellent corrosion resistance and long-term reliability. With an impressive frequency range of DC to 50 GHz and a low VSWR of 1.25:1, this adapter minimizes signal loss and maintains signal integrity in high-frequency environments.
Ideal for test equipment, aerospace, and telecommunications, this adapter operates reliably across a wide temperature range of -50°C to 85°C. Its robust bulkhead design ensures secure panel mounting, making it suitable for both laboratory and industrial use. Whether for RF testing or high-speed data transmission, this adapter delivers consistent performance with minimal insertion loss.
Key features:
- 2.4mm Female to 2.4mm Female – Ensures precise RF connectivity
- 50 Ohm Impedance – Maintains signal integrity
- Stainless Steel Housings – Durable and corrosion-resistant
- Passivated Plating – Enhances longevity
- DC-50 GHz Frequency Range – Supports ultra-high-frequency applications
- Low VSWR (1.25:1) – Reduces signal reflection
- Wide Operating Temperature (-50°C to 85°C) – Reliable in extreme conditions
Main Specifications:
| Product No: | YC-2.4-KYKS | |
| Product Series: | 2.4mm Adapters | |
| Adapter Type: | 2.4mm to 2.4mm | |
| Brand: | Metabee | |
| Orientation: | Straight | |
| Connector 1 | 2.4mmConnector | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Passivated | |
| Connector 2: | 2.4mm Connector | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Material: | Passivated | |
| Mount Method: | Panel Mount-Bulkhead | |
| Impedance: | 50 Ohm | |
| VSWR: | 1.25:1 | |
| Frequency Range: | DC-50 GHz | |
| Operating Temerature: | -50 ºC to +85 ºC | |
| Other Feature: | None |
Applications of this 2.4mm Female to 2.4mm Female Bulkhead Adapter:
2.4 mm adapters are commonly used in RF and microwave applications, particularly where coaxial connectors are required.
Here are some applications:
- Radar Systems;
- Test and Measurement Equipment;
- Satellite Communications;
- Microwave Communications;
- Aerospace and Defense.
We can customize this RF Adapter according to your special requirements. Get a free quotation now!
