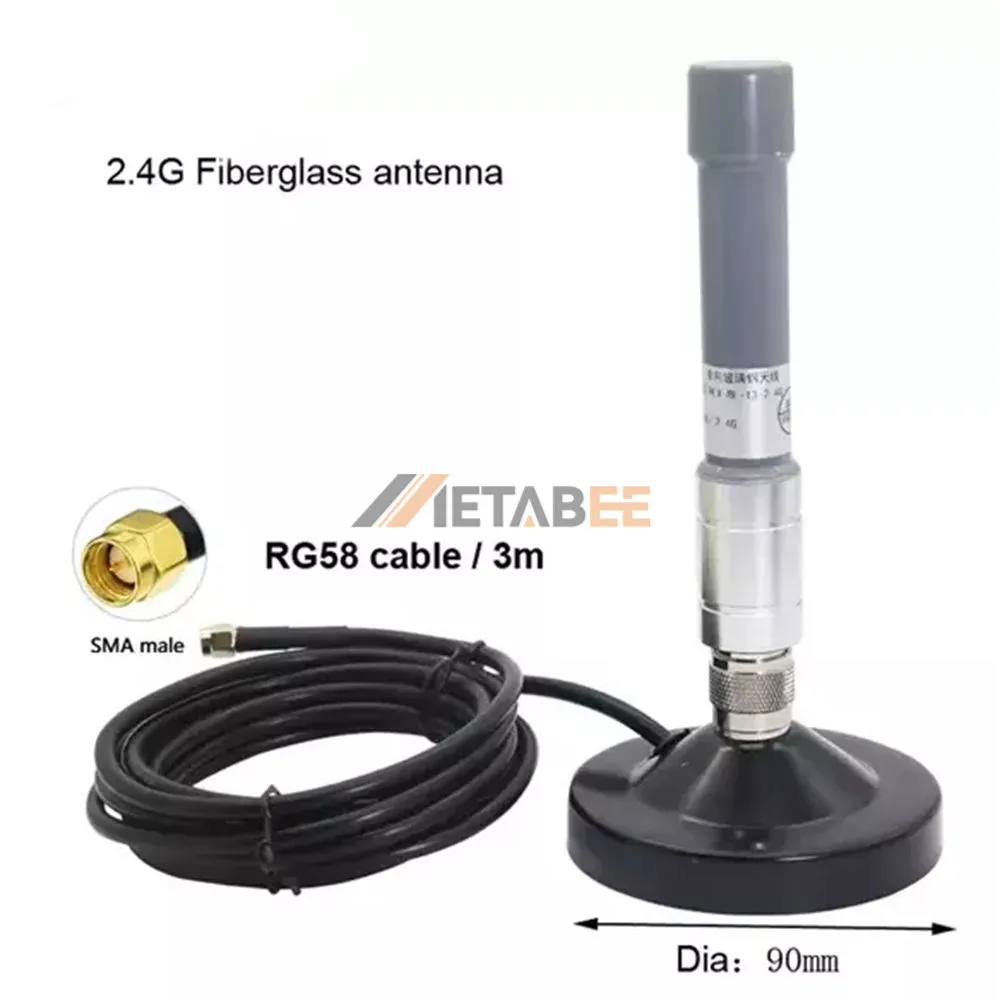

2.4GHz Outdoor Fiberglass Antenna with 3m RG58 Cable, SMA Male, IP65
Introduction:
Elevate your wireless connectivity with this robust 2.4GHz fiberglass antenna, designed for reliable performance in diverse outdoor environments. Featuring a 3dBi gain and an omni-directional radiation pattern, this antenna ensures broad and consistent signal coverage, making it ideal for a wide range of 2.4GHz wireless applications, including Wi-Fi, IoT, and other industrial or commercial deployments requiring stable and extensive reach. Its vertical polarization and efficient design guarantee optimal signal transmission and reception.
Crafted for durability, the antenna boasts a high-strength Fiberglass radome and an IP65 rating, providing exceptional protection against dust and water ingress. It operates reliably across a wide temperature range from -40°C to 85°C and can withstand wind speeds up to 60 m/s, making it suitable for challenging weather conditions. With a 50 Ohm impedance, a maximum input power of 50W, and built-in DC grounding for lightning protection, this antenna ensures both performance and safety. It comes equipped with a convenient 3-meter RG58 cable terminated with an SMA Male connector for easy installation.
Key Features
- Optimized 2.4GHz Performance: Specifically designed for the 2.4GHz band with 3dBi gain, ensuring reliable wireless communication.
- Omni-directional Coverage: Provides 360-degree signal propagation for extensive and uniform network reach.
- Exceptional Durability: Features a Fiberglass radome and an IP65 rating, resistant to harsh weather, dust, and water.
- Wide Temperature Range: Operates efficiently from -40°C to 85°C, ensuring performance in extreme climates.
- Built-in Protection: Includes DC grounding for lightning protection and withstands strong winds up to 60 m/s.
- Easy Connectivity: Equipped with an SMA Male connector and a 3m RG58 cable for straightforward integration.
Main Specifications:
General Information:
| Product No.: | YC-FG10029 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4GHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 2.4GHz Outdoor Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
