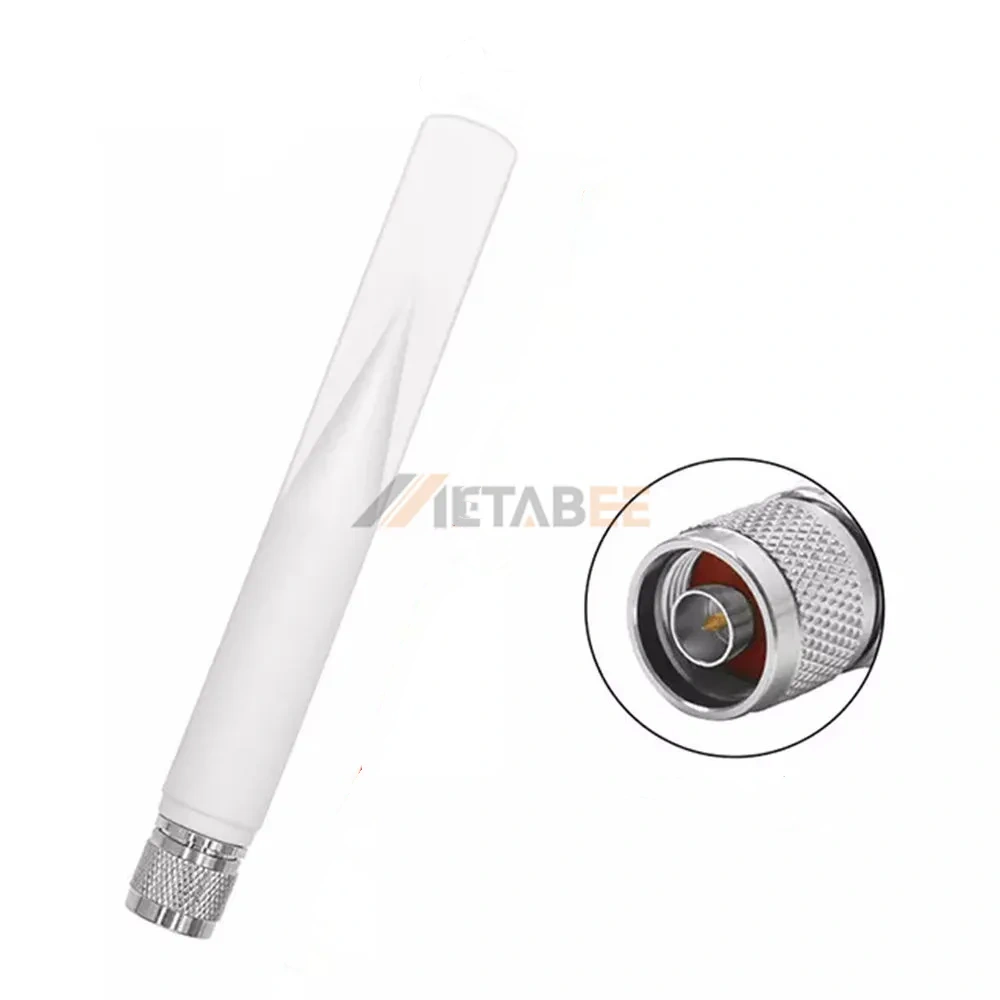

2.4GHz 5dBi Omni Fiberglass Antenna, N-Male, IP65
Introduction:
The 2.4GHz 5dBi omni fiberglass antenna is engineered for stable and efficient wireless performance across the 2.4GHz band. With a 5dBi gain and omni-directional radiation pattern, it delivers uniform 360° signal coverage, making it ideal for WiFi, IoT, and industrial communication systems. The antenna features vertical polarization and a low VSWR of ≤1.5, ensuring optimized signal transmission, reduced return loss, and enhanced network reliability.
Built with a durable fiberglass radome, this antenna is designed to withstand harsh outdoor environments. It supports a maximum input power of 50W and maintains a standard 50 Ohm impedance for seamless integration with RF systems. The N-male connector ensures secure and stable connectivity, while its IP65 rating provides excellent protection against dust and water ingress. Operating reliably in extreme temperatures from -40°C to 85°C, it also offers strong wind survivability up to 60 m/s and includes DC grounding for effective lightning protection.
Key Features
- 2.4GHz frequency band optimized for WiFi and ISM applications

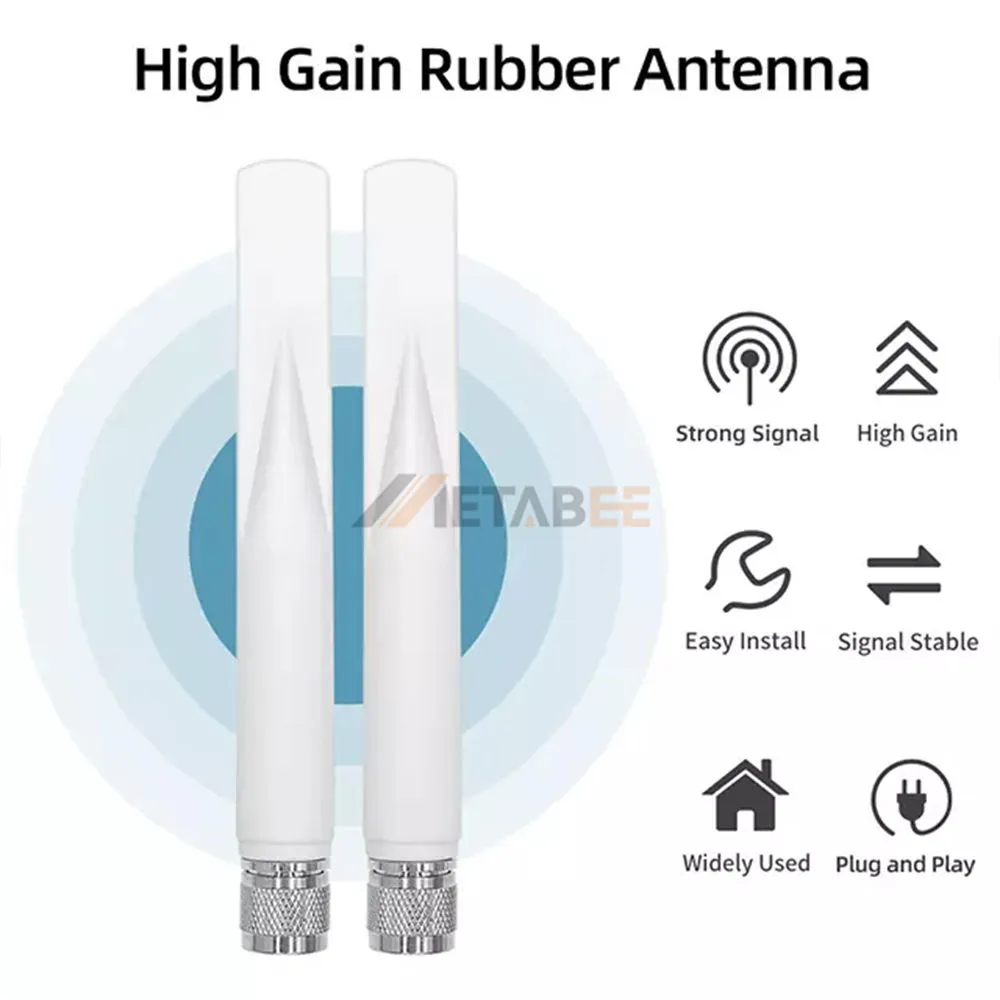

- 5dBi gain with omni-directional 360° coverage
- Low VSWR ≤1.5 for efficient signal transmission

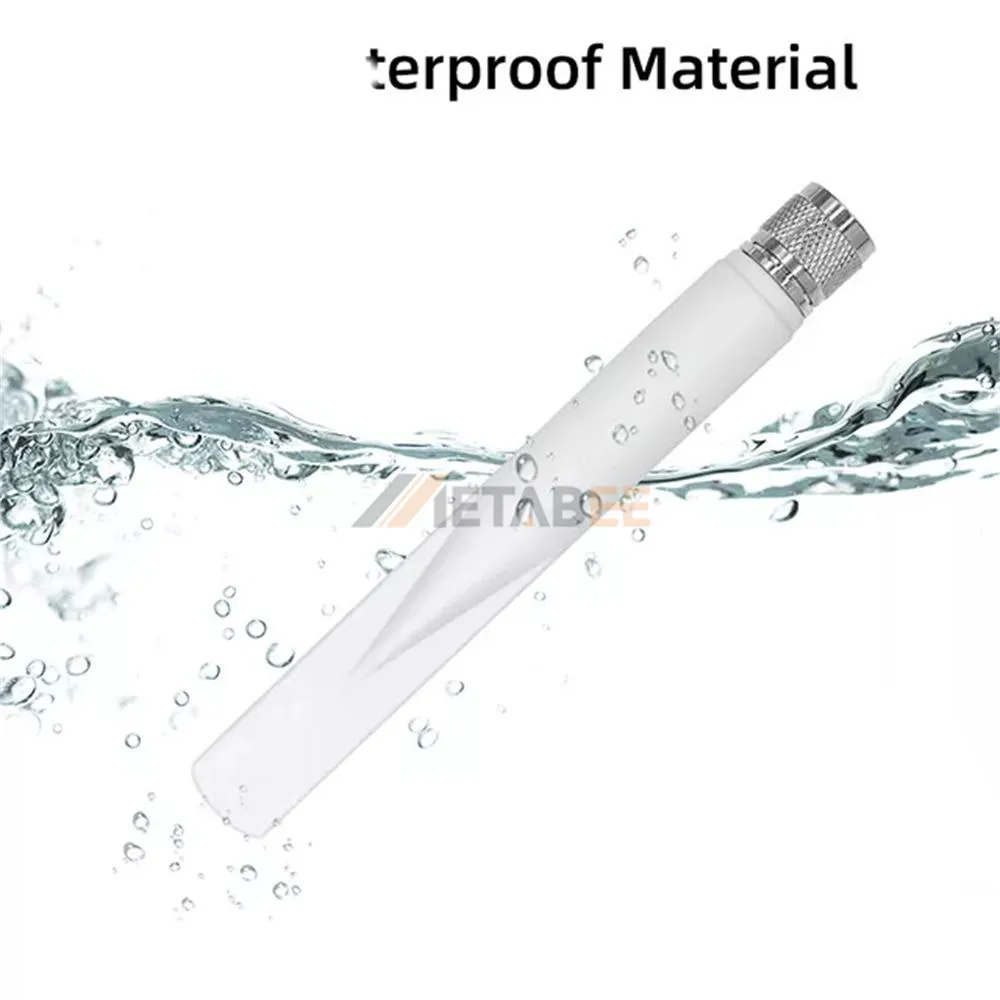

- Rugged fiberglass radome with IP65 weatherproof rating
- N-male connector with 50 Ohm impedance for stable connectivity
- Wide operating temperature range and lightning protection (DC grounding)
Main Specifications:
General Information:
| Product No.: | YC-FG00001 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 250*20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4GHz | |
| Gain: | 5 dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 2.4GHz 5dBi Omni Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
