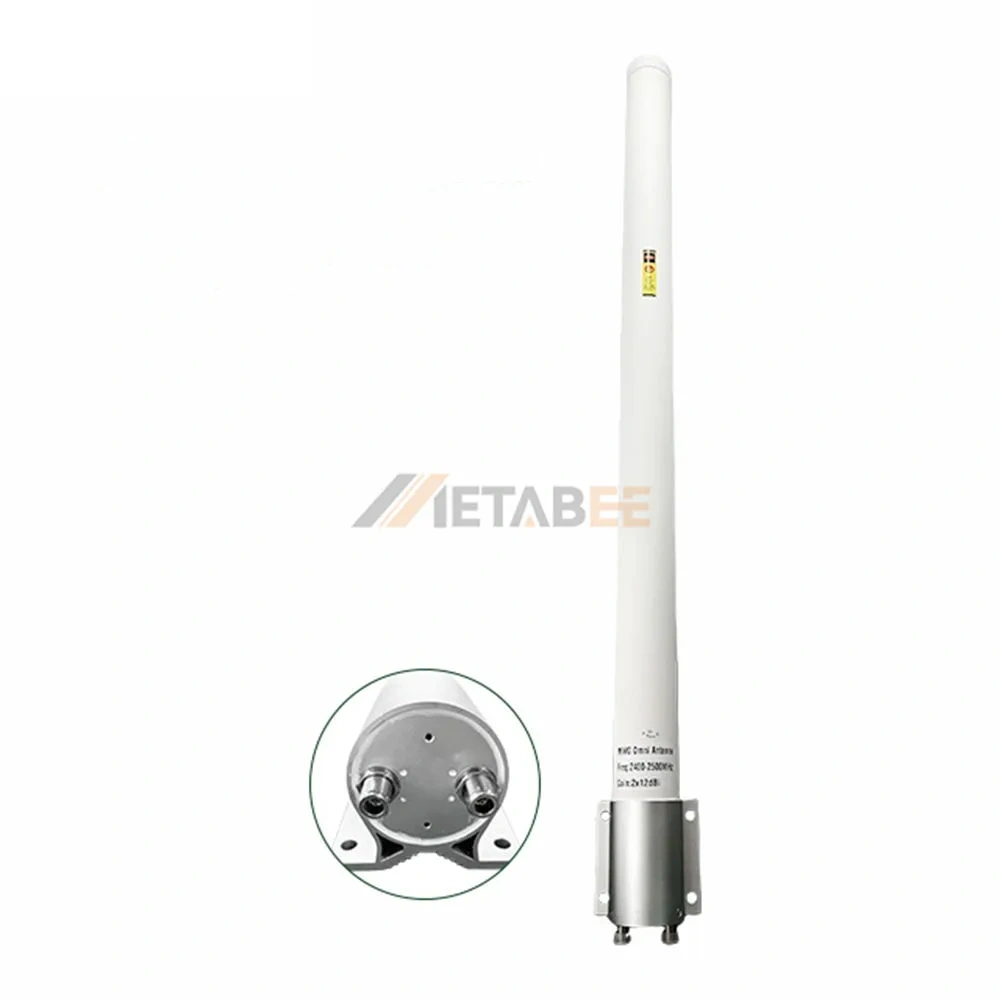

2.4GHz 2x12dBi High Gain MIMO Fiberglass Antenna, N Female, IP65
Introduction:
The 2.4GHz MIMO fiberglass antenna is designed for high-capacity wireless networks requiring extended range and stable signal performance. Operating in the 2.4GHz band, this MIMO antenna features dual 12dBi high-gain elements, delivering enhanced throughput and improved link reliability. Its omni-directional radiation pattern ensures consistent 360° coverage, while vertical polarization and a VSWR of ≤1.92 help minimize signal reflection and optimize transmission efficiency.
Constructed with a robust fiberglass radome, this antenna is built for demanding outdoor deployments. It supports up to 50W input power and maintains a standard 50 Ohm impedance for seamless RF integration. Equipped with N Female connectors, it ensures secure and stable connectivity for MIMO configurations. With an IP65 rating, the antenna offers reliable protection against dust and water ingress, while operating effectively in extreme temperatures from -40°C to 85°C. Additionally, it withstands wind speeds up to 60 m/s and features DC grounding for enhanced lightning protection.
Key Features
- 2.4GHz band with 2x12dBi high-gain MIMO design
- Omni-directional coverage for 360° signal distribution
- VSWR ≤1.92 for efficient and stable RF performance
- Durable fiberglass radome with IP65 weatherproof protection
- N Female connectors with 50 Ohm impedance
- Wide temperature range, 60 m/s wind resistance, and DC grounding for lightning protection
Main Specifications:
General Information:
| Product No.: | YC-FG00089 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 250*20mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4GHz | |
| Gain: | 2x12dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure

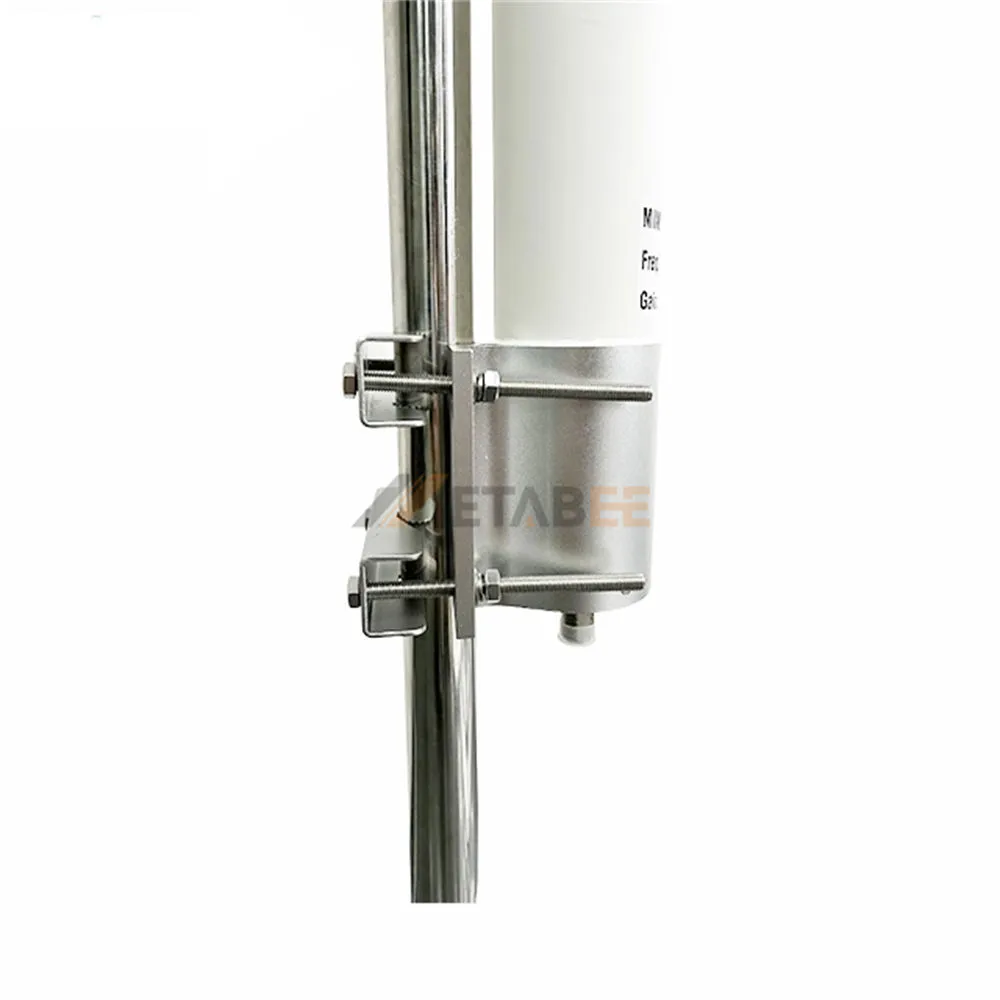

Installation Method of Fiberglass Antennas
Applications of this 2.4GHz 5dBi Omni Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
