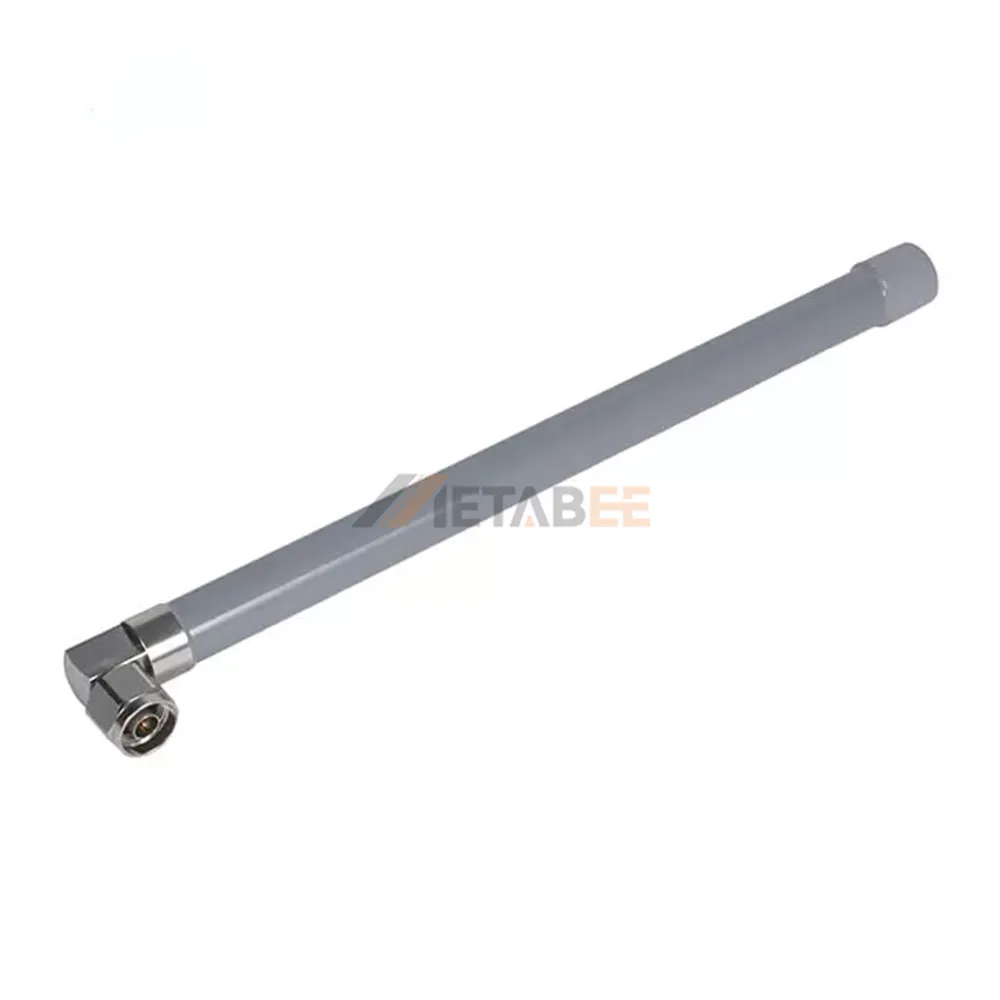

2.4GHz Omni Outdoor Fiberglass Base Station Antenna, Right Angle N-Male, IP65
Introduction:
This high-performance antenna boasts a robust fiberglass radome, ensuring exceptional durability and resistance against harsh weather conditions. With its omni-directional radiation pattern, it provides comprehensive 360-degree coverage, making it an ideal solution for expanding wireless networks such as Wi-Fi, IoT, and other 2.4GHz applications. Its 5dBi gain effectively enhances signal strength and range, ensuring stable connectivity for your base station infrastructure.
Designed for optimal electrical performance, this antenna features a low VSWR of ≤1.5 and a standard 50 Ohm impedance, minimizing signal loss and maximizing transmission efficiency. The vertical polarization is standard for broad compatibility with various devices. Further enhancing its outdoor suitability, the antenna comes with an IP65 rating, guaranteeing protection against dust ingress and water jets, and can operate flawlessly across a wide temperature range from -40°C to 85°C. The Right Angle N-Male connector offers a secure and convenient connection, while the impressive 60 m/s wind survivability and DC Grounding lightning protection underscore its resilience and safety.
Key Features
- 2.4GHz Omni-Directional: Provides broad 360-degree coverage for WiFi, IoT, and other 2.4 GHz wireless applications.
- 5dBi Gain: Enhances signal strength and extends the range of your wireless network.
- Fiberglass Radome: Ensures superior durability and weather resistance for long-term outdoor use.
- IP65 Rated: Offers comprehensive protection against dust and water jets, perfect for harsh environments.
- Extreme Temperature Range: Operates reliably from -40°C to 85°C, which is suitable for diverse climates.
- DC Grounding Protection: Integrated lightning protection safeguards your equipment from electrical surges.
Main Specifications:
General Information:
| Product No.: | YC-FG00016-A | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male | |
| Connector Orientation: | Right Angle | |
| Radome Material: | Fiberglass | |
| Dimensions: | 300*20*20mm | |
| Color: | Grey | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4GHz | |
| Gain: | 5±1dBi | |
| VSWR: | ≤2.0 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 2.4GHz Omni Outdoor Fiberglass Base Station Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
