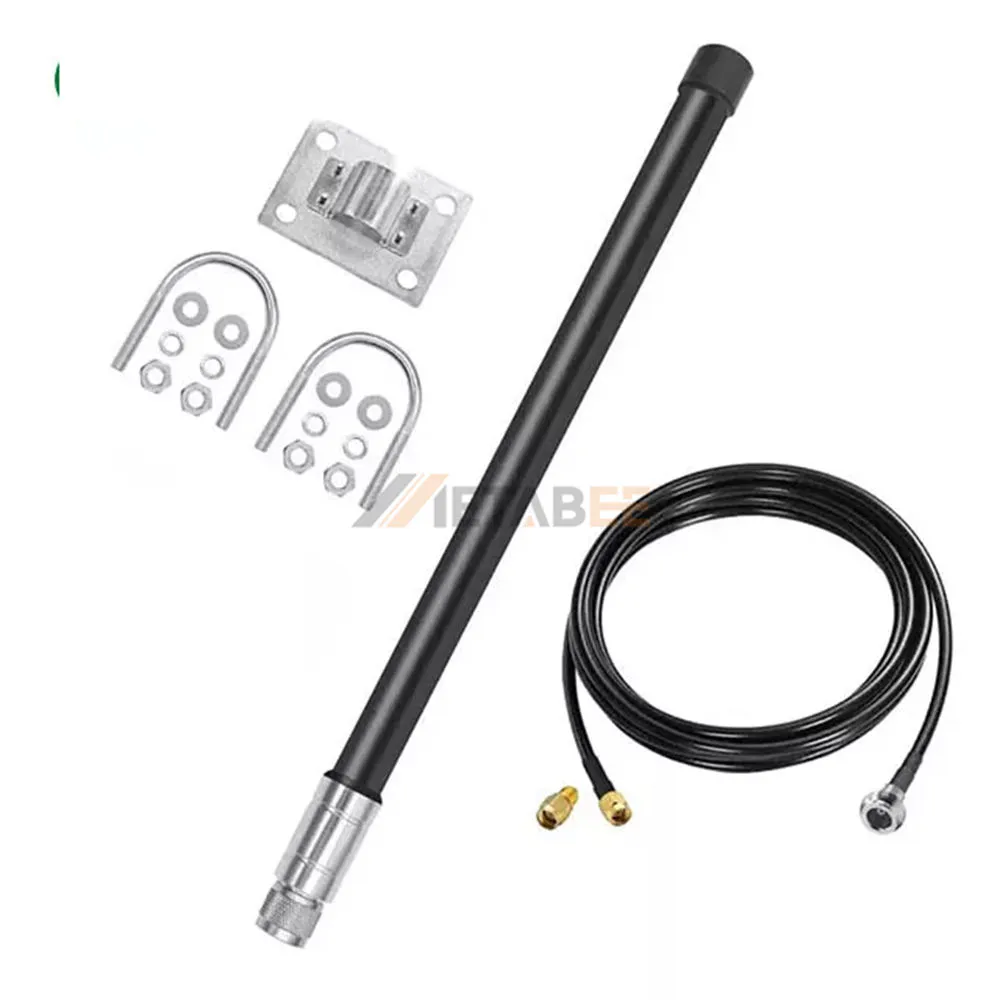

2.4GHz Omni-directional Outdoor WiFi Fiberglass Antenna, N-Male, IP65
Introduction:
The 2.4GHz omni-directional outdoor WiFi fiberglass antenna is optimized for reliable wireless coverage in outdoor WiFi and IoT deployments. Operating within the 2.4GHz ISM band, it delivers a stable gain of 5±1dBi and an omni-directional radiation pattern, ensuring consistent 360° signal distribution. With vertical polarization and a VSWR of ≤1.92, the antenna minimizes signal loss and enhances transmission efficiency for stable network performance.
Engineered with a rugged fiberglass radome, this antenna is built to withstand harsh environmental conditions. It supports a maximum input power of 50W and maintains a 50 Ohm impedance for seamless RF system integration. The N-Male connector ensures secure and low-loss connectivity. Rated at IP65, it provides strong protection against dust and water ingress, making it ideal for outdoor installations. It operates reliably in extreme temperatures from -40°C to 85°C, withstands wind speeds up to 60 m/s, and incorporates DC grounding for effective lightning protection.
Key Features
- 2.4GHz WiFi band with 5±1dBi stable gain
- Omni-directional 360° coverage for outdoor networks
- VSWR ≤1.92 for optimized signal efficiency
- Durable fiberglass radome with IP65 weatherproof rating
- N-Male connector with 50 Ohm impedance
- Wide temperature range, high wind resistance, and DC grounding protection
Main Specifications:
General Information:
| Product No.: | YC-FG00017 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 300*20*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4GHz | |
| Gain: | 5±1dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 2.4GHz Omni-directional Outdoor WiFi Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
