2.4GHz Omni-directional Fiberglass WLAN Antenna, IP65
Introduction:
The 2.4GHz omni-directional fiberglass antenna is engineered to deliver stable and high-performance wireless connectivity for WLAN and WiFi networks. Featuring a 6dBi gain and a vertical polarization, this antenna provides consistent 360° horizontal coverage, making it an ideal choice for base stations and outdoor hotspots. With a VSWR of ≤1.92 and a standard 50 Ohm impedance, it ensures efficient signal transmission with minimal reflection loss. Built to withstand the elements, the antenna is encased in a rugged Fiberglass radome with an IP65 weatherproof rating. It is designed for extreme environments, operating reliably between -40°C and 85°C and resisting wind speeds up to 60 m/s. Equipped with an N-Male connector and integrated DC Grounding for lightning protection, this antenna offers a “fit-and-forget” solution for critical outdoor communication infrastructure.
Key Features
- Optimized 2.4GHz Performance: Perfect for high-speed WLAN and WiFi applications.
- 360° Signal Coverage: 6dBi omni-directional gain ensures wide-area connectivity.
- All-Weather Protection: IP65-rated fiberglass housing prevents water and dust ingress.
- High Power Capacity: Supports up to 50W maximum input power for robust transmission.
- Built-in Safety: Features DC Grounding to protect equipment from lightning surges.

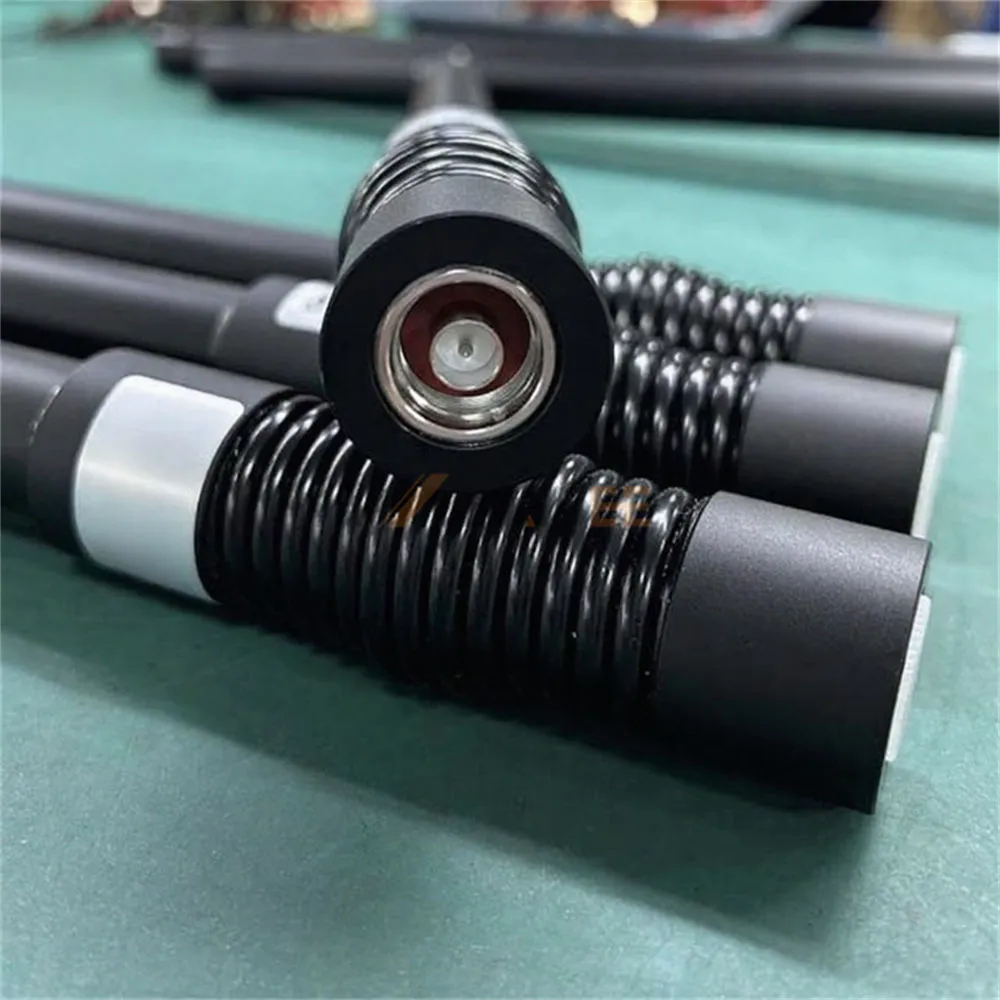

- Plug-and-Play Setup: Equipped with a standard N-Male connector for easy installation.
Main Specifications:
General Information:
| Product No.: | YC-FG00084 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Male | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4GHz | |
| Gain: | 6dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas
Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 2.4GHz Omni-directional Fiberglass WLAN Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
