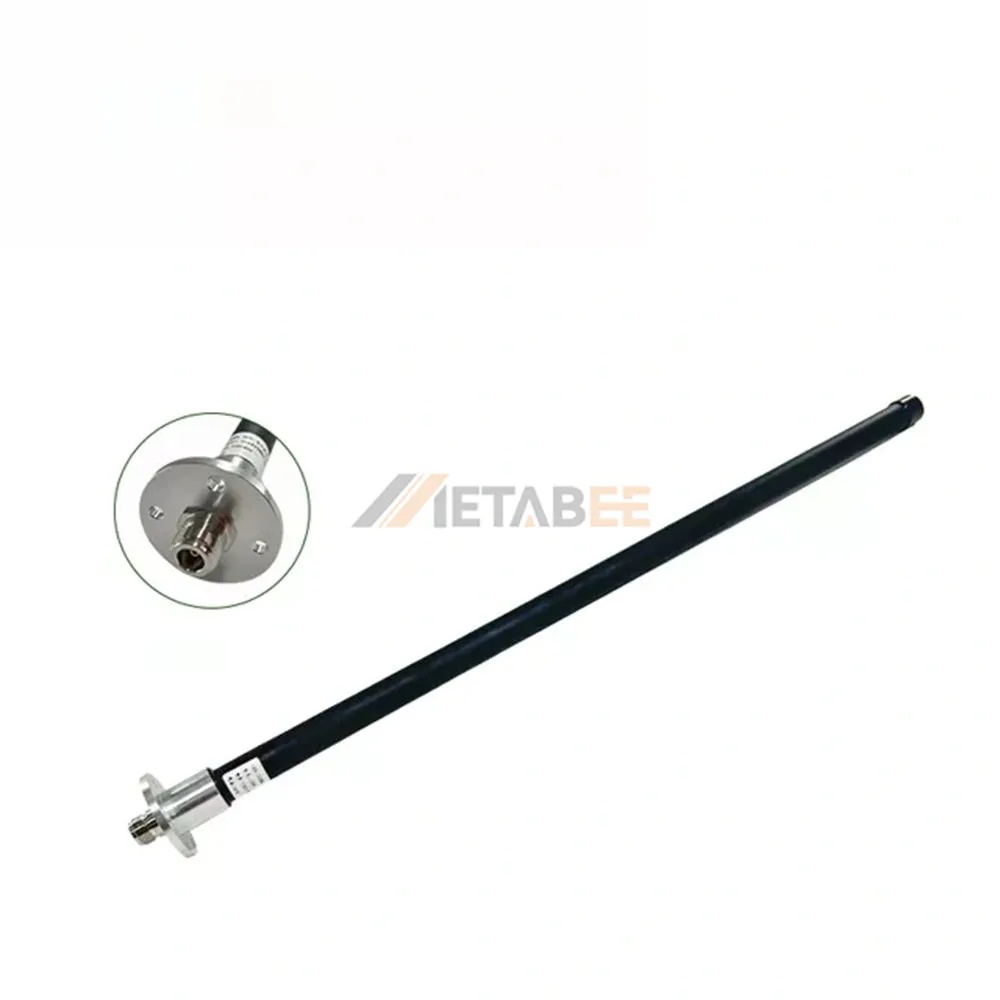

1.3-1.5GHz 5dBi Fiberglass Antenna for Drone, N-Female, IP65
Introduction:
This high-performance 1.3GHz-1.5GHz Fiberglass Antenna is engineered specifically for long-range drone applications and tactical communication links. Featuring a robust 5dBi gain and an omni-directional radiation pattern, it ensures consistent, high-speed data transmission and reliable signal coverage across 360 degrees. Its specialized frequency range is ideal for UAV pilots and RF professionals seeking superior penetration and stability in demanding environments.
Built to withstand the elements, the antenna is encased in a premium IP65-rated fiberglass radome, making it completely dust-proof and highly resistant to moisture. Designed for durability, it operates flawlessly in extreme temperatures from -40°C to 85°C and withstands wind speeds up to 60 m/s. With integrated DC Grounding for lightning protection and a standard N-Female connector, this antenna offers a secure, professional-grade solution for permanent outdoor installations or mobile ground stations.
Key Features
- Optimized Range: 1.3GHz-1.5GHz frequency tailored for drone telemetry and video links.
- 360° Coverage: 5dBi gain with an omni-directional pattern for maximum signal reach.
- Weatherproof Design: IP65-rated fiberglass housing ensures long-term outdoor durability.
- Extreme Stability: High wind resistance (60 m/s) and wide operating temperature range.
- Superior Signal Integrity: Low VSWR (≤1.92) and 50Ω impedance for minimal power loss.
- Built-in Protection: Integrated DC Grounding protects your equipment from lightning surges.
Main Specifications:
General Information:
| Product No.: | YC-FG00087 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | 600*20mm | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1.3-1.5GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Fiberglass Antennas

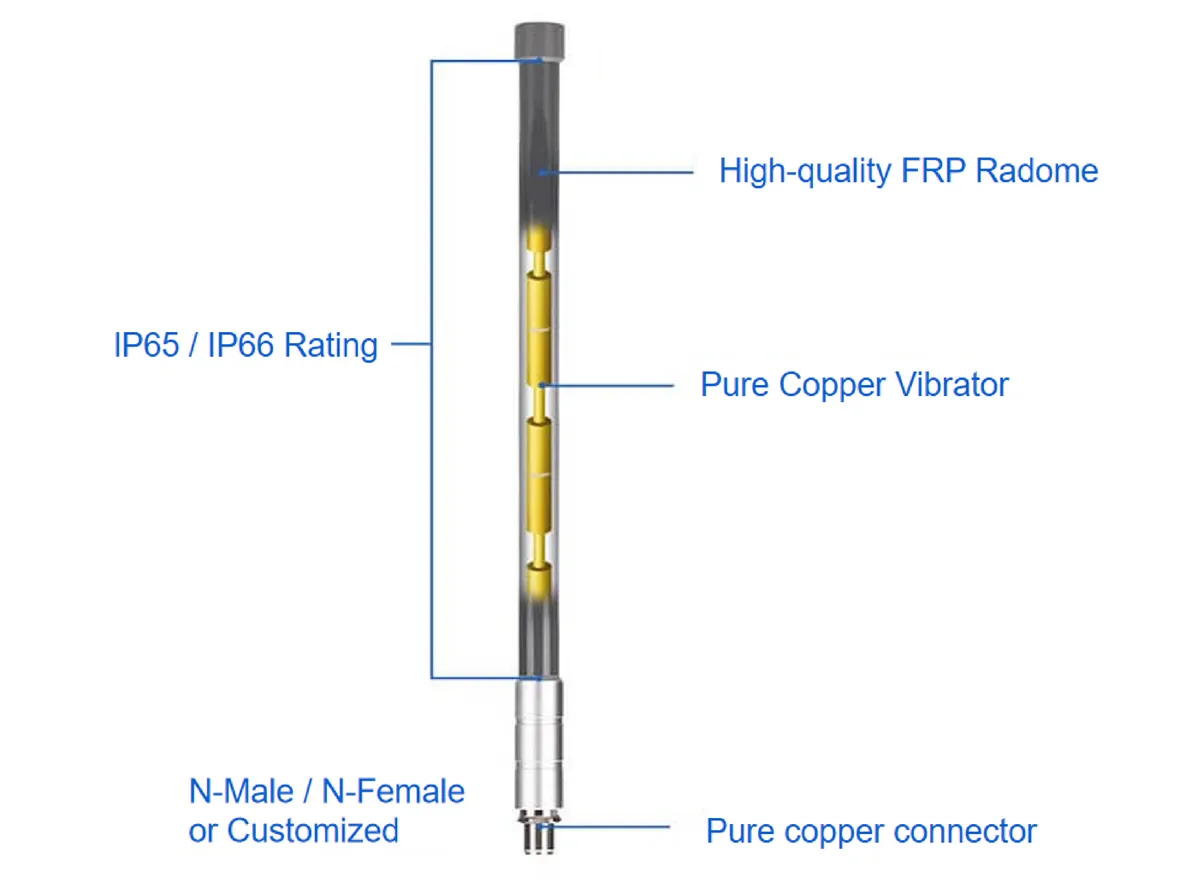

Fiberglass Antenna Structure
Installation Method of Fiberglass Antennas
Applications of this 1.3-1.5GHz 5dBi Fiberglass Antenna for Drone:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
