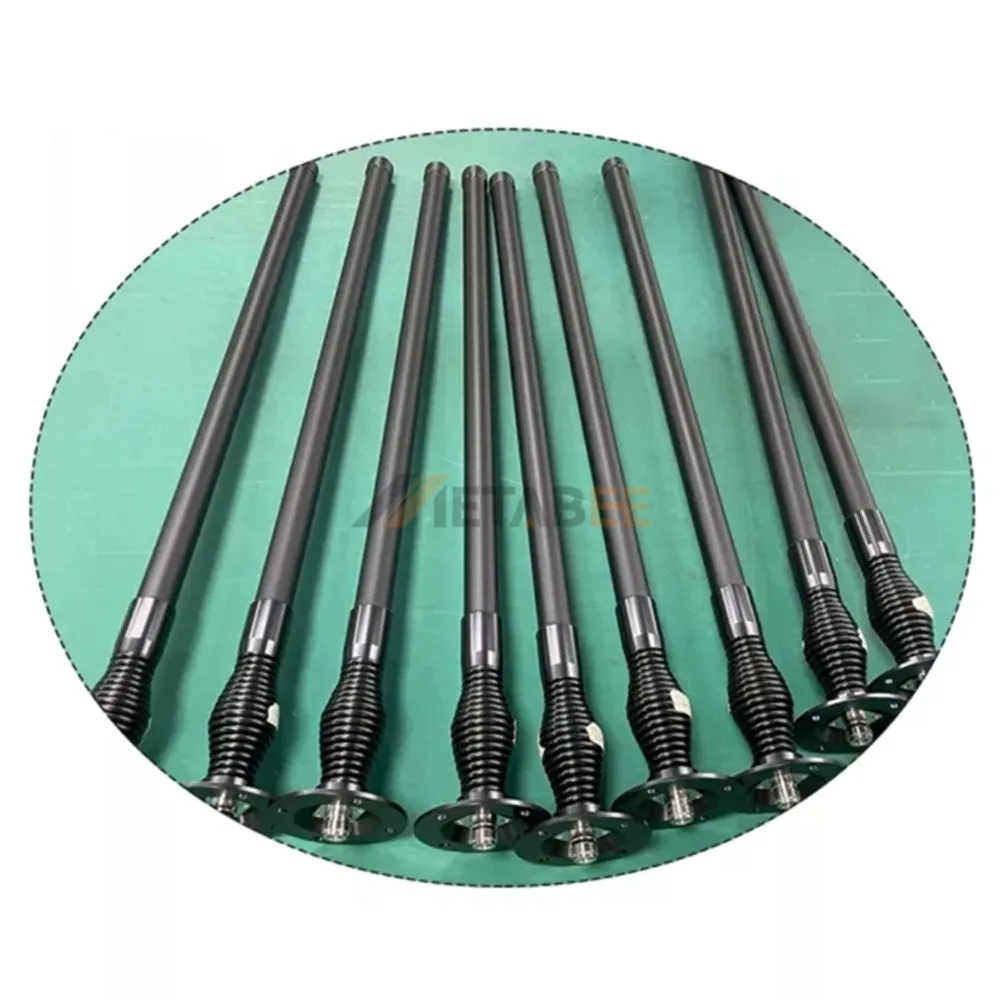

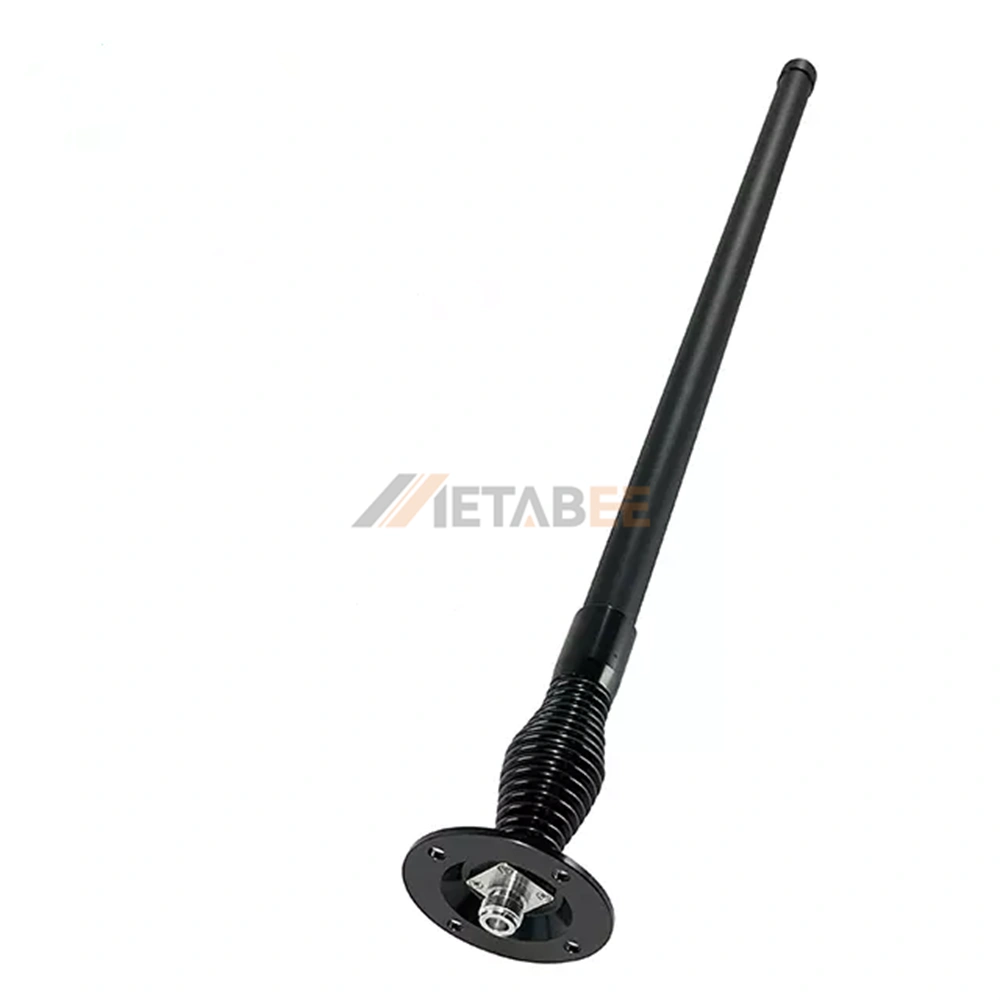

1.3-1.5GHz 5-6dBi Omni-directional Fiberglass Antenna for Jammer UAV Drone, IP65
Introduction:
This high-gain fiberglass antenna is purpose-built for the 1.3-1.5GHz frequency range, offering a robust solution for UAV drone communication and signal jamming systems. With a 5-6dBi gain and an omni-directional radiation pattern, it ensures seamless 360° signal propagation and reliable connectivity in demanding environments. Designed for efficiency, the antenna maintains a VSWR of ≤1.5, optimizing power transfer and minimizing signal loss.
Engineered for Extreme Durability
Constructed with a premium Fiberglass radome and rated IP65, this antenna is built to withstand the harshest outdoor conditions. It features DC Grounding for lightning protection and is tested to survive wind speeds up to 60 m/s. Whether operating in extreme cold or intense heat (-40°C to 85°C), its vertical polarization and 50 Ohm impedance ensure stable, professional-grade performance for critical defense and aerospace tasks.
Key Features
- Wide Frequency Range: Optimized for 1.3-1.5GHz, ideal for drone and jammer use.
- High Gain Coverage: 5-6dBi omni-directional pattern for superior 360° reach.
- Weatherproof Design: IP65 rated and fiberglass-reinforced for long-term outdoor use.
- High Power Handling: Supports a maximum input power of up to 50W.
- Extreme Resilience: Operates from -40°C to 85°C with 60 m/s wind resistance.
- Integrated Protection: Features DC Grounding to safeguard against lightning strikes.
Main Specifications:
General Information:
| Product No.: | YC-FG00303 | |
| Connector Series: | Fiberglass Antennas | |
| Brand: | Metabee | |
| Connector Type: | N-Female | |
| Connector Orientation: | Straight | |
| Radome Material: | Fiberglass | |
| Dimensions: | – | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1.3-1.5G/1.5-1.8/2.7-2.9G | |
| Gain: | 5-6dBi | |
| VSWR: | ≤1.5 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 60 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |

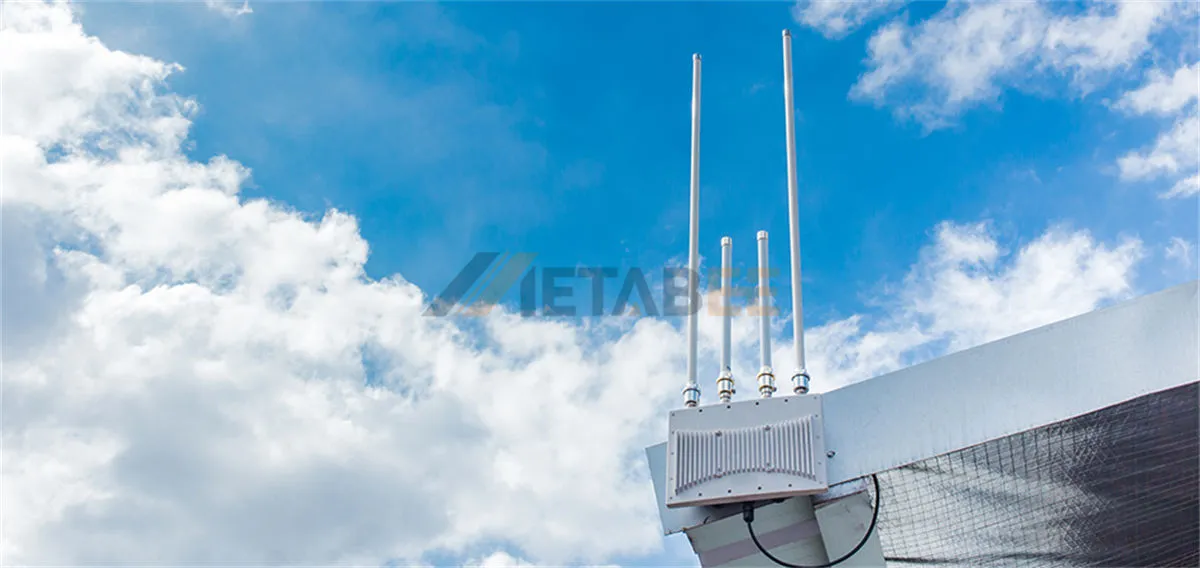

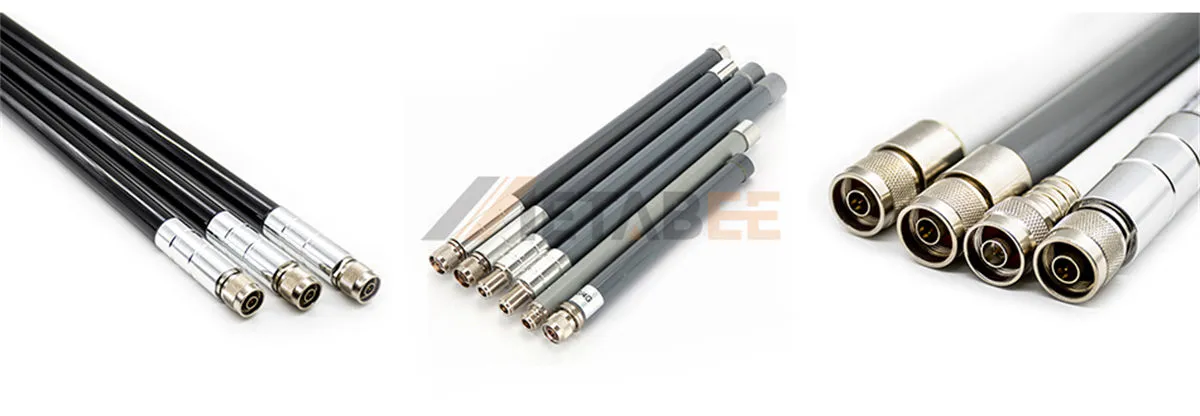

Fiberglass Antennas

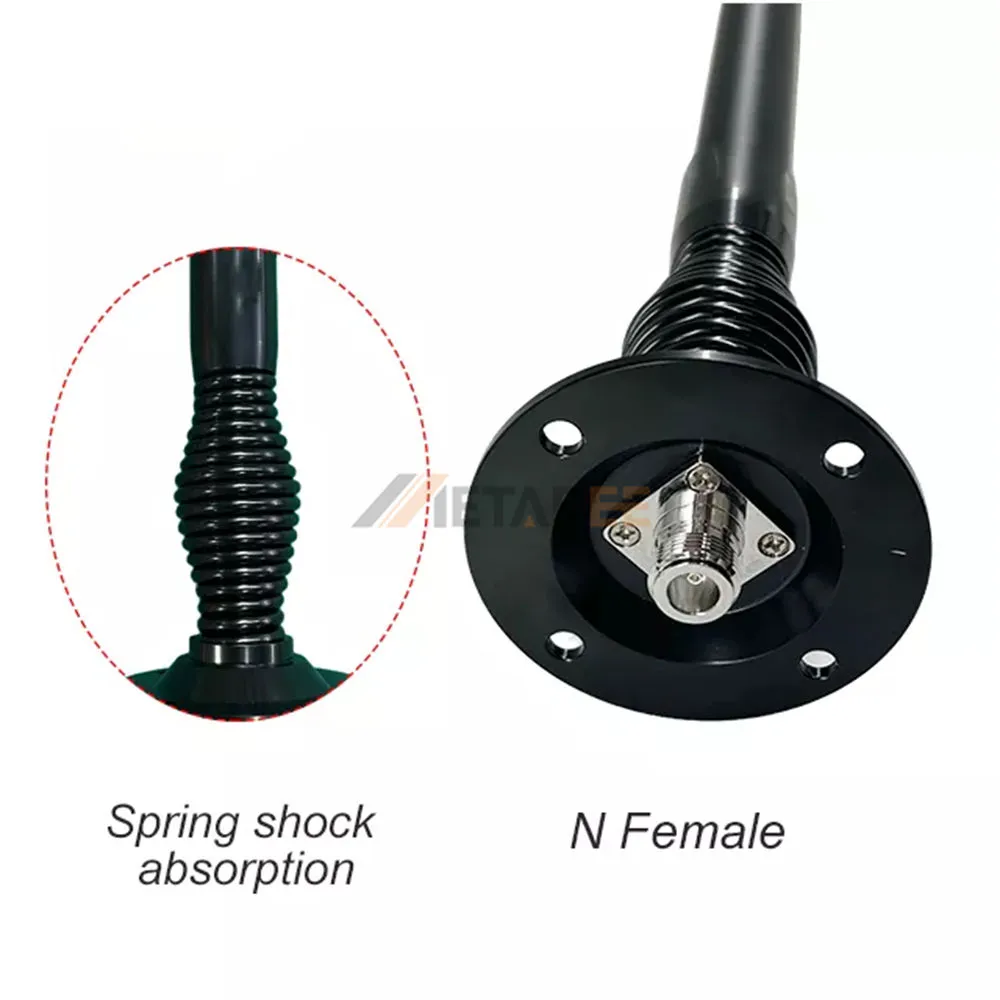

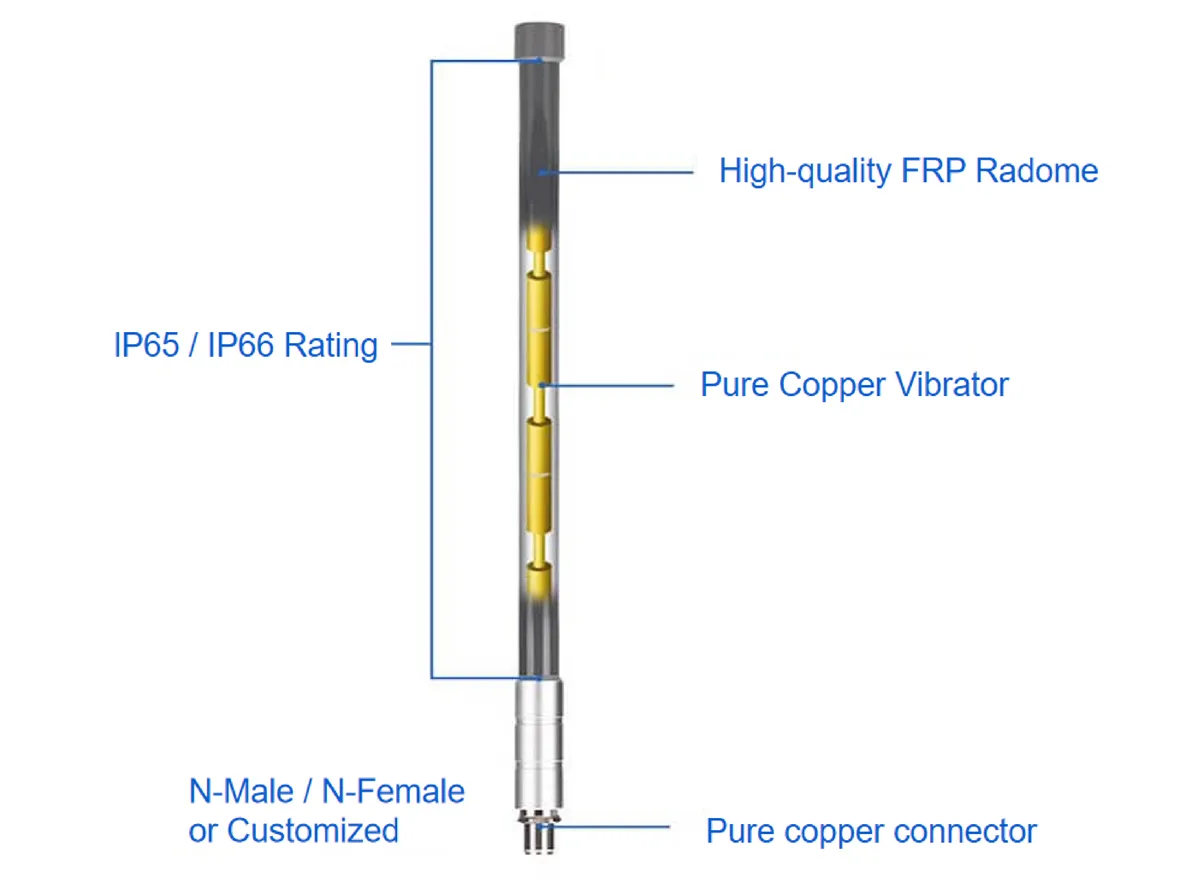

Fiberglass Antenna Structure

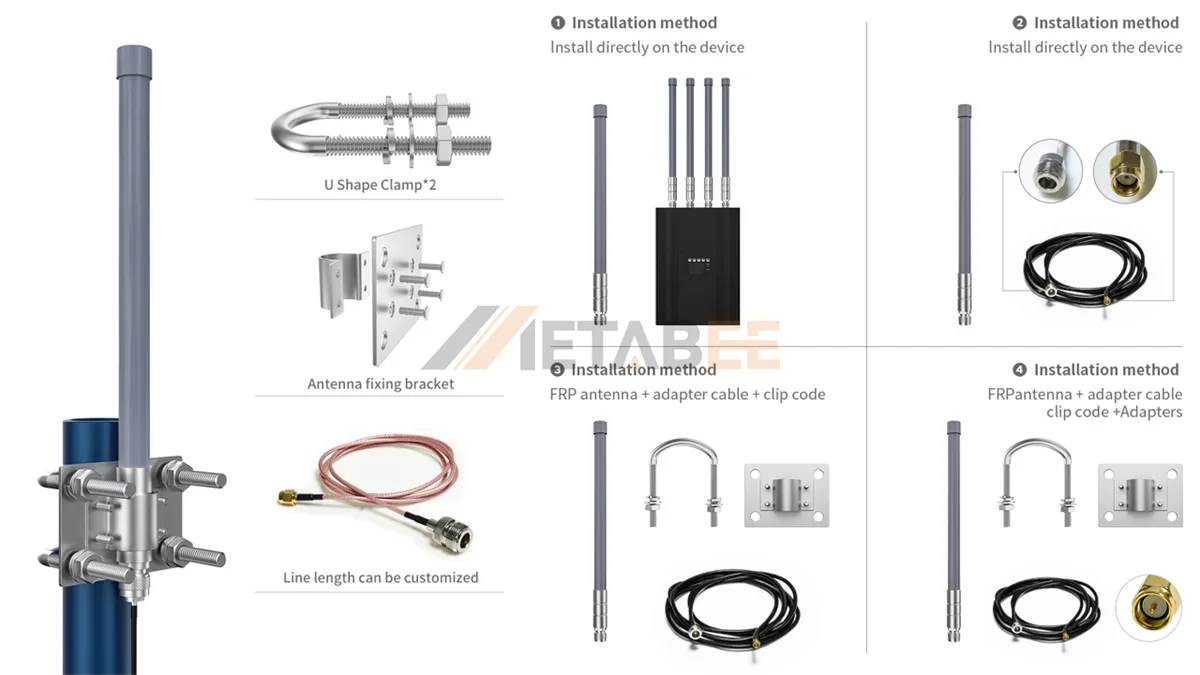

Installation Method of Fiberglass Antennas
Applications of this 1.3-1.5GHz 5-6dBi Omni-directional Fiberglass Antenna:
Fiberglass antennas are versatile and widely used across various communication systems due to their durability, corrosion resistance, and excellent signal transmission properties.
Here are some key applications:
- IoT
- LoRaWAN
- Helium
- Marine
- Cellular Communication
- Satellite Communication
- Wireless Video Surveillance
- Mobile Phone Base Stations
