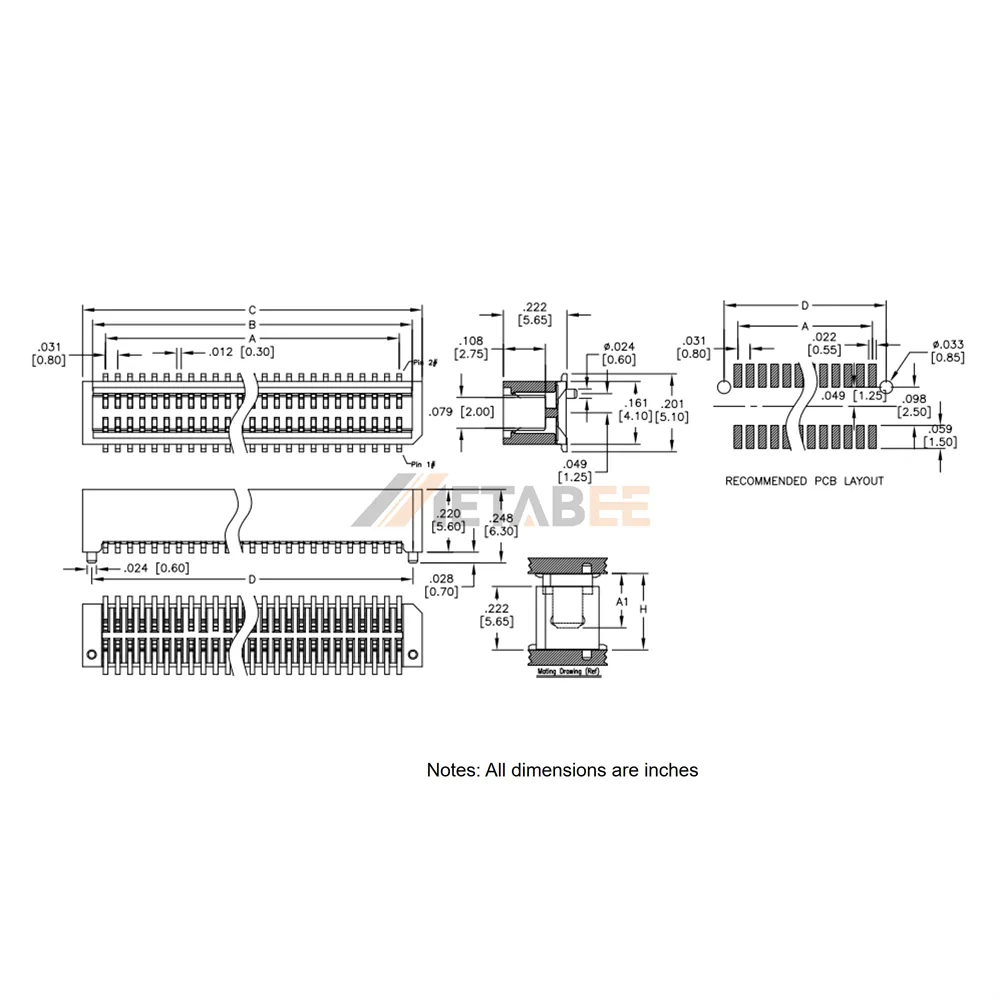

0.8mm Pitch Vertical Board to Board Socket, SMT, 5.65mm Stack Height
Introduction:
Engineered for high-density interconnect applications, this 0.8mm Pitch Vertical Board-to-Board Socket delivers reliable performance in a compact SMT form factor. Designed with a dual-row configuration and supporting 10 to 100 positions, it offers exceptional flexibility for space-constrained PCBs. The right-angle mounting orientation combined with a 5.65mm stack height ensures optimal mechanical stability and efficient signal routing in stacked board assemblies. Constructed with a high-temperature thermoplastic insulator (UL 94 V-0 rated), this socket withstands harsh reflow soldering processes without deformation. Its copper alloy contacts with gold flash plating guarantee low contact resistance and excellent corrosion resistance, making it ideal for industrial controls, medical devices, and telecommunications equipment where vibration and thermal cycling are concerns. Operating reliably across a wide temperature range from -40°C to +85°C, this surface-mount socket maintains consistent electrical connectivity even in demanding environments.
Key Features
- Fine Pitch & Density: 0.8mm pitch with dual rows supports 10–100 positions for high-density layouts.
- Space-Saving Profile: 5.65mm stack height with right-angle SMT mounting optimizes vertical clearance.
- Durable Contacts: Copper alloy with gold flash plating ensures low resistance and oxidation protection.
- Heat-Resistant Insulator: Hi-temp thermoplastic with UL 94 V-0 flammability rating for safety and process reliability.
- Wide Operating Range: Stable performance from -40°C to +85°C suits industrial and automotive uses.
- Reliable Termination: Surface-mount design enables automated assembly and strong solder joints.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-565 | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5.65mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
</tr
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Vertical Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
