0.8mm Pitch Vertical Board to Board Plug, SMT, Gold Plating Contact
Introduction:
Presenting the 0.8mm Pitch Vertical Board-to-Board Male Plug, meticulously engineered for advanced surface mount (SMT) applications demanding high-density interconnection. This dual-row connector features a precise 0.8mm centerline pitch, optimizing board space while ensuring superior signal integrity. Its vertical mounting orientation is ideal for stackable board configurations, facilitating efficient PCB design and assembly processes. Designed to accommodate a broad spectrum of requirements, this versatile connector is available with 10 to 100 positions, providing flexible solutions for diverse electronic systems.
Constructed for robust performance and extended reliability, the contacts are forged from high-conductivity Copper Alloy and finished with a durable Gold flash plating. This combination guarantees exceptional electrical performance, enhanced corrosion resistance, and prolonged operational life. The insulator, fabricated from Hi-temp thermoplastic, offers outstanding dielectric strength and thermal stability, ensuring consistent performance across challenging thermal conditions. Capable of operating within a wide temperature range of -40℃ to +85℃, and boasting a UL 94 V-0 flammability rating, this board-to-board plug meets stringent industry standards for safety and environmental resilience.
Key Features
- 0.8mm Pitch: Ultra-fine pitch for maximizing PCB real estate in compact designs.
- SMT & Vertical Mounting: Optimized for automated surface mount assembly and space-saving vertical board stacking.
- Dual Row Male Plug: Ensures reliable, high-density connections with a robust male interface.
- 10-100 Positions: Offers extensive configurability to match precise application requirements.
- Gold Flash Plated Contacts: Guarantees superior conductivity, corrosion protection, and long-term signal integrity.
- UL 94 V-0 Flammability Rated: Provides enhanced safety and compliance for critical electronic systems.

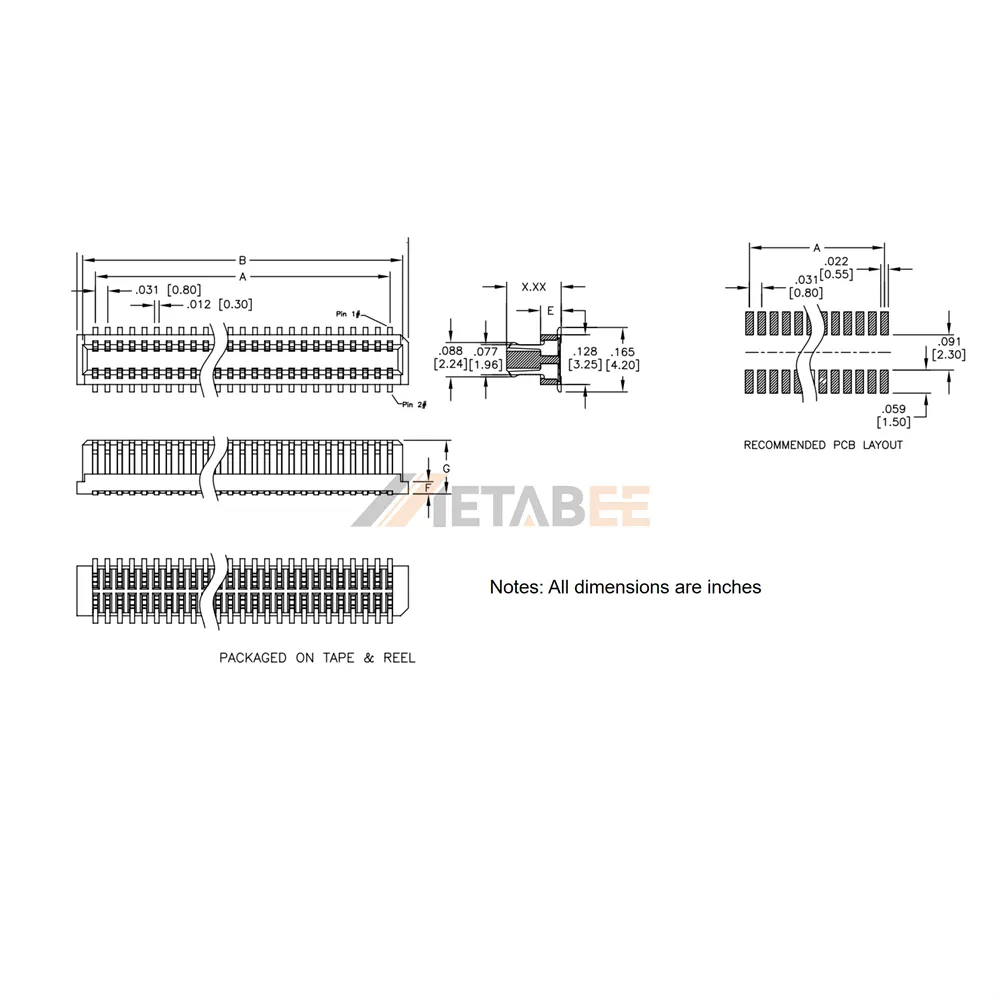

Main Specifications:
General Information:
| Product No.: | YC-BB8-PN-XXX-G-X.XX-NP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Vertical Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
