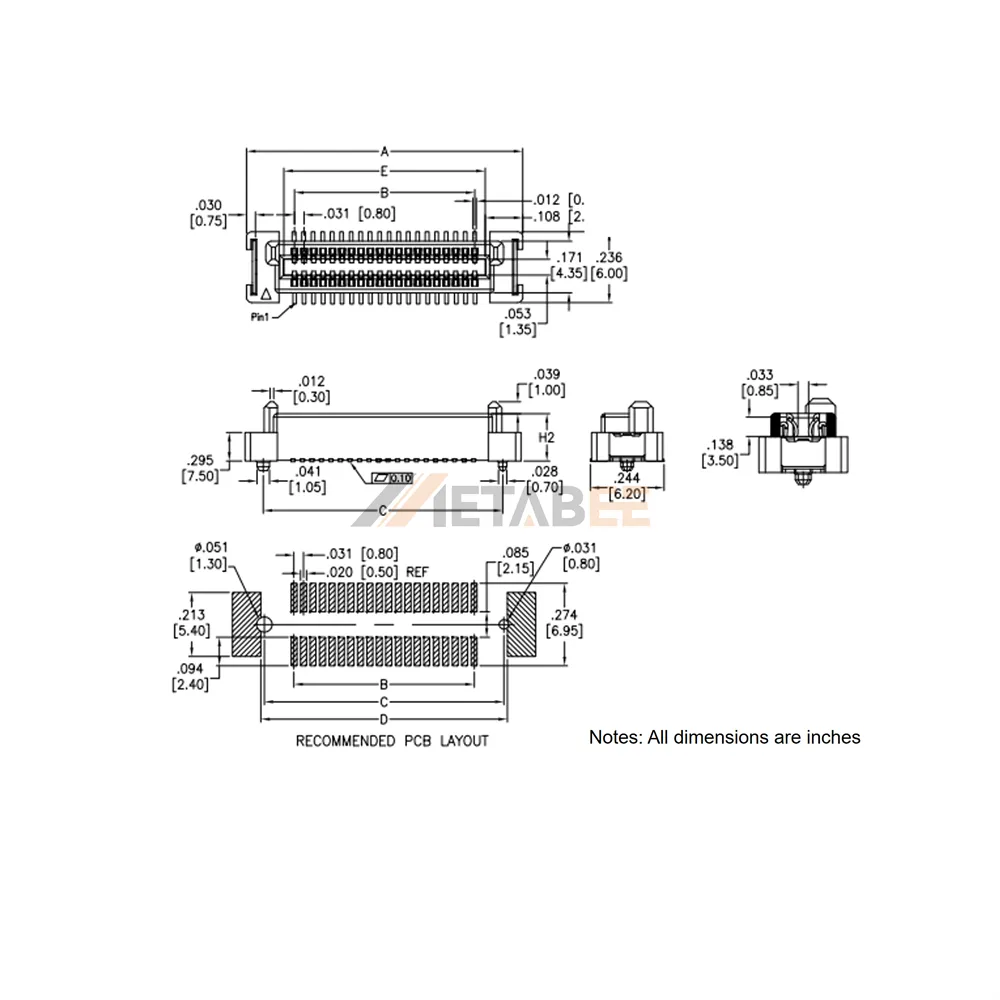

0.8mm Pitch Stacking Board to Board Socket, SMT, Vertical
Introduction:
The 0.8mm Pitch Stacking Board to Board Socket, SMT, Vertical is engineered for high-density PCB interconnections in compact electronic devices. Featuring a 0.8mm pitch, vertical surface mount design, and a dual-row configuration, this female connector supports 10 to 100 positions, providing flexible connectivity for a wide range of board stacking applications.
Constructed with copper alloy contacts and gold flash plating, the connector ensures reliable signal transmission, excellent conductivity, and improved corrosion resistance. The high-temperature thermoplastic insulator meets the UL 94 V-0 flammability standard, offering outstanding thermal stability and durability. Designed to operate in temperatures ranging from -40°C to +85°C, it is ideal for consumer electronics, industrial equipment, communication devices, and embedded systems.
Key Features
- 0.8mm pitch for high-density board-to-board connections
- Vertical SMT design for automated PCB assembly
- Dual-row female connector with 10–100 positions
- Copper alloy contacts with gold flash plating for dependable performance
- Hi-temp thermoplastic insulator with UL 94 V-0 flammability rating
- Operating temperature range of -40°C to +85°C for reliable operation
Main Specifications:
General Information:
| Product No.: | YC-BB8-SAT-XXX-SGM-X.XXX | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Stacking Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
