0.8mm Pitch SMT Board to Board Socket, 3.65mm Stack Height
Introduction:
This 0.8mm pitch vertical SMT board-to-board socket features a 3.65mm stack height and dual-row female design, supporting 10 to 100 positions for flexible PCB connection configurations. Adopting standard surface mount mounting, it fits automated SMT assembly processes perfectly, saving board space and enabling compact electronic device packaging for industrial, consumer and automotive electronics applications.
Built with premium copper alloy contacts with gold flash plating, the connector ensures stable conductivity and excellent anti-oxidation performance. The high-temperature thermoplastic insulator delivers reliable insulation and heat resistance. It operates steadily in a wide temperature range of -40℃ to +85℃ and meets UL 94 V-0 flammability standards, guaranteeing long-term safe and durable operation in harsh working environments.
Key Features
- 0.8mm centerline pitch, dual-row compact structure
- 10-100 customizable positions for diverse needs
- Vertical SMT mounting for automated assembly
- Copper alloy contact with gold flash plating for stable conduction
- -40℃~+85℃ wide operating temperature range
- UL 94 V-0 flame retardant high-temperature insulator

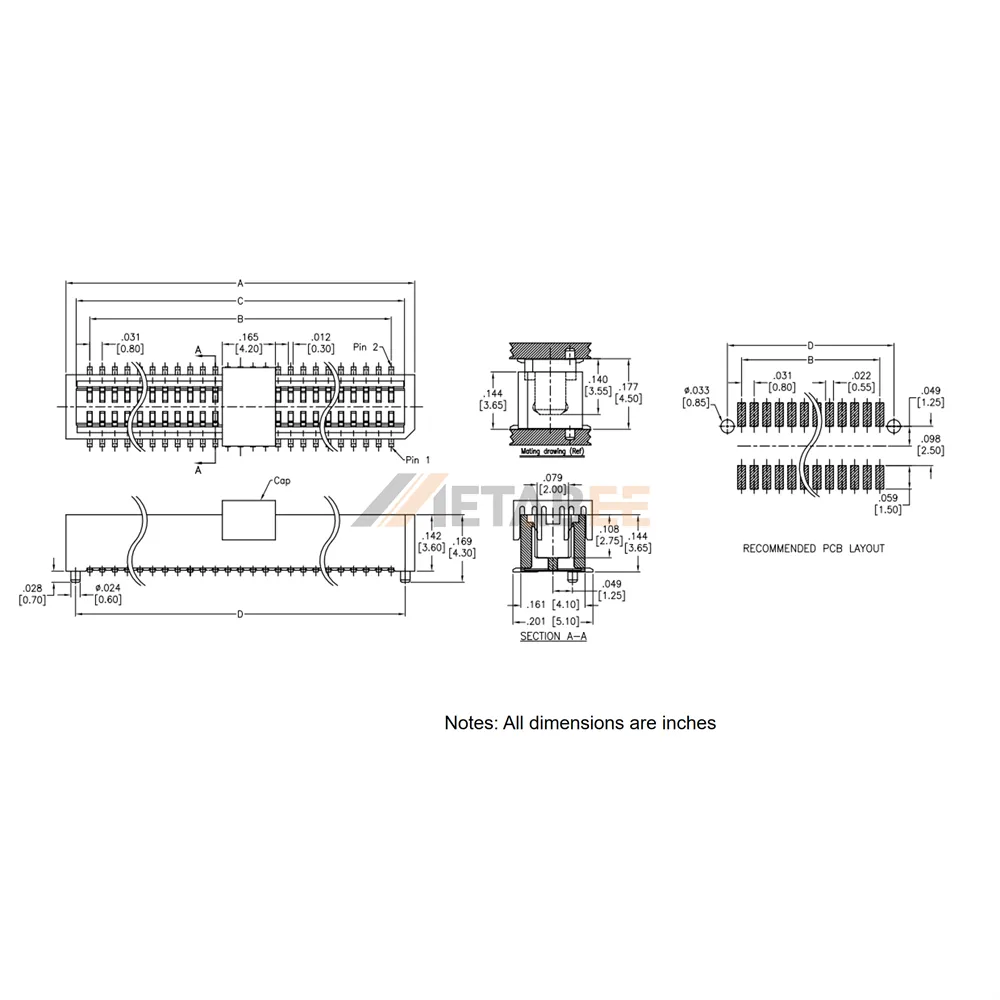

Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-365-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 3.65mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch SMT Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
