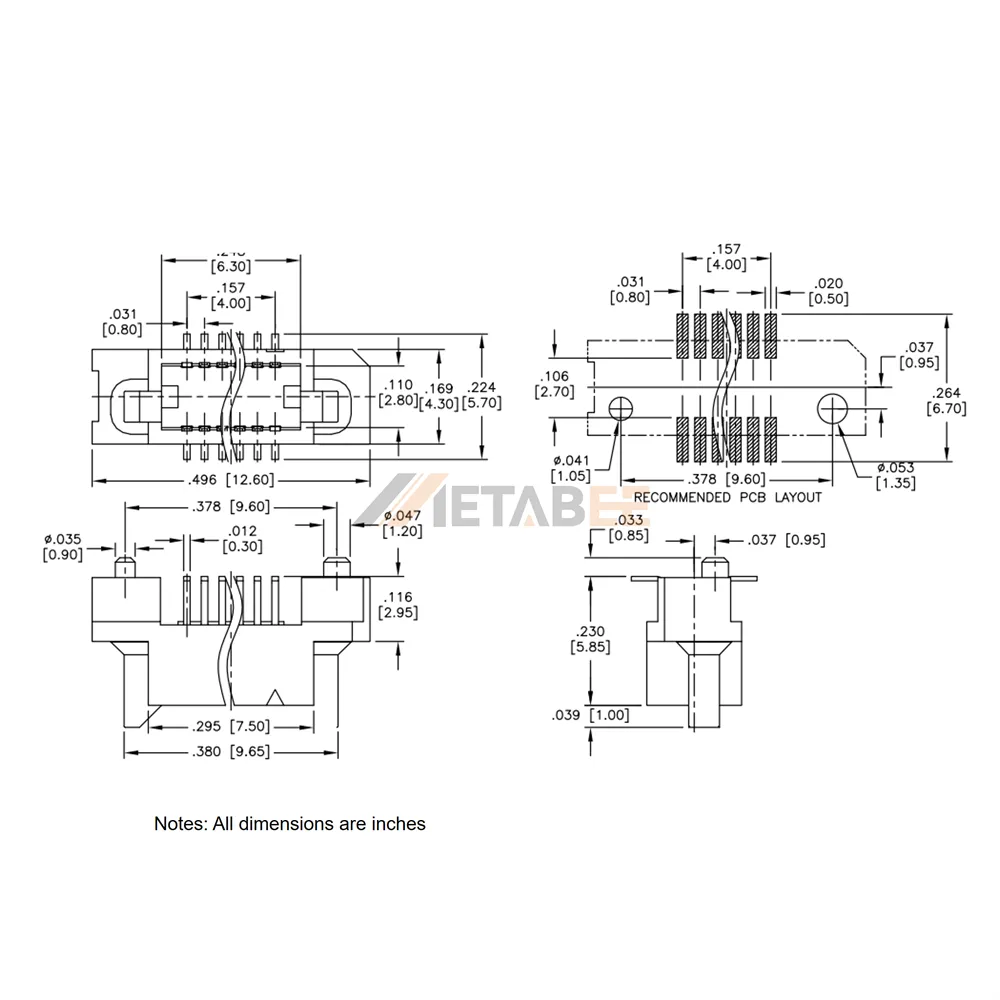

0.8mm Pitch PCB Surface Mount Board to Board Plug, 12 Positions, Vertical
Introduction:
The 0.8mm Pitch PCB Surface Mount Board to Board Plug is a compact and reliable interconnect solution designed for high-density electronic assemblies. Featuring a dual-row male configuration with 12 positions, this connector provides secure board-to-board mating while optimizing PCB space utilization. Its vertical orientation and surface mount design support automated assembly processes and efficient board stacking in compact devices.
Manufactured with copper alloy contacts and gold flash plating, the connector ensures excellent electrical performance, low contact resistance, and dependable signal transmission. The high-temperature thermoplastic insulator offers outstanding thermal stability and mechanical durability, making it suitable for demanding soldering and operating environments.
Engineered for reliability, the connector operates within a temperature range of -40°C to +85°C and incorporates a UL 94 V-0 flame-retardant housing for enhanced safety. It is widely used in industrial controls, communication equipment, consumer electronics, medical devices, and embedded systems requiring compact and dependable board-level connections.
Key Features
- 0.8mm pitch for high-density PCB applications
- 12-position dual-row male connector design
- Vertical surface mount configuration for space-efficient layouts
- Copper alloy contacts with gold flash plating for reliable conductivity
- High-temperature thermoplastic housing with UL 94 V-0 rating
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB8-PEC-12-G-585-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 12 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5.85mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch PCB Surface Mount Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
