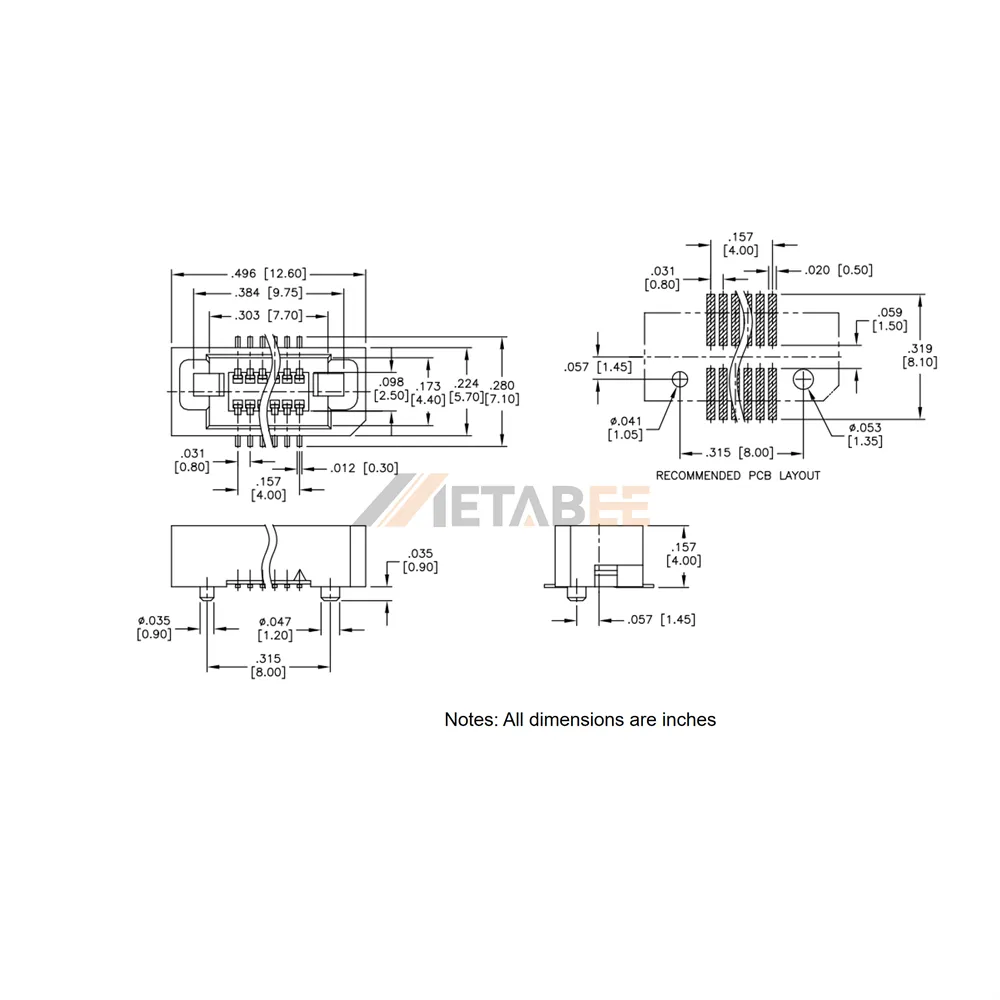

0.8mm Pitch PCB Stacking Board to Board Female Connector, SMT, 4mm Height
Introduction:
This high-performance 0.8mm Pitch PCB Stacking Board to Board Female Connector is engineered for reliable and space-efficient PCB interconnectivity. Designed for surface mount technology (SMT) applications, this dual-row vertical connector offers a compact 4mm stacking height, making it ideal for densely packed electronic assemblies where board-to-board connections are critical. Its precise 0.8mm pitch ensures optimal signal integrity and compatibility with miniature circuit designs, facilitating seamless integration into a wide range of devices.
Constructed for durability and superior electrical performance, the connector features contacts made from a robust Copper Alloy with a Gold flash plating, ensuring excellent conductivity and resistance to corrosion. The insulator is crafted from high-temperature thermoplastic, providing enhanced thermal stability and a UL 94 V-0 flammability rating for safety. With an operating temperature range of -40℃ to +85℃, this connector guarantees reliable functionality across various demanding environmental conditions, from industrial controls to consumer electronics.
Key Features
- Ultra-Compact Design: 0.8mm pitch and 4mm stacking height for high-density PCBs.
- Surface Mount (SMT): Facilitates efficient automated assembly processes.
- Dual Row Vertical: Space-saving orientation for versatile board stacking.
- High-Quality Contacts: Copper Alloy with Gold flash plating for superior conductivity.
- Durable Insulator: Hi-temp thermoplastic with UL 94 V-0 flammability rating.
- Wide Temperature Range: Reliable operation from -40℃ to +85℃.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SEC-XX-G-400-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.00mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch PCB Stacking Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
