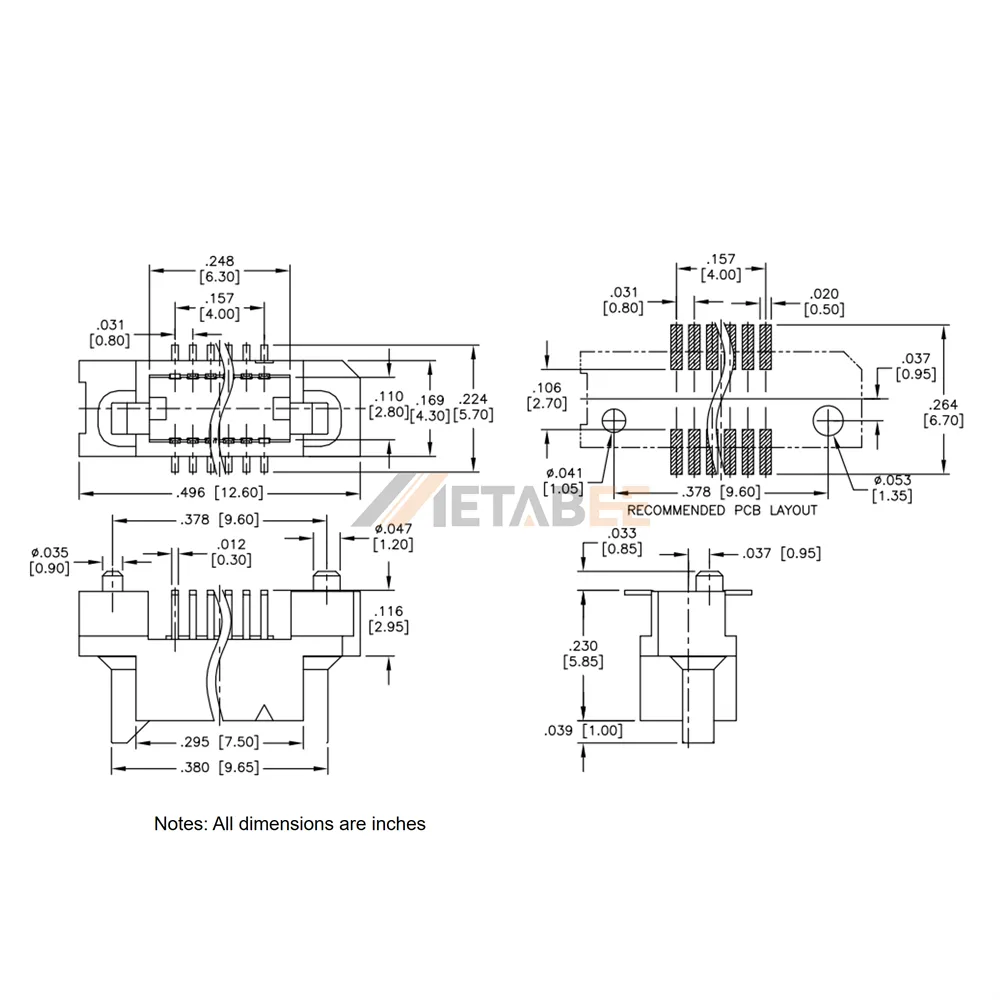

0.8mm Pitch PCB SMT Board to Board Plug, Vertical, 5.85 Height
Introduction:
Optimize your high-density electronic assemblies with this high-performance 0.8mm Pitch PCB SMT Board to Board Plug. Designed for precise vertical mounting, this dual-row male connector features a 5.85mm height profile, making it the ideal solution for compact space-constrained parallel board-to-board applications. Engineered for robust surface mount technology (SMT) integration, it ensures accurate alignment and stable mechanical retention for high-speed signal processing.
Constructed for exceptional reliability, the connector utilizes high-grade copper alloy contacts with superior gold flash plating to maximize electrical conductivity and prevent oxidation. The housing is molded from a rugged, high-temperature thermoplastic that easily withstands demanding reflow soldering temperatures. Engineered with a UL 94 V-0 flammability rating and a wide operating temperature range from -40°C to +85°C, this interconnect solution delivers uncompromising safety and structural integrity in harsh industrial and commercial environments.
Key Features
- 0.8mm Centerline Pitch: High-density, dual-row layout optimizes valuable PCB real estate.
- 5.85mm Connector Height: Low-profile vertical plug ideal for compact, parallel board stacking.
- Surface Mount Technology: SMT configuration enables automated, high-precision assembly.
- Gold Flash Plating: Copper alloy contacts ensure optimal signal integrity and corrosion resistance.
- UL 94 V-0 Rated Insulator: Flame-retardant, high-temperature thermoplastic guarantees operational safety.
- Industrial Durability: Performs consistently across a wide temperature range from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PEC-XX-G-585-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5.85mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch PCB SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
