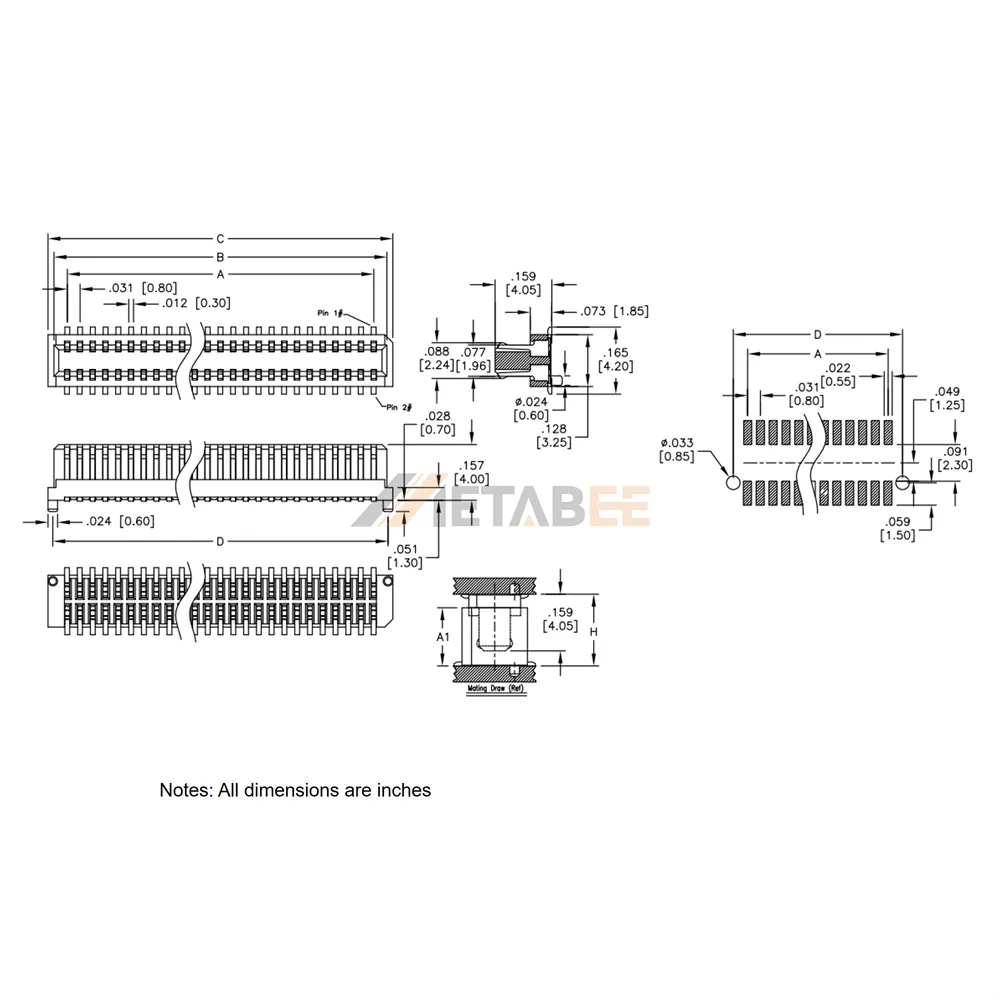

0.8mm Pitch PCB Board to Board Male Connector, SMT, 4.05mm Height
Introduction:
This 0.8mm Pitch PCB Board-to-Board Male Connector, designed for Surface Mount Technology (SMT), offers a compact and robust solution for high-density interconnections. With a precise 0.8mm centerline pitch and a low profile of 4.05mm height, this connector is engineered to optimize space on your Printed Circuit Board (PCB) while ensuring stable and reliable electrical performance. Its vertical mounting orientation and surface mount design facilitate streamlined assembly processes for diverse electronic applications.
Constructed for demanding environments, this dual-row male connector accommodates a versatile range of 10 to 100 positions, providing scalability for various design requirements. The contacts are fabricated from high-grade Copper Alloy, enhanced with Gold flash plating to ensure superior conductivity, corrosion resistance, and long-term signal integrity. An insulator crafted from Hi-temp thermoplastic guarantees excellent dielectric strength and thermal stability, crucial for operational reliability. Furthermore, the connector operates efficiently across a broad temperature range of -40℃ to +85℃ and holds a UL 94 V-0 flammability rating, affirming its safety and durability under critical conditions.
Key Features
- 0.8mm Pitch Design: Enables high-density PCB integration, conserving valuable board space.
- SMT Mounting: Facilitates automated assembly and efficient manufacturing processes.
- Dual Row Configuration: Offers increased contact density for enhanced signal routing.
- 10-100 Positions: Provides flexible connectivity options to meet diverse application needs.
- Copper Alloy Contacts with Gold Flash: Ensures optimal electrical conductivity and corrosion resistance.
- UL 94 V-0 Flammability Rated: Guarantees enhanced safety and compliance with stringent industry standards.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PN-XXX-G-355-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.05mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch PCB Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
