0.8mm Pitch PCB Board to Board Male Connector, SMT, 3.55mm Height
Introduction:
The 0.8mm Pitch PCB Board to Board Male Connector is designed for high-density PCB interconnection in compact electronic devices. Featuring a 3.55mm profile, dual-row configuration, and 10 to 100 positions, it provides flexible design options while maintaining reliable signal transmission. The vertical SMT mounting design simplifies automated assembly and helps optimize PCB space utilization.
Manufactured with copper alloy contacts and gold flash plating, this connector delivers excellent electrical conductivity, low contact resistance, and enhanced corrosion resistance for long-term performance. The high-temperature thermoplastic insulator with a UL 94 V-0 flammability rating ensures superior mechanical strength and safety in demanding applications. Operating reliably from -40°C to +85°C, it is suitable for industrial control, consumer electronics, communication equipment, and embedded systems.
Key Features
- 0.8mm pitch, male board-to-board connector
- Dual-row design with 10–100 positions
- Vertical surface mount (SMT) installation
- Copper alloy contacts with gold flash plating
- Hi-temp thermoplastic, UL 94 V-0 rated
- Operating temperature: -40°C to +85°C

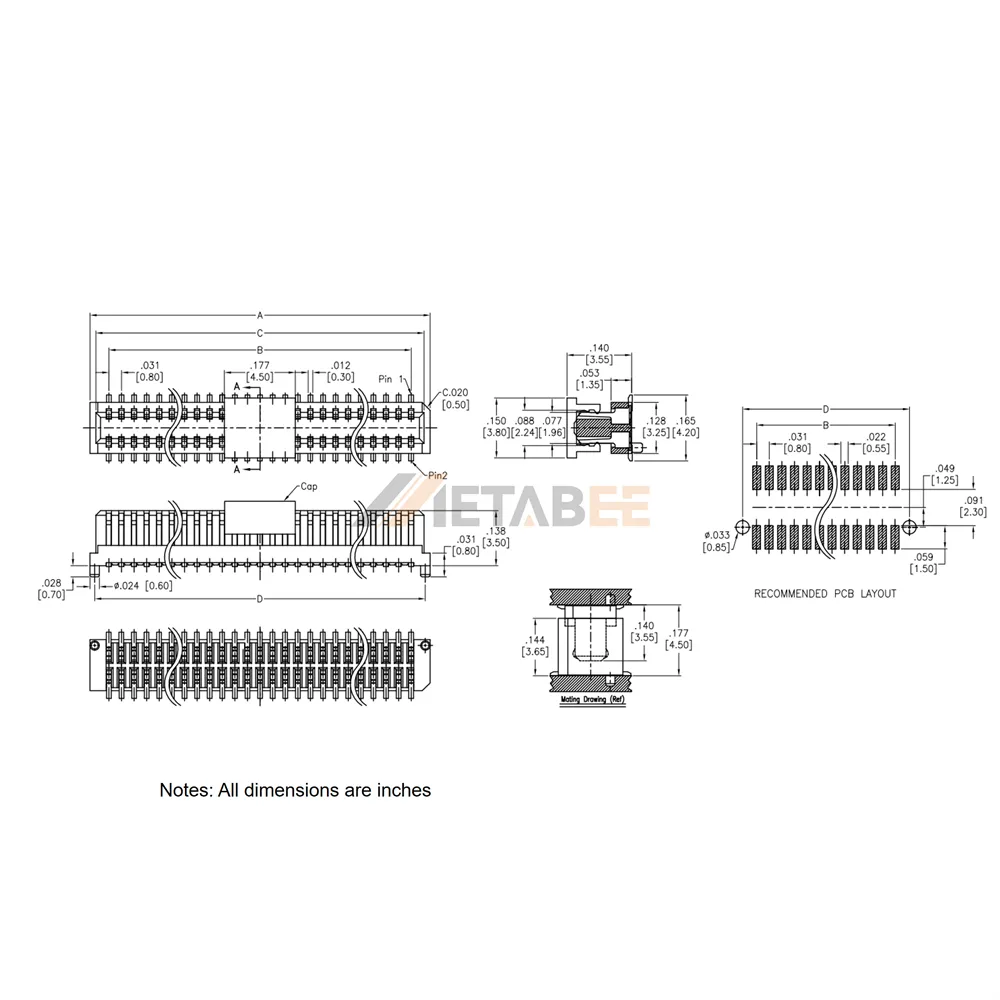

Main Specifications:
General Information:
| Product No.: | YC-BB8-PN-XXX-G-355-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 3.55mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch PCB Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
