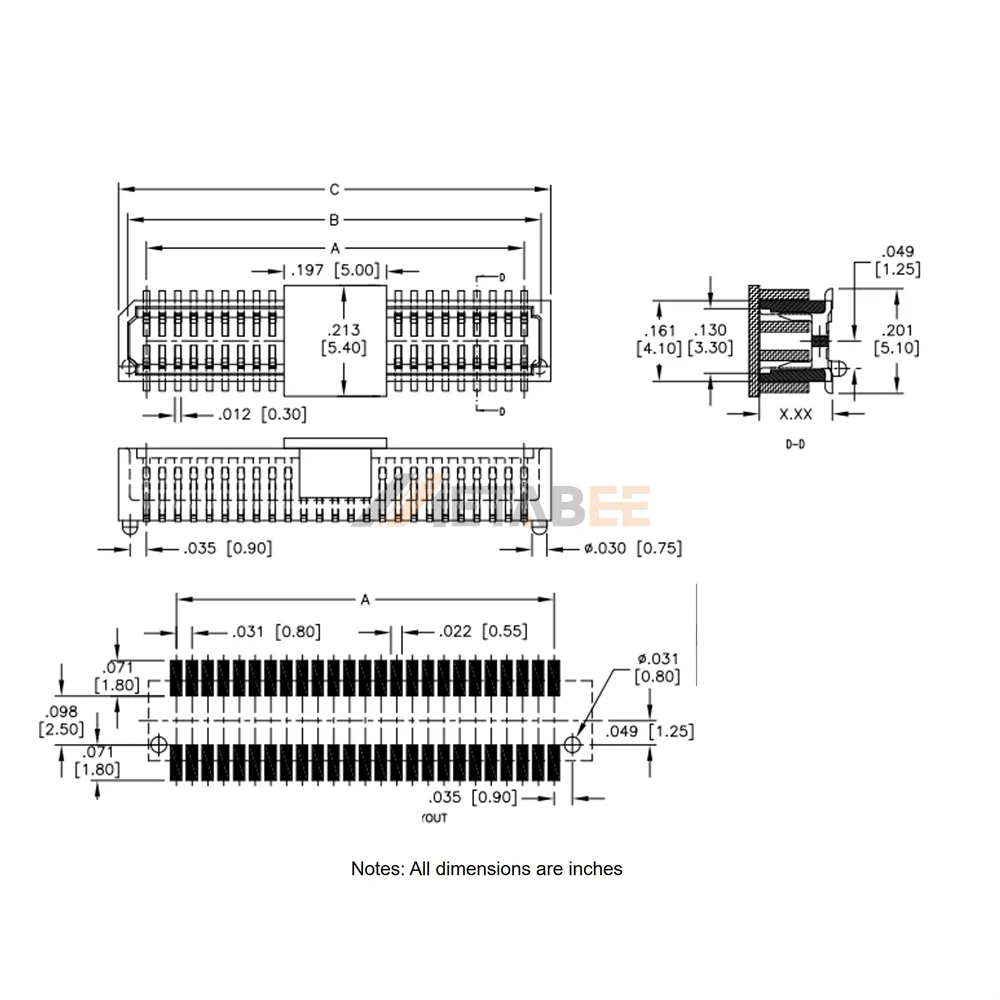

0.8mm Pitch Low Profile Board to Board Connector, Socket, Vertical SMT
Introduction:
Engineered for space-constrained applications, this 0.8mm Pitch Low Profile Board to Board Connector delivers reliable high-density interconnections in a compact vertical SMT package. Designed as a female (socket) configuration, this dual-row connector supports 10 to 100 positions, offering exceptional flexibility for various PCB stacking requirements. The vertical mounting orientation combined with surface mount technology ensures a secure, streamlined assembly process, making it ideal for industrial controls, telecommunications, and portable electronic devices where board real estate is at a premium.
Constructed with a high-temperature thermoplastic insulator and copper alloy contacts featuring a gold flash plating, this connector guarantees excellent conductivity and corrosion resistance. It operates flawlessly across a wide temperature range of -40℃ to +85℃, ensuring stable performance in harsh environments. Furthermore, the insulator material meets UL 94 V-0 flammability standards, providing critical fire safety protection. Whether you are designing compact wearable tech or dense server modules, this low-profile socket delivers the durability and signal integrity your project demands.
Key Features
- Fine Pitch: 0.8mm centerline spacing for high-density PCB layouts.
- Versatile Positions: Available in 10 to 100 positions (dual-row).
- Low Profile Vertical SMT: Space-saving design with reliable surface mount attachment.
- Durable Contacts: Copper alloy with gold flash plating for stable signal transmission.
- Wide Thermal Range: Operates from -40℃ to +85℃ for extreme environments.
- Safety Certified: UL 94 V-0 rated insulator for flame retardancy.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SL-XXX-G-X.XX-PP-HF-T/R | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Low Profile Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
