0.8mm Pitch High Speed Board to Board Connector, Socket, SMT
Introduction:
The 0.8mm pitch board to board connector is engineered for compact electronic systems requiring reliable signal transmission and high-density PCB stacking. Featuring a 0.8mm pitch, dual-row configuration, and 10–100 positions, this vertical female connector maximizes board space while providing stable electrical and mechanical performance. Its SMT design enables automated assembly and supports modern high-density PCB layouts.
Manufactured with copper alloy contacts and gold flash plating, the connector delivers excellent conductivity, low contact resistance, and enhanced corrosion resistance. The high-temperature thermoplastic insulator withstands lead-free reflow soldering, while the UL 94 V-0 flame-retardant housing improves product safety. Designed for operating temperatures from -40°C to +85°C, this connector is well suited for industrial controls, communication equipment, consumer electronics, medical devices, and embedded systems where dependable board-to-board connections are essential. High-speed board-to-board connectors are widely used to support compact, high-density electronic designs with reliable signal integrity.
Key Features
- 0.8mm pitch high-density SMT board-to-board socket
- Female connector with dual-row, vertical orientation
- Available in 10–100 positions for flexible designs
- Copper alloy contacts with gold flash plating
- High-temperature thermoplastic housing, UL 94 V-0 rated
- Operating temperature: -40°C to +85°C

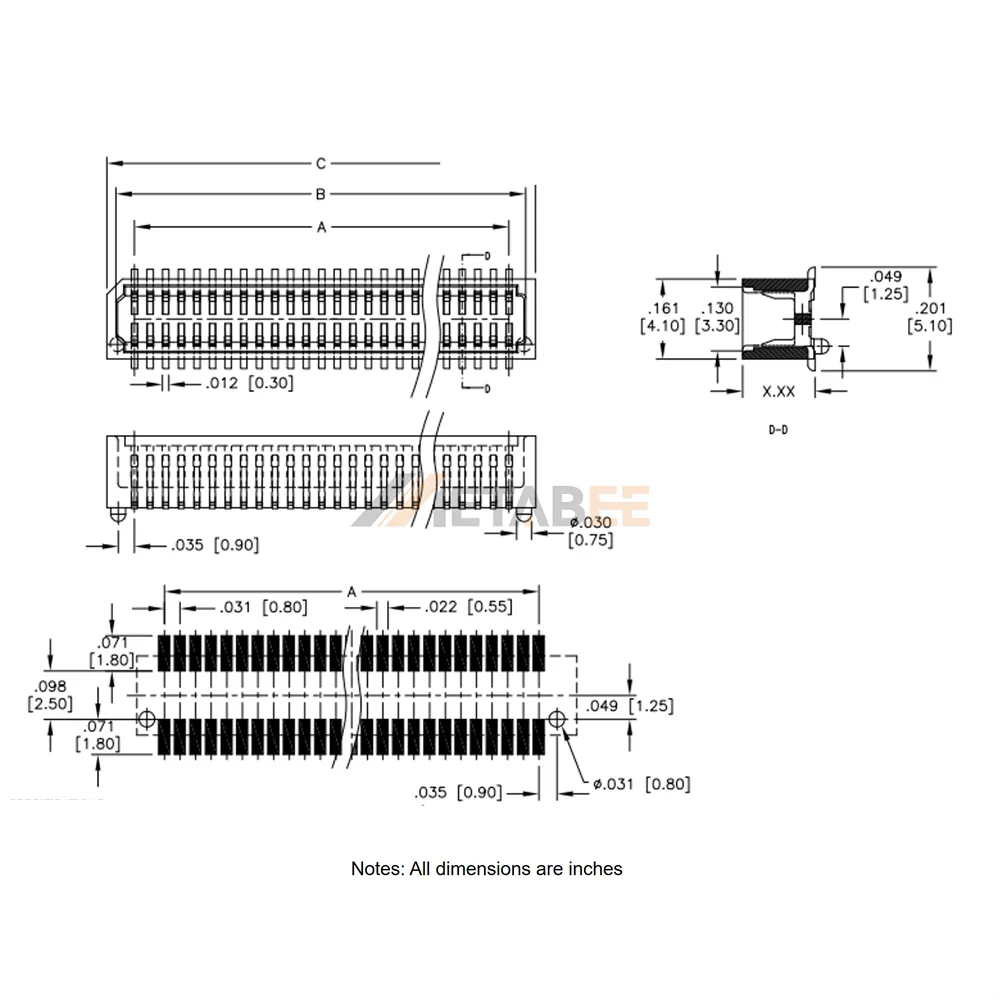

Main Specifications:
General Information:
| Product No.: | YC-BB8-SL-XXX-G-X.XX-HF-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch High Speed Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
