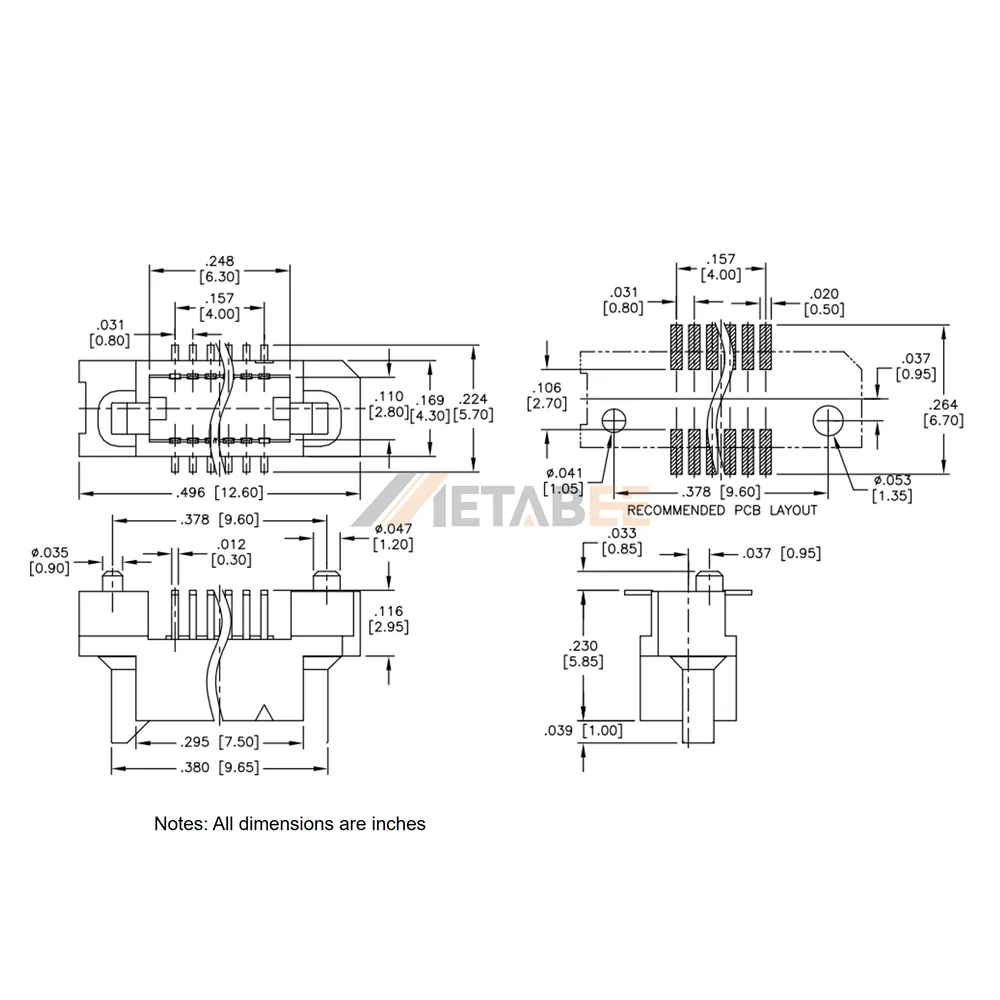

0.8mm Pitch High-Speed Board to Board Connector, Plug, SMT, 3.55mm Height
Introduction:
Optimize your high-density PCB layouts with our premium 0.8mm pitch high-speed board-to-board connector plug. Featuring a vertical mounting orientation and surface mount (SMT) technology, this dual-row male connector delivers robust, space-saving connectivity with a low-profile 3.55mm mating height. Engineered for seamless high-speed data transmission, it ensures exceptional signal integrity in modern compact electronics.
Built for reliable performance in demanding environments, the connector features high-conductivity copper alloy contacts with premium gold flash plating to prevent corrosion and maintain low contact resistance. Encased in a high-temperature thermoplastic insulator, it boasts a UL 94 V-0 flammability rating and operates flawlessly across a wide temperature range from -40°C to +85°C, making it an ideal choice for industrial, automotive, and consumer electronics applications.
Key Features
- High-Speed Performance: Designed for efficient, high-density signal integrity.
- Ultra-Compact Design: Featuring a fine 0.8mm pitch and low 3.55mm height.
- Premium Materials: Gold-flash plated copper alloy contacts maximize conductivity.
- Robust Insulator: High-temperature thermoplastic housing with UL 94 V-0 flame resistance.
- Secure SMT Mounting: Dual-row vertical plug optimized for surface-mount assembly.
- Wide Temp Range: Reliable operation under extreme temperatures (-40°C to +85°C).
Main Specifications:
General Information:
| Product No.: | YC-BB8-PL-XXX-G-3.55-HF-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 3.55mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch High-Speed Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
