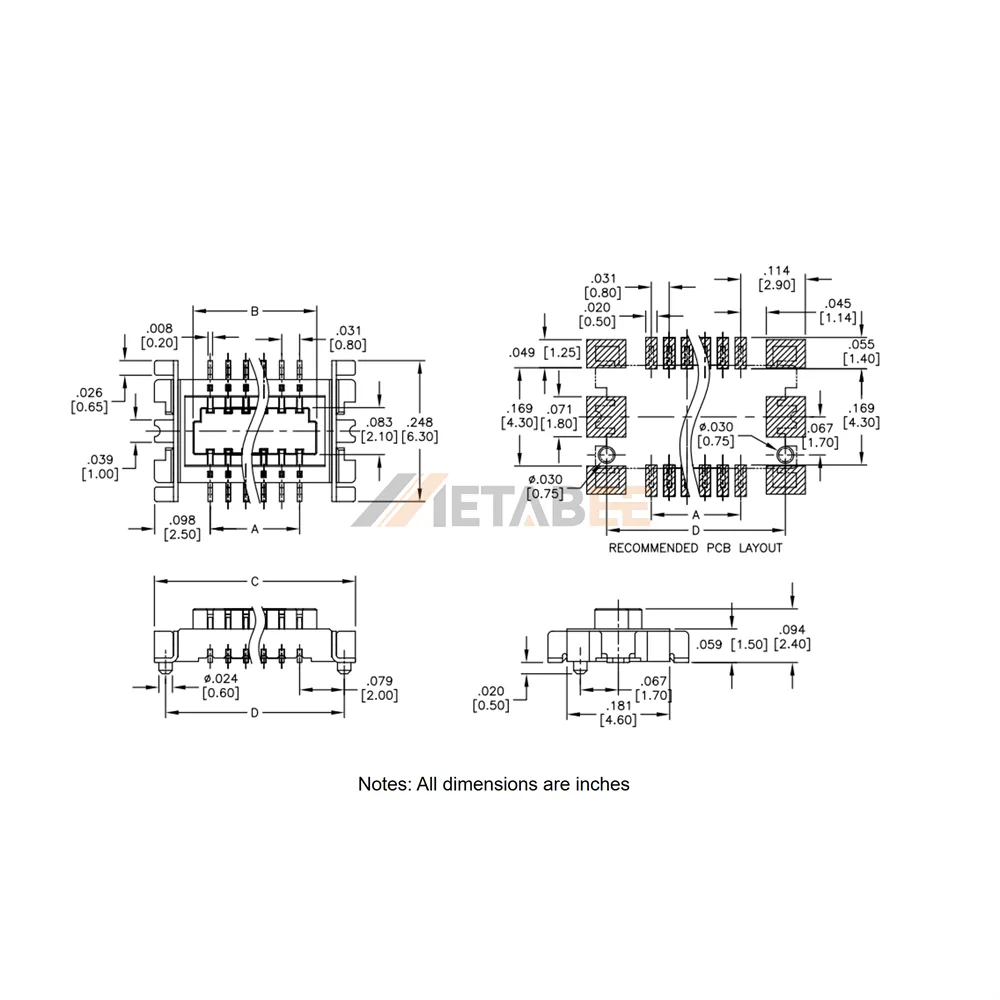

0.8mm Pitch Board to Board Receptable, Stacking, SMT
Introduction:
Elevate your electronic designs with our advanced 0.8mm Pitch Board to Board Receptacle, engineered for high-density stacking applications. This surface-mount technology (SMT) connector provides a robust and reliable female interface for critical board-to-board interconnections. Its compact dual-row design, offering 10 to 30 positions, optimizes PCB real estate while maintaining exceptional signal integrity in a vertical orientation.
Constructed from a durable copper alloy with a gold flash contact plating, this receptacle ensures superior electrical conductivity and corrosion resistance. The high-temperature thermoplastic insulator is rated UL 94 V-0 for flammability, guaranteeing operational safety across a broad operating temperature range of -40℃ to +85℃. This combination of materials and design provides consistent performance in demanding environments.
Designed for precision and endurance, this connector is ideal for compact electronic devices requiring reliable and space-efficient stacking solutions. It supports a wide array of industrial and consumer electronics where performance and miniaturization are paramount.
Key Features
- 0.8mm Pitch: Ultra-fine pitch for high-density board-to-board stacking.
- Female Gender: Ensures secure and precise mating.
- Dual-Row Configuration: Optimizes space with 10-30 positions.
- SMT & Vertical Mount: Facilitates automated assembly and efficient board layout.
- Gold Flash Plating: Enhances electrical performance and durability.
- UL 94 V-0 Rated Insulator: Provides critical flammability safety.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SEA-XX-G-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-30 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Receptable:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
- Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of board to board connectors.
