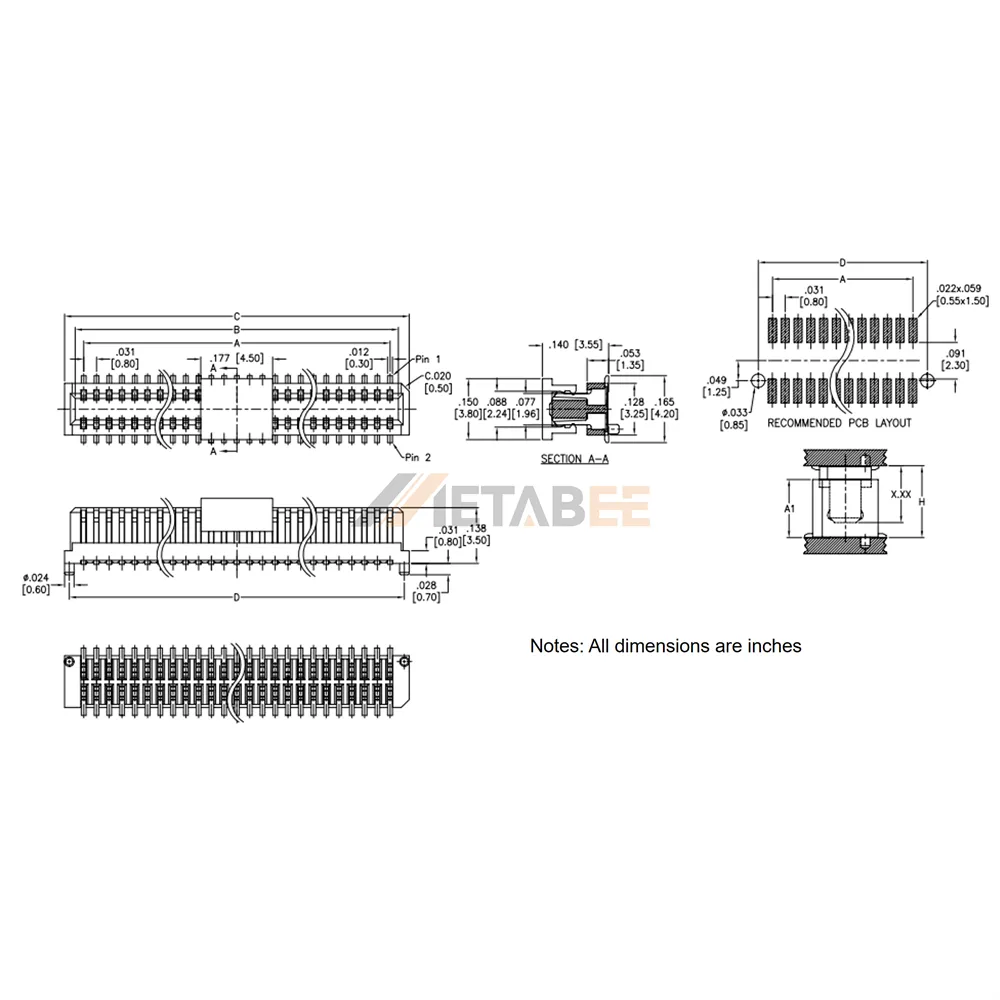

0.8mm Pitch Board to Board Plug, Surface Mount, Vertical
Introduction:
Maximize your PCB layout efficiency with this high-performance 0.8mm Pitch Board-to-Board Male Plug. Engineered for high-density, vertical surface mount (SMT) applications, this dual-row connector provides a reliable and space-saving solution for modern, compact electronic designs. Available in positions ranging from 10 to 100, it offers exceptional versatility to meet diverse architectural requirements while ensuring seamless signal integrity.
Built for demanding environments, the connector features premium copper alloy contacts with gold flash plating to ensure superior conductivity and wear resistance. Housed in a UL 94 V-0 rated high-temperature thermoplastic insulator, it delivers excellent thermal stability and reliable operation across a wide temperature spectrum from -40°C to +85°C.
Key Features
- Ultra-Compact Design: 0.8mm pitch ideal for high-density applications.
- Versatile Configurations: Available from 10 to 100 positions in a dual-row layout.
- Secure SMT Mounting: Vertical, surface-mount orientation for streamlined PCB assembly.
- Premium Connectivity: Copper alloy contacts with gold flash plating prevent oxidation.
- Rugged Materials: High-temperature thermoplastic housing with UL 94 V-0 flammability rating.
- Industrial Durability: Reliable performance across a -40°C to +85°C operating range.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PN-XXX-G-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
