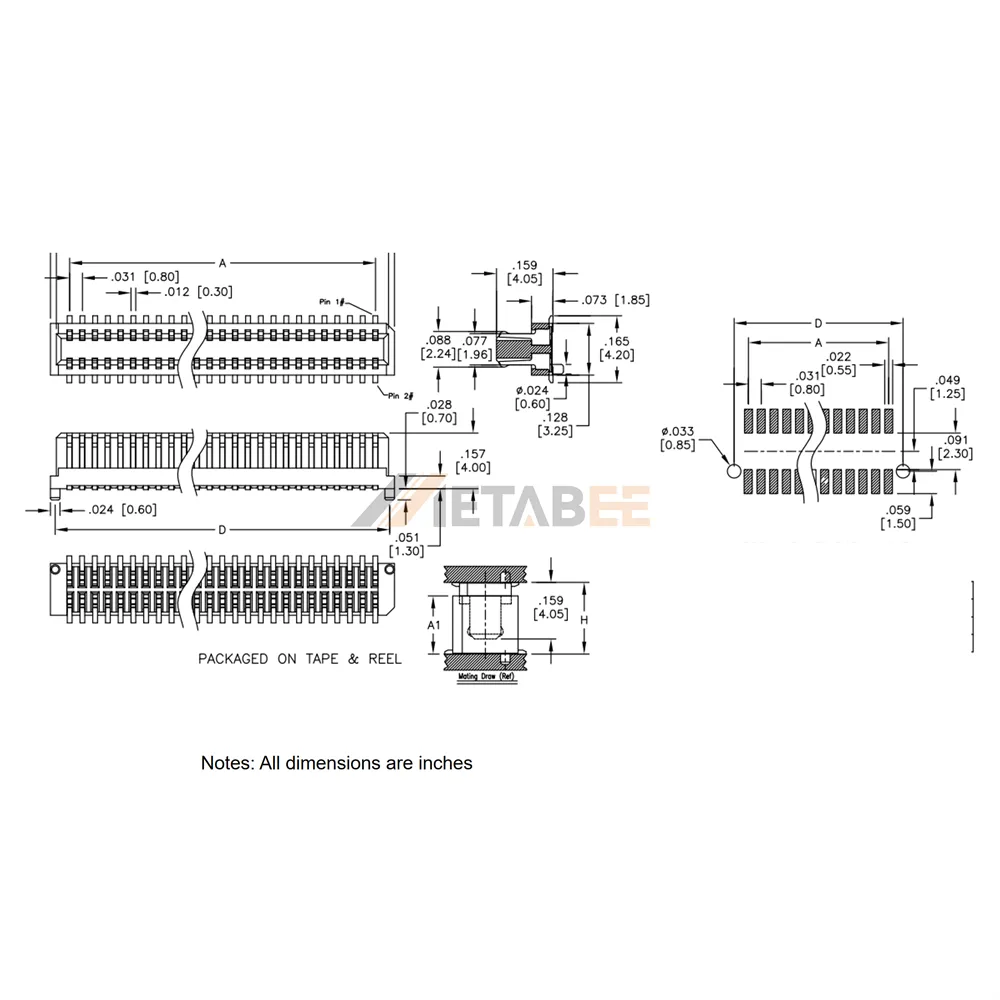

0.8mm Pitch Board to Board Plug, SMT, Vertical, 4.05mm Height
Introduction:
The 0.8mm Pitch Board to Board Plug is a high-density male connector engineered for reliable PCB-to-PCB connections in space-constrained electronic devices. With a 4.05mm mating height, 0.8mm pitch, and dual-row configuration, it is available in 10 to 100 positions to accommodate a wide range of board layouts. Its vertical surface mount (SMT) design supports automated assembly while maximizing PCB space efficiency.
Constructed with copper alloy contacts and gold flash plating, this connector provides stable electrical performance, low contact resistance, and improved corrosion resistance. The high-temperature thermoplastic housing offers excellent thermal durability, while the UL 94 V-0 flammability rating enhances product safety. Designed to operate reliably in temperatures from -40°C to +85°C, it is well suited for industrial electronics, consumer devices, communication equipment, and embedded applications.
Key Features
- 0.8mm pitch male board-to-board plug
- Dual-row design with 10–100 positions
- Vertical surface mount (SMT) configuration
- Copper alloy contacts with gold flash plating
- Hi-temp thermoplastic insulator, UL 94 V-0 rated
- Operating temperature: -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB8-PN-XXX-G-405-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.05mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
