0.8mm Pitch Board to Board & Mezzanine Male Connector, SMT, 3.55mm Height

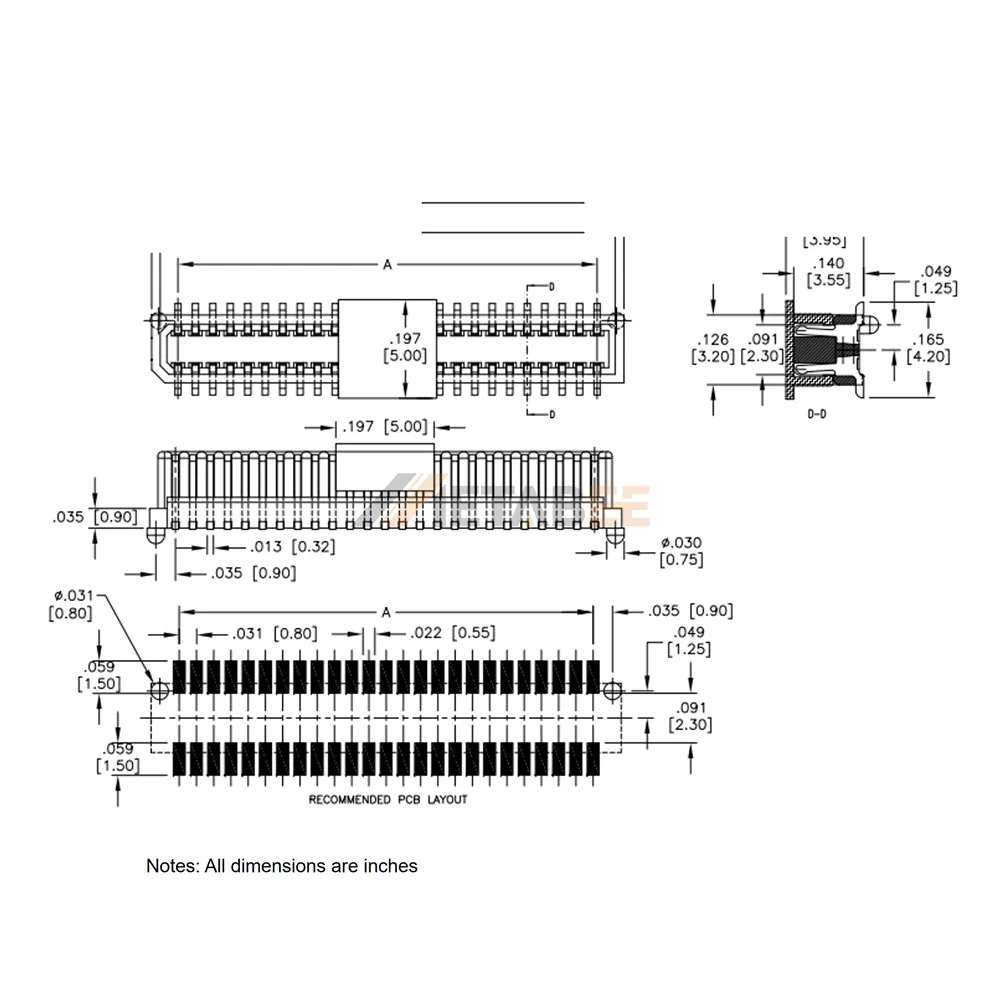

Introduction:
Designed for high-density applications, this 0.8mm pitch board-to-board and mezzanine male connector offers a compact 3.55mm height, making it an ideal surface mount (SMT) solution for modern electronic designs. Its dual-row configuration supports a versatile range of 10 to 100 positions, providing flexible connectivity for various application requirements. The vertical mounting orientation further aids in space optimization on your PCB.
Constructed for robust performance, the connector features high-quality Copper Alloy contacts with a durable Gold flash plating, ensuring excellent electrical conductivity and corrosion resistance. The insulator is made from a high-temperature thermoplastic, enhancing the connector’s reliability and stability under demanding conditions. With an operating temperature range of -40℃ to +85℃ and a UL 94 V-0 flammability rating, this connector guarantees safe and consistent operation in diverse environments.
Key Features
- 0.8mm Pitch: Ultra-compact design for high-density PCBs.
- Dual Row & SMT: Efficient surface mount with dual-row versatility.
- 3.55mm Height: Low profile, perfect for space-constrained designs.
- Gold Flash Plating: Ensures reliable contact and corrosion resistance.
- Hi-Temp Thermoplastic: Enhanced durability and stability in harsh conditions.
- Wide Temperature Range: Operates reliably from -40℃ to +85℃.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PL-XXX-G-3.55-PP-HF-T/R | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 3.55mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board & Mezzanine Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
