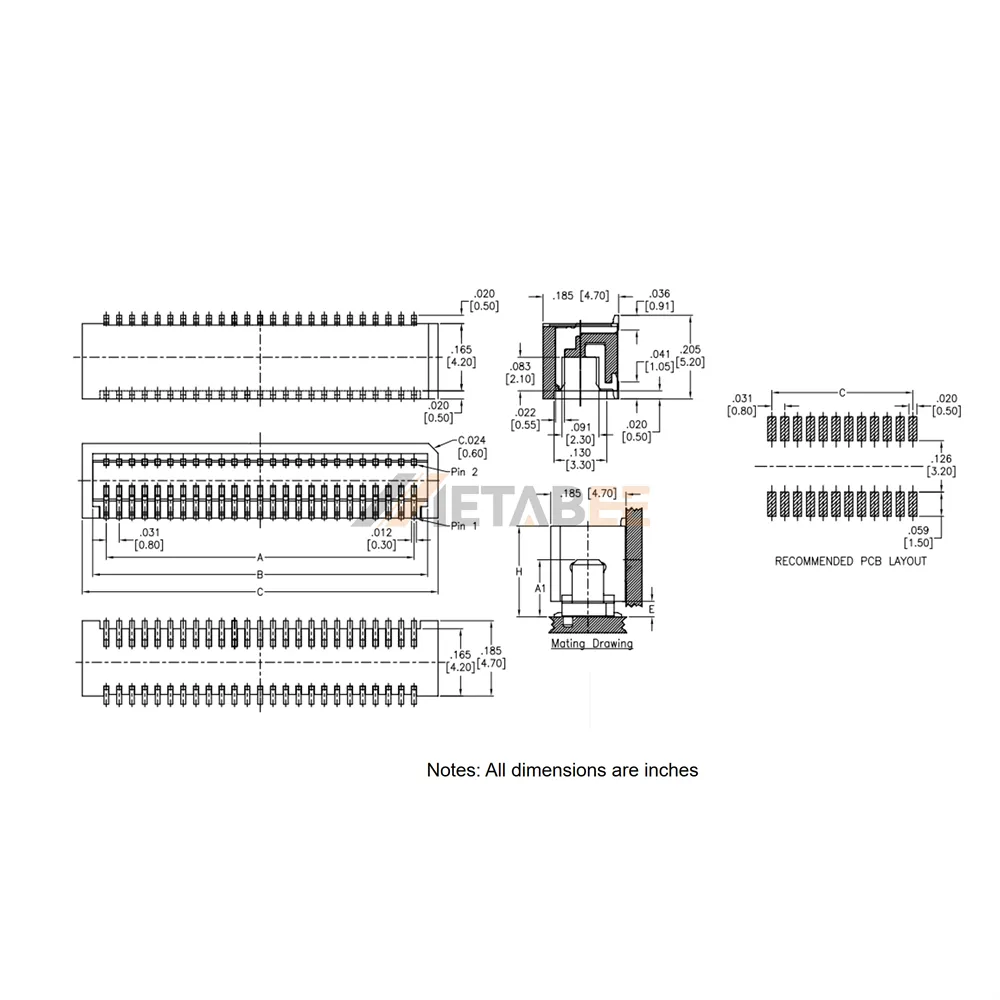

0.8mm Pitch Board to Board Female Connector, SMT, Right Angle, 4.7mm Height
Introduction:
This 0.8mm pitch right-angle female board-to-board connector features a dual-row structure and a 4.7mm stack height, offering flexible position options from 10 to 100 positions. Designed for surface mount installation, it enables space-saving right-angle PCB interconnection, ideal for compact electronic assemblies and high-density board layout requirements.
Manufactured with high-quality copper alloy contacts and gold flash plating, the connector provides reliable electrical conductivity and excellent corrosion resistance. Adopting high-temperature thermoplastic insulator material, it supports stable operation within -40℃ to +85℃ temperature range and complies with UL 94 V-0 flammability standards, ensuring superior safety and durability for long-term industrial and commercial electronic applications.
Key Features
- 0.8mm pitch dual-row compact structure
- 10–100 customizable pin positions
- Right-angle SMT surface mount design
- Copper alloy contacts with gold flash plating
- Wide -40℃ to +85℃ operating temperature
- UL 94 V-0 high flame retardant performance
Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-4.70-RA-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.7mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
</tr
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
