0.8mm Pitch Board to Board Female Connector, SMT, 12.35mm Stack Height
Introduction:
Designed for high-density electronic applications, this 0.8mm Pitch Board to Board Female Connector offers a compact and reliable solution for vertical board stacking. Featuring a dual-row configuration and a flexible range of 20 to 160 positions, it provides versatile connectivity for various circuit designs. The surface mount (SMT) type, combined with a precise 12.35mm stack height, ensures efficient use of PCB space and straightforward assembly in automated production environments.
Constructed for robust performance, the connector utilizes high-quality Copper Alloy for its contacts, enhanced with a Gold flash plating to ensure excellent electrical conductivity and corrosion resistance. The insulator is made from a Hi-temp thermoplastic, providing superior thermal stability and durability. With an operating temperature range from -40℃ to +85℃ and a UL 94 V-0 flammability rating, this connector guarantees reliable operation even in challenging conditions.
Key Features
- 0.8mm Pitch: Ultra-fine pitch for high-density PCB designs.
- Female Gender & Dual Row: Versatile and robust connection.
- 20-160 Positions: Wide range of connectivity options.
- Vertical SMT Mounting: Space-saving and efficient assembly.
- Gold Flash Contacts: Ensures reliable electrical performance.
- Wide Temperature Range: Operates dependably from -40℃ to +85℃.

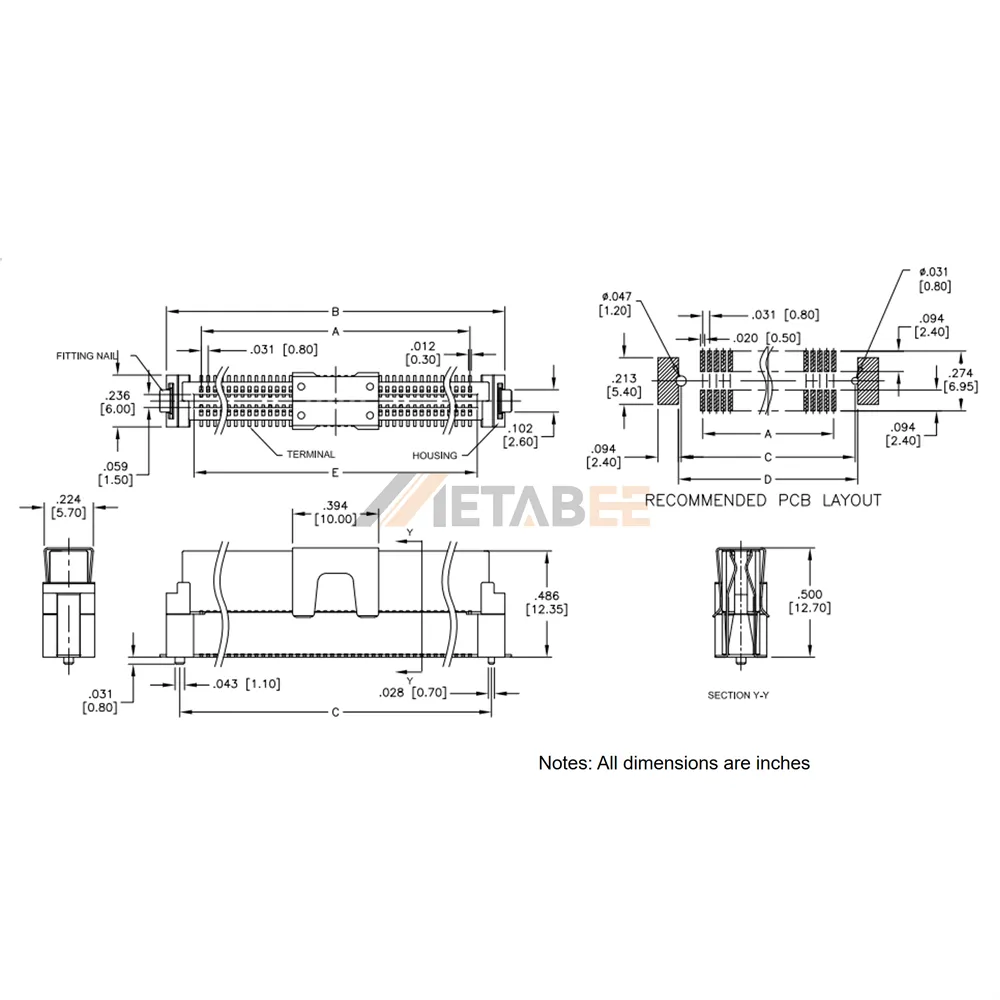

Main Specifications:
General Information:
| Product No.: | YC-BB8-SA-XXX-G-12.35-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-160 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 12.35mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
