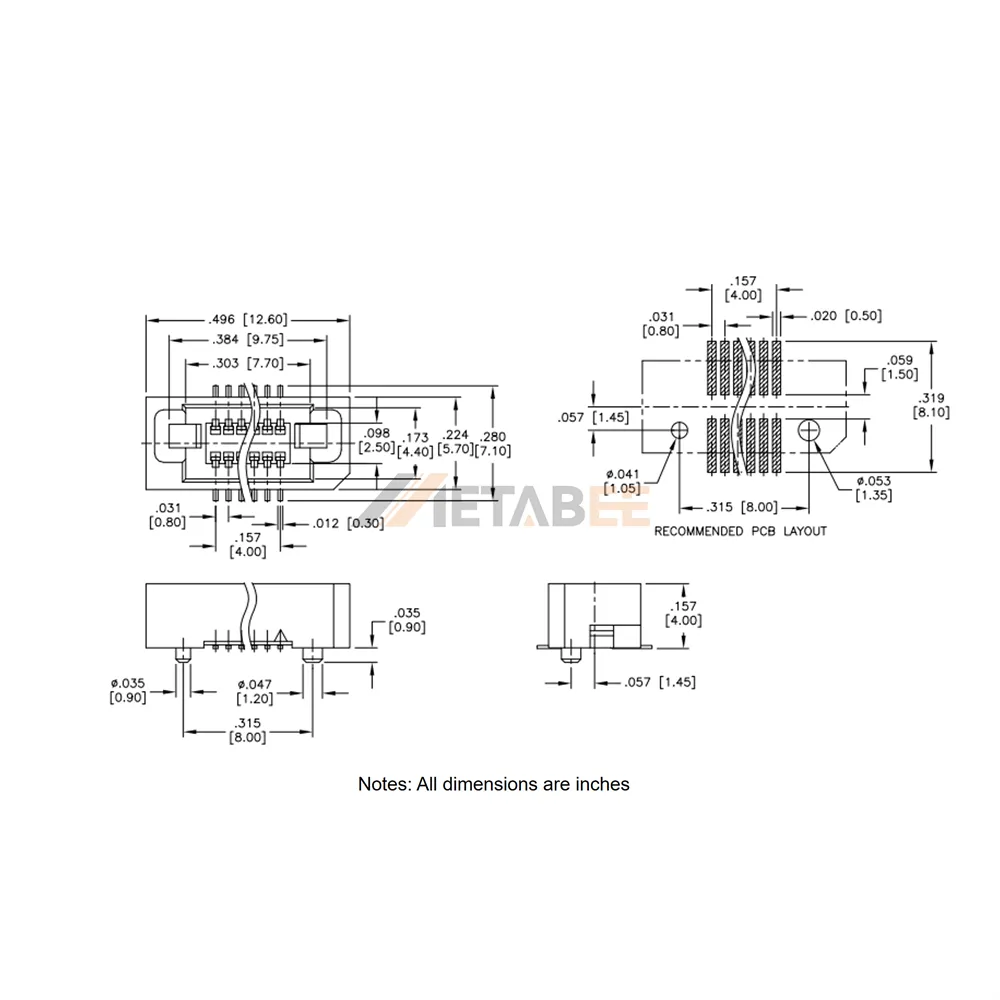

0.8mm Pitch 12 Positions Board to Board Female Connector, SMT, 4mm Stack Height
Introduction:
This 0.8mm pitch dual-row female SMT connector delivers a compact 12-position interface for vertical board-to-board stacking at 4.0mm height. Designed for precision parallel PCB interconnection, the socket features gold-flashed copper alloy contacts that ensure stable low-resistance signal paths across the -40°C to +85°C operating range. The high-temperature thermoplastic insulator supports lead-free reflow processing while maintaining UL 94 V-0 flammability compliance for safety-critical applications.
Surface-mount terminations provide reliable solder joint coplanarity, enabling defect-free automated assembly. The vertical orientation conserves board real estate, making this 12-position connector ideal for space-limited designs such as handheld devices, sensor modules, and portable test equipment. Polarized housing geometry prevents reverse mating and protects contacts from mechanical overstress during insertion and extraction.
Key Features
- 0.8 mm pitch, dual-row female socket with 12 positions
- Vertical SMT configuration, 4.0 mm stacking height
- Gold-flashed copper alloy contacts for corrosion protection
- Hi-temp thermoplastic insulator rated UL 94 V-0
- Operating temperature: -40°C to +85°C
- Polarized housing for secure, error-proof mating
Main Specifications:
General Information:
| Product No.: | YC-BB8-SEC-12-G-400-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 12 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.00mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch 12 Positions Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
