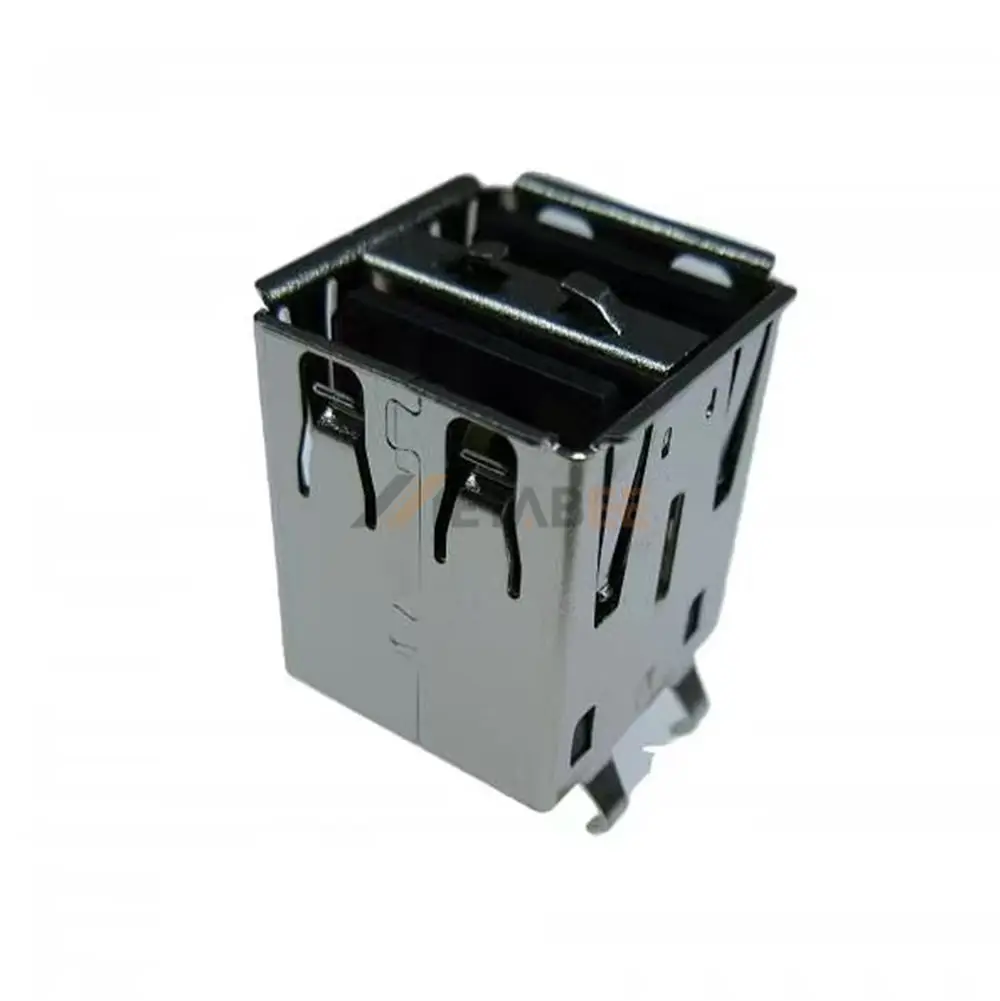

Vertical USB-A 2.0 Jack, 8 Pin, Dual Port, Thru-Hole
Introduction:
Maximize your PCB efficiency with our high-performance vertical dual-port USB 2.0 Type A connector. This through-hole receptacle is engineered for durability and high-speed data integrity, featuring a space-saving stacked design that provides two independent USB ports in a single vertical footprint. Built with a robust Stainless Steel shell and high-grade Nickel plating, it offers superior shielding and corrosion resistance for demanding industrial and consumer electronics.
Designed for seamless integration, this connector utilizes a right-angle mounting orientation with PCB mount technology to ensure a secure and stable mechanical connection. The internal contacts are crafted from premium Phosphor Bronze with Gold plating, optimizing electrical conductivity and ensuring long-term reliability even under heavy usage. With a wide operating temperature range from -40°C to +85°C, it is ideal for everything from office peripherals to ruggedized hardware.
Key Features
- Dual-Port Stacked Design: Provides two USB Type-A ports in a vertical, space-efficient 8-pin configuration.
- Premium Contact Plating: Gold-plated Phosphor Bronze contacts ensure stable data transmission and minimal signal loss.
- Enhanced Durability: Stainless Steel shell with Nickel plating offers excellent EMI/RFI shielding.
- Industrial Grade Performance: Rated for a wide temperature range of -40°C to +85°C.
- Secure PCB Mounting: Thru-hole, right-angle orientation provides high mechanical retention and stability.
- Safety Certified: Features a UL94V-0 flame retardant rating with a 1.5A current and 250VAC voltage capacity.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-D-VT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 8 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 250VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB-A 2.0 Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
