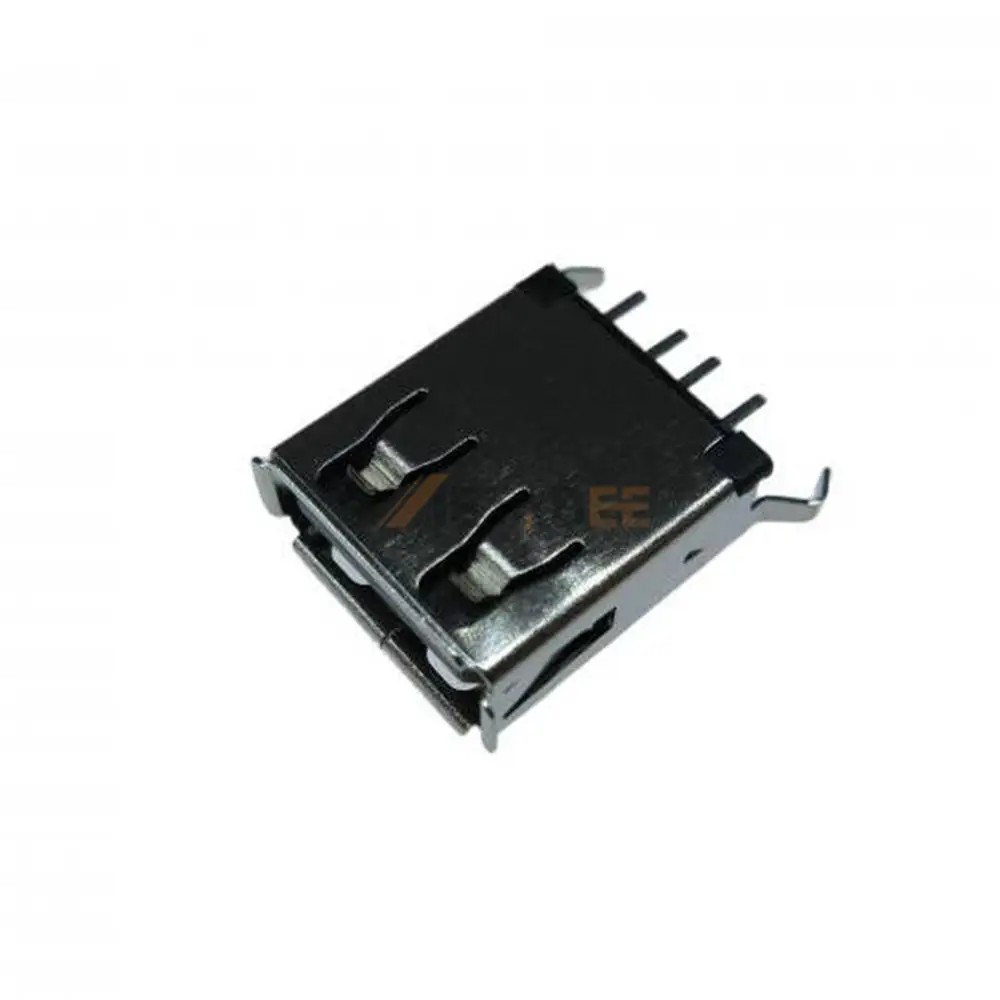

Vertical USB 2.0 Female Connector, Type A, 4 Pin, PCB Thru-Hole
Introduction:
The vertical USB 2.0 female connector is a reliable interconnect solution designed for applications requiring a stable, space-saving mounting orientation. Engineered with a standard Type A interface and a single-port receptacle configuration, this connector enables secure USB 2.0 data transmission alongside dependable power delivery. Its vertical PCB thru-hole mounting design simplifies assembly while ensuring robust mechanical retention, making it an ideal choice for industrial equipment, embedded systems, and consumer electronics where durability and consistent performance are essential.
Constructed with a brass shell featuring a nickel-plated finish, this connector offers excellent corrosion resistance and structural integrity. The contacts are formed from brass with gold-plated surfaces, ensuring low contact resistance and enhanced signal reliability over repeated mating cycles. Rated at 1.5A and 30VAC, it supports standard USB power requirements. The housing meets UL94V-0 flammability standards, and with an operating temperature range of -40°C to +85°C, it performs reliably in harsh environments.
Key Features
- Vertical PCB Thru-Hole Mounting – Ensures stable mechanical attachment and simplifies automated assembly.
- Standard USB 2.0 Type A Interface – Single-port receptacle compatible with widely used USB cables.
- Durable Metal Construction – Brass shell with nickel plating and gold-plated brass contacts for corrosion resistance and reliable connectivity.
- Rated 1.5A / 30VAC – Suitable for typical USB power and signal applications.
- Wide Operating Temperature – Functions reliably from -40°C to +85°C.
- UL94V-0 Flammability Rating – Enhances safety in demanding environments.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-VT-WT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
