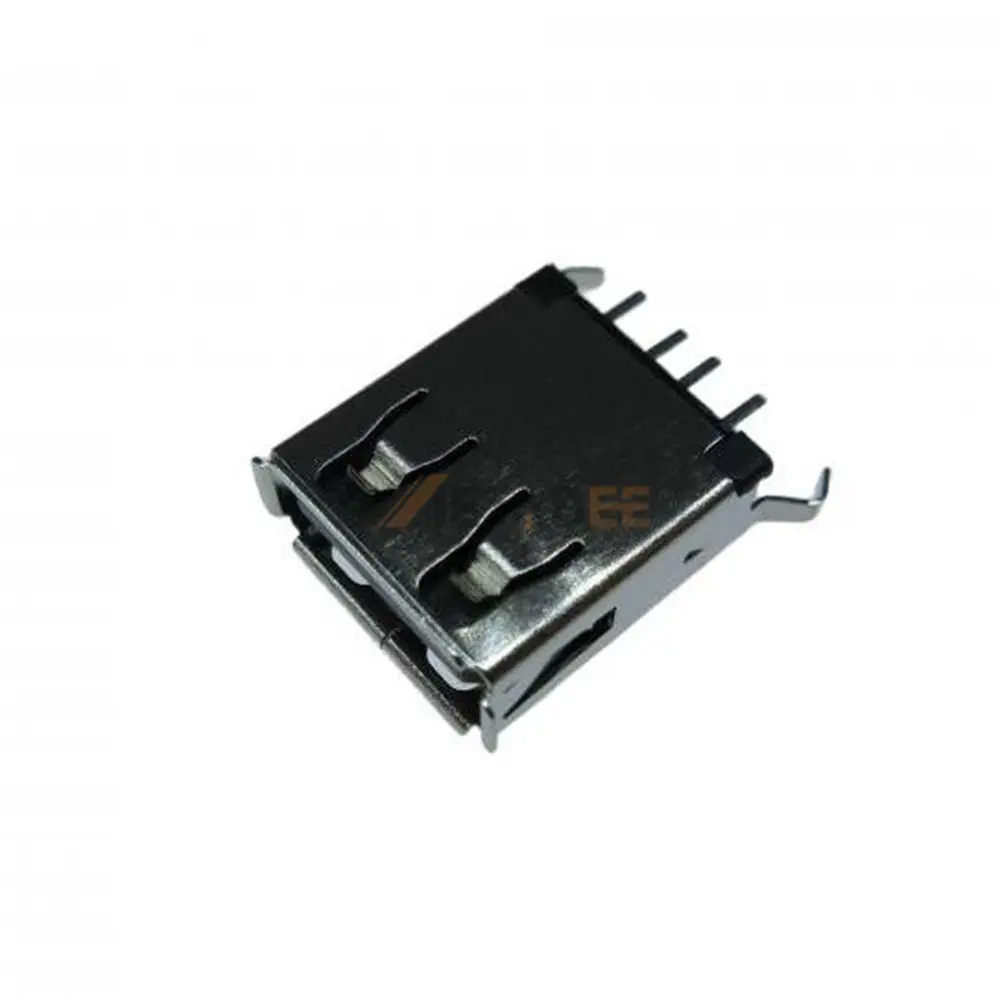

Vertical USB 2.0 Connector, Type A Receptacle, 4 Pin, PCB THM
Introduction:
The vertical USB 2.0 connector is a reliable and cost-effective solution for board-level USB connectivity in industrial and consumer electronics. Designed with a standard Type-A interface, this single-port connector supports USB 2.0 high-speed data transmission up to 480 Mbps, ensuring stable signal integrity and broad compatibility with legacy and modern devices . Its vertical orientation and through-hole PCB mounting (THM) provide enhanced mechanical strength, making it ideal for applications requiring secure and durable connections.
The connector features a brass shell with nickel plating, offering strong structural support and excellent resistance to corrosion. The gold-plated brass contacts ensure low contact resistance, improved conductivity, and long service life. With a rated current of 1.5A and 30VAC voltage, it supports enhanced power delivery beyond standard USB 2.0 baseline levels. Additionally, the UL94V-0 flame-retardant housing ensures high safety compliance, while the wide operating temperature range of -40°C to +85°C enables reliable performance in harsh environments.
Key Features
- Standard USB 2.0 Type-A, 4-pin receptacle, single port
- Vertical orientation, PCB through-hole mounting (THM) for secure retention
- Brass shell with nickel plating for durability and corrosion resistance
- Gold-plated brass contacts for superior conductivity and reliability
- Rated 1.5A current, 30VAC voltage for stable power delivery
- UL94V-0 rated, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-VTA | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
